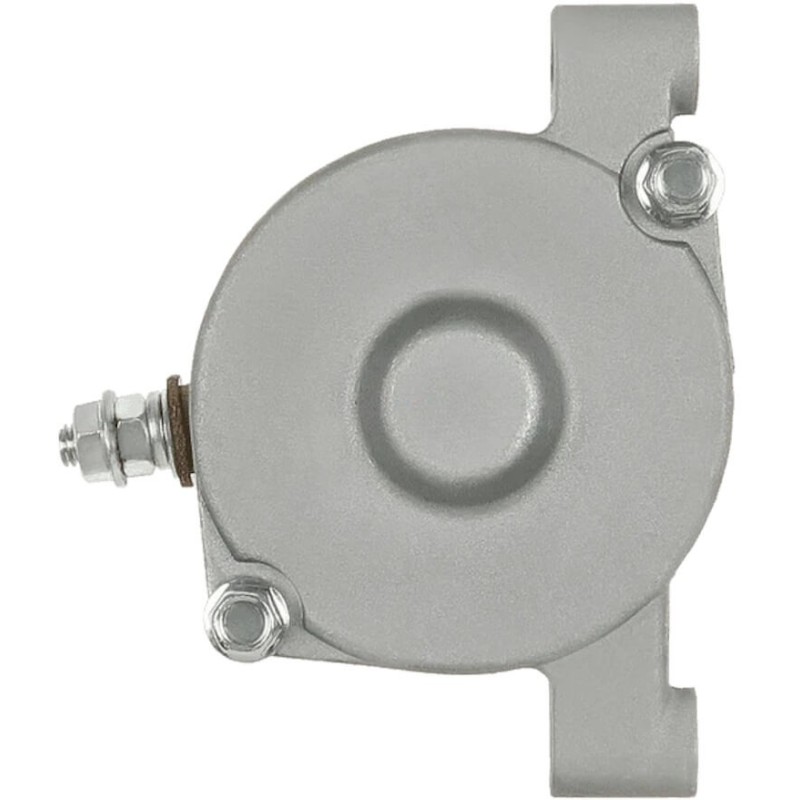

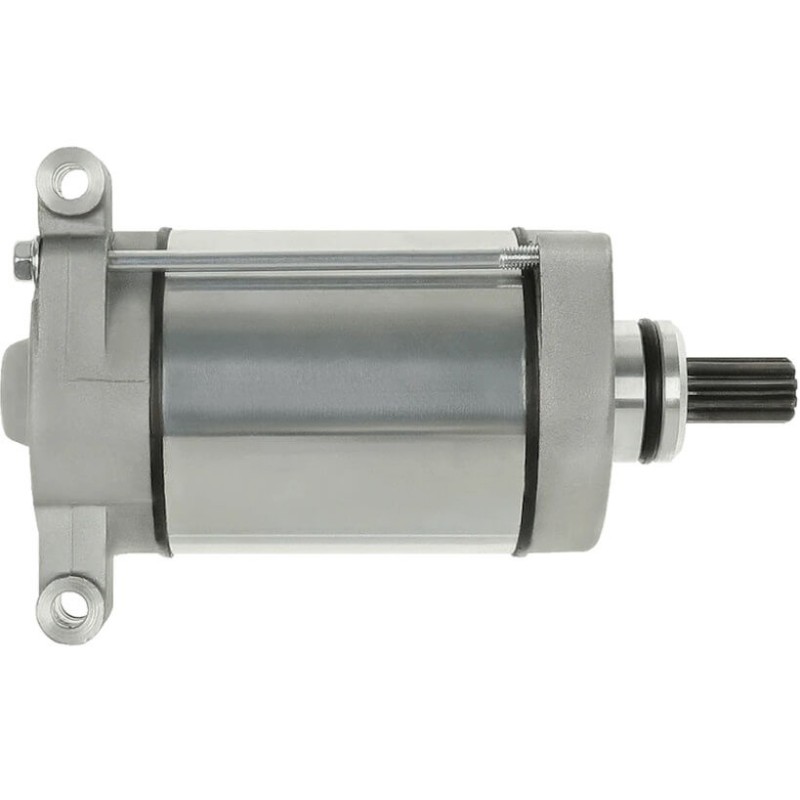

Starter replacing MITSUBA SM15 / YAMAHA 1S3-81890-00-00

Information:

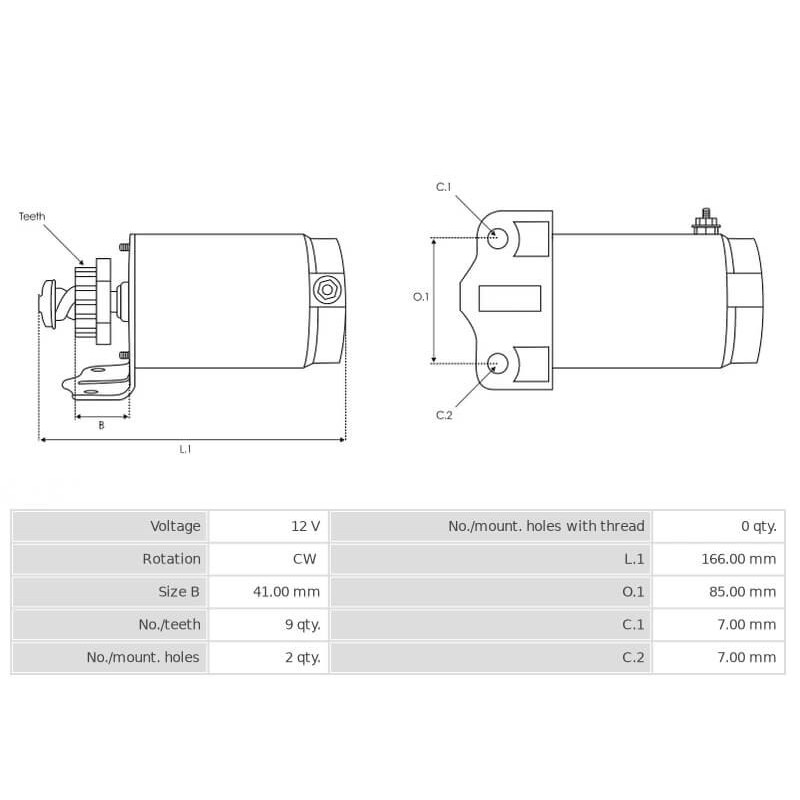

12 Volts - 9 teeth - total length 165 mm / diameter of the ring under the drive 30 mm / length of the drive 24 mm / distance between the two fixing points 84 mm

Replacing :

MITSUBA SM15
YAMAHA 1S3-81890-00-00

generic brand

Mounted on:

YAMAHA (2006-2015)

2008-07 YAMAHA YFM700 Grizzly FI 4x4 Auto
2008-07 YAMAHA YFM700 Grizzly FI 4x4 Auto EPS
2014-13 YAMAHA YFM700 Raptor
2015-06 YAMAHA YFM700R Raptor
2007 YAMAHA YFM700R Raptor GYTR Edition
2015-07 YAMAHA YFM700R Raptor SE
2015 YAMAHA YXC700DF Viking VI
2015 YAMAHA YXC700DH Viking VI Hunter
2015 YAMAHA YXC700PF Viking VI 700 EPS
2015 YAMAHA YXC700PH Viking VI EPS Hunter
2015 YAMAHA YXC700PS Viking EPS SE
2014 YAMAHA YXM700 Viking FI 4x4
2015-14 YAMAHA YXM700 Viking FI 4x4 EPS
2015-14 YAMAHA YXM700 Viking FI 4x4 EPS with Suntop
2015-14 YAMAHA YXM700 Viking FI 4x4 with Suntop
2015 YAMAHA YXM700DF Viking
2015-14 YAMAHA YXM700DH Viking Hunter
2015 YAMAHA YXM700PF Viking EPS
2015-14 YAMAHA YXM700PH Viking EPS Hunter
2015-14 YAMAHA YXM700PS Viking EPS SE
2013-08 YAMAHA YXR700F Rhino 700 FI
2009-08 YAMAHA YXR700F Rhino 700 FI Ducks Unlimited
2013-08 YAMAHA YXR700F Rhino 700 FI Special Edition
2013-08 YAMAHA YXR700F Rhino 700 FI Sport Edition

TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
