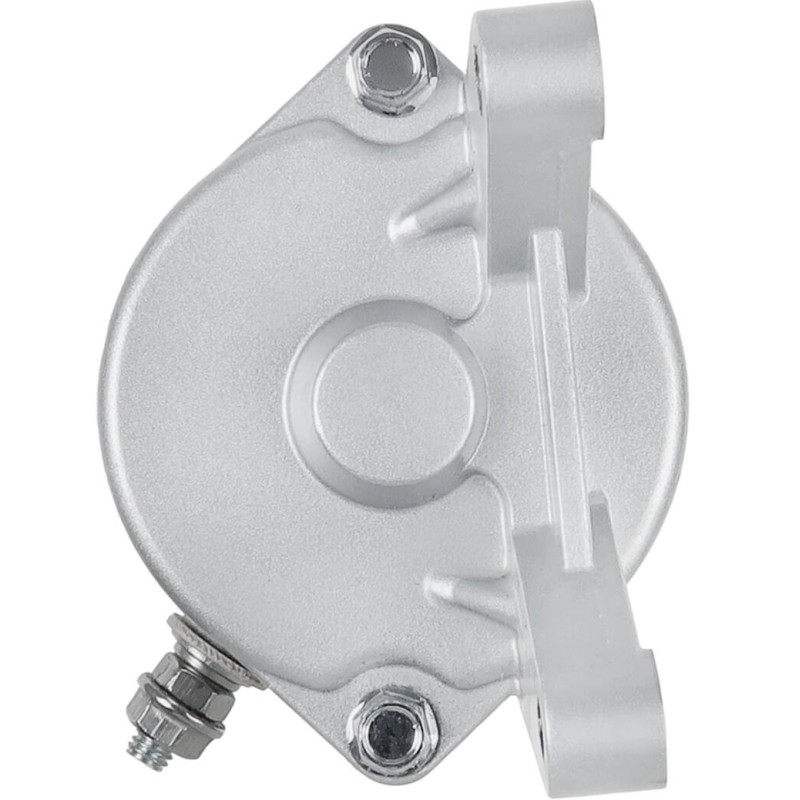

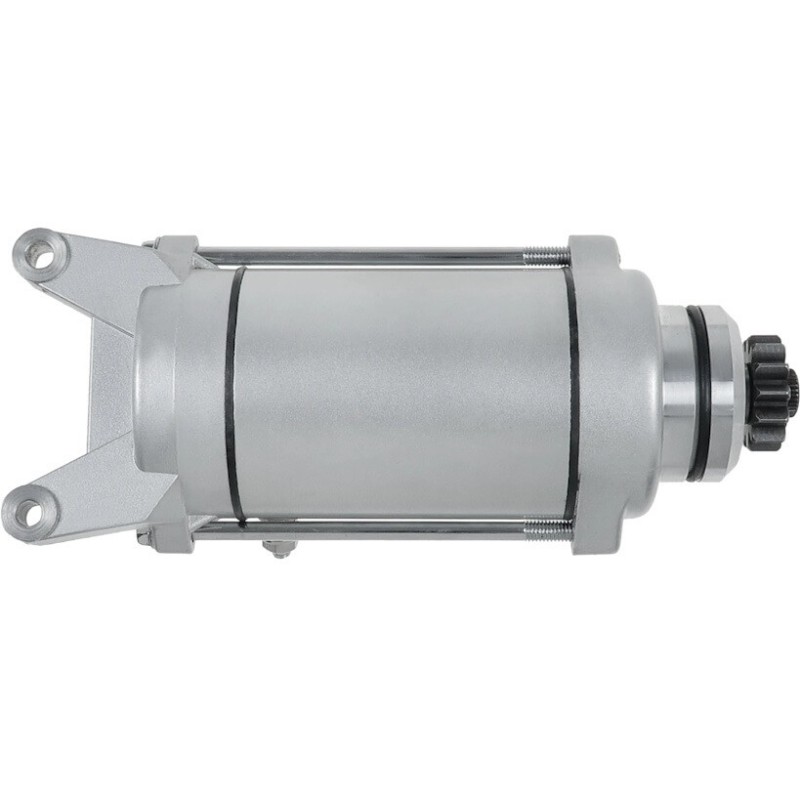

Starter replacing YAMAHA 5EL-81890-00-00 / 5EL-81890-01-00
Information:

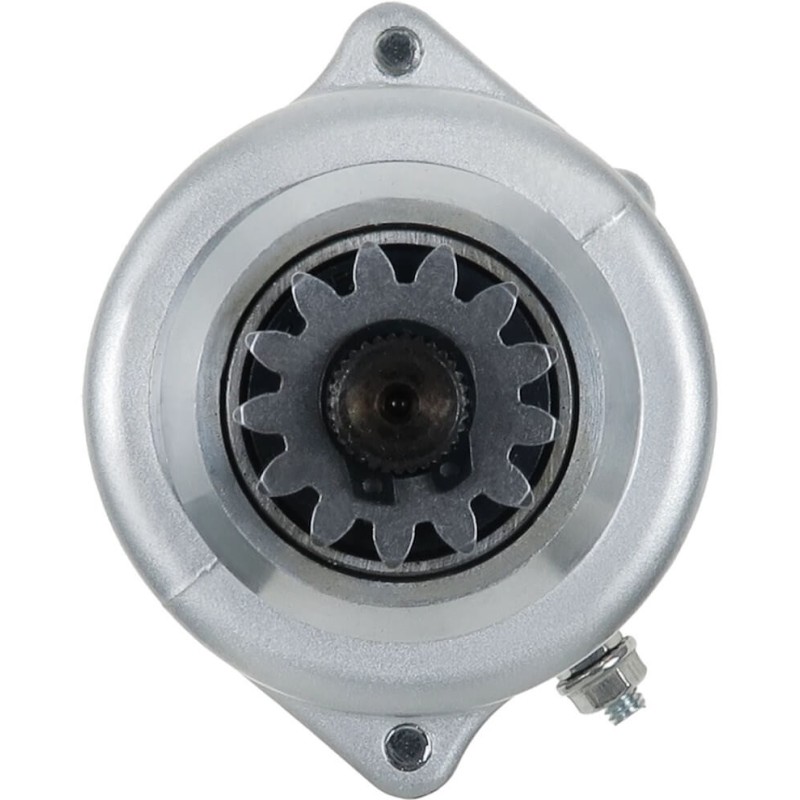

12 Volts - 13 teeth - 68 mm center-to-center distance between mounting holes - clockwise rotation
For Yamaha XV 1100 Virago (3LP) motorcycles from 01/1988 to 12/1999
XVS 1100 A Drag Star Classic (VP05) from 01/2000 to 12/2007
It is recommended to compare your starter motor part number with the one listed in the product description to ensure a correct match.
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
| 18748 | LESTER |
| 18748N | WAI |
| 5EL-81890-00-00 | YAMAHA |
| 5EL-81890-01-00 | YAMAHA |
| UD102719S | AS-PL |
| 400.089.132.200 | WAI |
| STR75453 | WOODAUTO |
| WOOSTR75453 | WOODAUTO |
| RAS41249 | DELCO |
| 242-06184 | DIXIE |
| 191-380 | PIC |
| 191-380A | PIC |
| 71-26-18748 | WILSON |
| 255533 | KUHNER |
| SMU0305 | ARROWHEAD |
| 108714 | FARCOM |

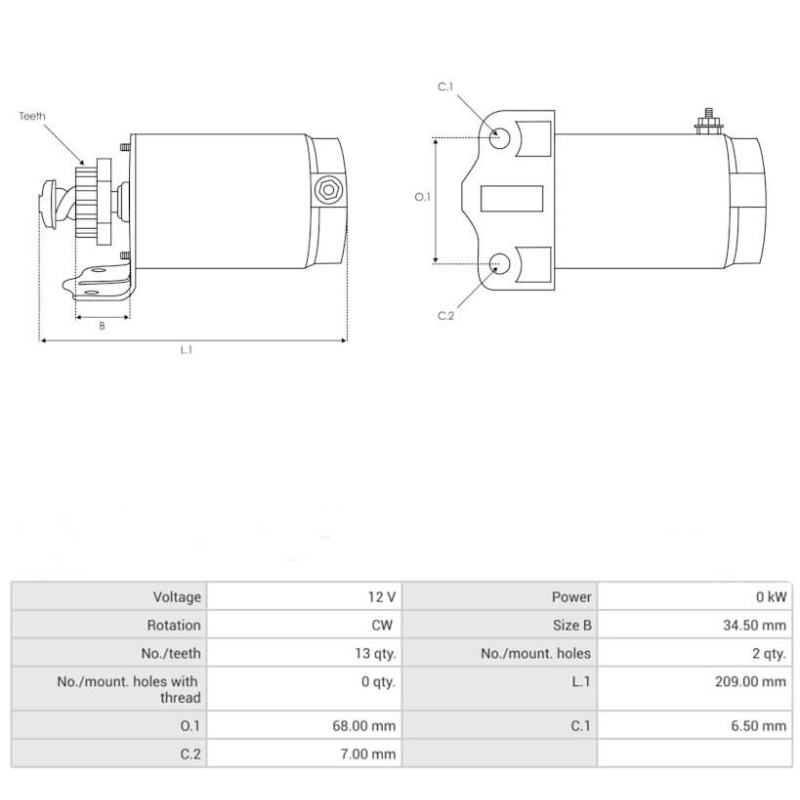

Specifications
Voltage [ V ] 12
Power [ kW ] 0
Starter rotation CW
Dimension B [ mm ] 34.50
Number of teeth [ qty. ] 13
Number of mounting holes [ qty. ] 2
Number of threaded holes [ qty. ] 0
L.1 [ mm ] 209.00
O.1 [ mm ] 68.00
C.1 [ mm ] 6.50
C.2 [ mm ] 7.00
Replacing :
YAMAHA 5EL-81890-00-00 / 5EL-81890-01-00
ARROWHEAD SMU0305
generic brand
PARTIAL LIST
IT IS NECESSARY TO CHECK THE CORRESPONDENCE WITH THE REFERENCE OF YOUR OLD STARTER BEFORE PURCHASE.
Mounted on :
YAMAHA (1999-2009)
1999 YAMAHA XV1100 Virago
2009-99 YAMAHA XVS1100 V Star 1100 Custom
2009-00 YAMAHA XVS1100A V Star 1100 Classic
2009-02 YAMAHA XVS1100AT V Star 1100 Silverado
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
| Brand | Model | Typ | Year |
| YAMAHA | XV XV 1100 Virago (3LP) | 01.1988 - 12.1999 | |
| YAMAHA | XVS XVS 1100 A Drag Star Classic (VP05) | 01.2003 - 12.2007 | |
| YAMAHA | XVS XVS 1100 A Drag Star Classic (VP05) | 01.2000 - 12.2007 | |
| YAMAHA | XVS XVS 1100 Drag Star (VP05) | 01.1999 - 12.2004 |
Acheteur Vérifié
Hello. I hesitated to put it on notice. For navigation, it's fine. To have found the exact part with ref"Yamaha", çà can go, but I received a starter which does not correspond at all to the photograph and reference. I printed it and showed it to the mechanics, and they confirmed to me that the part sent did not correspond at all. I hurried to phone you and got an answering machine saying you were closed until August 21. So my bike is stuck at the "mechanic" at least until the return of my part. I'll wait until the 22nd to contact you by phone, to avoid any further delay. Hoping that things will go well from here. Sincerely (Translated review)
