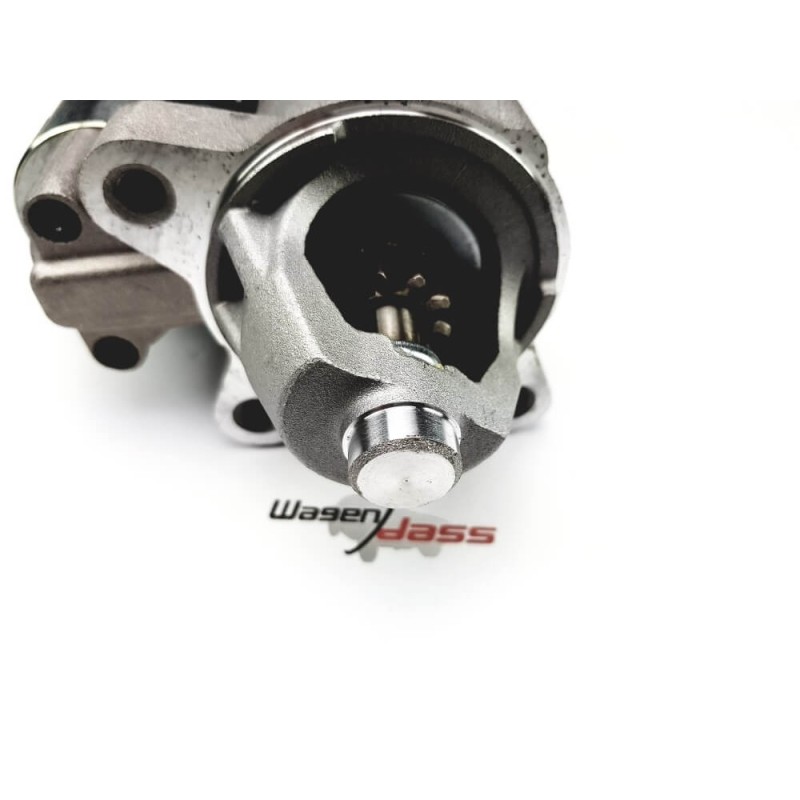

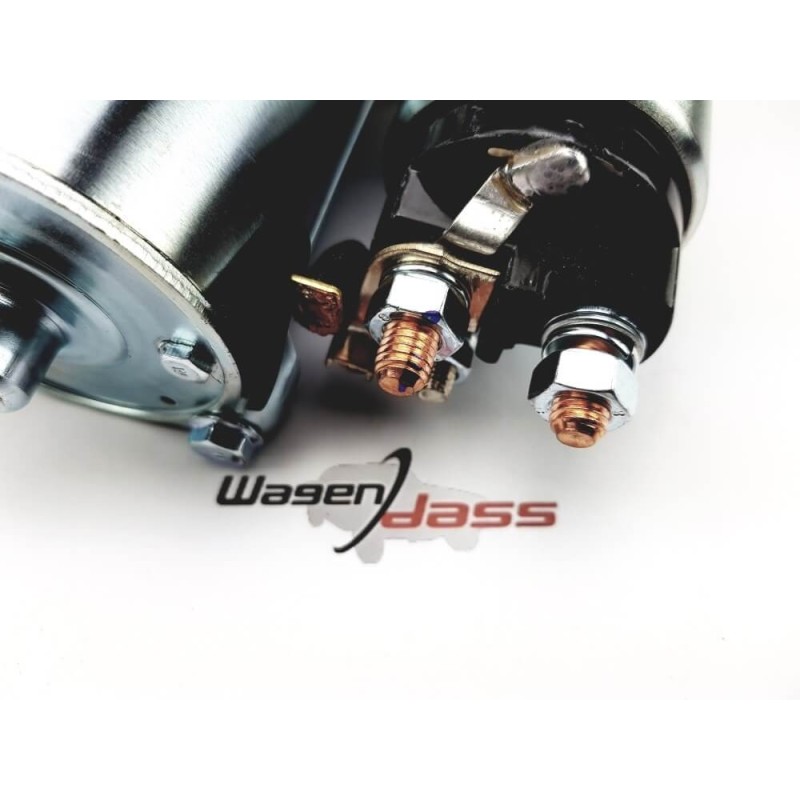

Starter replacing FORD 20-100-01034 / 20-100-01014 / 2T1411000BB / 2T1411000BC

Information:

Voltage 12

KW 1.4

A = Mount flange 76.00

B = Drive distance 15.00

F = Distance / Back 147.50

G = Distance / Front 53.50

H = Nbr of teeth 10

B+ M8

Gear type Gr

O1 = Distance 102.50

O2 = Distance 2 66.50

O3 = Distance 3 66.00

Rotation Cr

Nbr of mounting holes 3 (3)

Drive Tipo Steel

R = Total length mm 209.00

generic brand

= BOSCH 0001109056 / 0986022840

= DELCO REMY DRS3956 / DRS3956N

= FORD 1345314 / 1477973 / 1477974 / 2T1411000AA

2T1411000AB / 2T1411000BA / 2T1411000BB / 2T1411000BC

2T1411000CA / 2T1411000CB / 2t1411000cc / 4033064

4424968 / 4443760

= HELLA 8EA738258201

= LUCAS LRS01627

= VISTEON 20-100-01034

= MAGNETI MARELLI 63280034 / MSN8034

= VALEO 458830

MARQUE / Generic

fits:

TOURNEO CONNECT (75 - 110 CH, 06.2002 - 12.2013 ac)

• 1.8 TDCi, Year Built 06.2002 - 12.2013, 1753 ccm, 90 CH

• 1.8 TDCi, Year Built 08.2006 - 12.2013, 1753 ccm, 110 CH

• 1.8 TDCi /TDDi /DI, Year Built 06.2002 - 12.2013, 1753 ccm, 75 CH

TRANSIT CONNECT (P65_, P70_, P80_) (75 - 110 CH, 06.2002 - 12.2013 ac)

• 1.8 Di, Year Built 06.2002 - 12.2013, 1753 ccm, 75 CH

• 1.8 TDCi, Year Built 06.2002 - 12.2013, 1753 ccm, 90 CH

• 1.8 TDCi, Year Built 08.2006 - 12.2013, 1753 ccm, 110 CH

                                              TWO YEARS WARRANTY

          NO CORE EXCHANGE NEEDED
