w112124

063103022010 Magneti Marelli
0986010440 Bosch ruil
0986010441 Bosch ruil
0986023650 Bosch
0986025480 Bosch ruil
1088SP Spidan
11010450 EuroTec
11013620 EuroTec
11090022 EuroTec
11090051 EuroTec
11130392 Mahle
112124 Cargo
11520 Stemot
Read more
€89.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Reference

0986010450 BOSCH 500.008.093.050 PSH
10285 KUHNER 500.008.093.265 PSH
10536 KUHNER 500.008.093.058 PSH
10975 KUHNER PRSF327 3EFFE
112124 CARGO PRSL077 3EFFE
11680 EAI 88213154 POWERMAX
11895 EAI LRT147 LUCAS
20404611BN REAL 331127 LOGISTIK
22.0975 LAUBER 63223085 MAGNETI MARELLI
22.0975M LAUBER 63223303 MAGNETI MARELLI
25-2051 ELSTOCK 7772462 FIAT
31146N WAI / TRANSPO 220051 ERA
35258510 PRESTOLITE 5030159 MEAT & DORIA
35258890 PRESTOLITE MAV2200A SIOM
3826 CEVAM STR9085 ELECTROLOG
42001234 HERTH+BUSS E80E1012 MAGNETI MARELLI
455872 VALEO E80E-1.0/12 MAGNETI MARELLI
46417006 FIAT STA0050R BOVEZ
46475793 FIAT STA0120R BOVEZ
46774415 FIAT 4470377 FIAT
50246648 MAGNETI MARELLI 4470378 FIAT
63103002 MAGNETI MARELLI 46231535 FIAT
63103007 MAGNETI MARELLI 46231540 FIAT
63103022 MAGNETI MARELLI 46416879 FIAT
63223031 MAGNETI MARELLI 46431502 FIAT
63223101 MAGNETI MARELLI 46475794 FIAT
66925112 PRESTOLITE 5802-M1 PEUGEOT
7773812 FIAT 5802M1 PEUGEOT
8080043 FRIESEN 5968605 FIAT
8EA737148-001 HELLA 71721304 FIAT
AES1247 AUTOELECTRO 71721304 INNOCENTI
ALT136240 SIOM 71721310 FIAT
CS883 HC PARTS 7566528 FIAT
CS975 HC PARTS 7589547 FIAT
CST30116AS CASCO 7589655 FIAT
CST30116GS CASCO 7642573 FIAT
CST30116OS CASCO 7666528 FIAT
DRS3104 DELCO 7680615 FIAT
DRS3697 DELCO 7733966 FIAT
DSN577 DENSO 7733966 IVECO
EL25112 PRESTOLITE 77398430 FIAT
LRT00147 LUCAS STX200162 STARDAX
MAV2200 SIOM STX200162R STARDAX
MAV2410 SIOM STX200343R STARDAX
MAV321210 SIOM STX200689 STARDAX
RNL975CS RNL STX200887 STARDAX
S4020 AS-PL STX200887R STARDAX
SS437 SOVEREIGN STX200343 STARDAX
SS512 SOVEREIGN C132 DENSO
STR52003 WOODAUTO F032112124 CARGO
STRF327 3EFFE S132.720 PSH
STRL077 3EFFE S148.771 PSH
STRL707 3EFFE
220166 ERA
S12MA0659A2 SIDAT
ANM15324X ANDEL
CST30116RS CASCO
20404611OE REAL
20404611RC REAL
20404611RE REAL
6030116.0 SANDO
6030116.1 SANDO
6030116.2 SANDO
6030116.4 SANDO

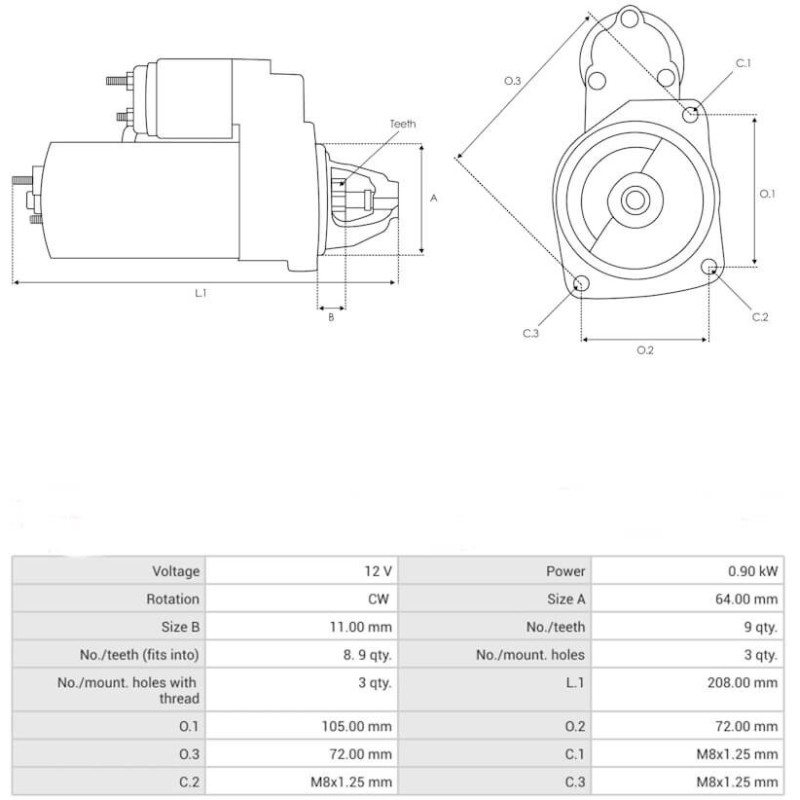

Features

Physical information
H No./teeth 9
P Rotation CW
N Gear type DD/GR
A Mount. flange 64.10
I B+ M8
No./mount. holes 3 (3)
B Drive dist. 11.00
E Mount. hole 1 mm M8
E Mount. hole 2 mm M8
E Mount. hole 3 mm M8
F Dist./back 152.00
G Dist./front 47.00
M Mount. bracket No
O Dist. mm 105.00
O Dist. 2 71.50
O Dist. 3 72.50
R Total length mm 206.00
Catalogue information
Drive type Steel
Prod. info BN
Waterproof No
Oil sealed No
Electrical information
Voltage 12
Kw 0.9

generic brand

replacing

063103022010 Magneti Marelli
0986010440 Bosch ruil
0986010441 Bosch ruil
0986023650 Bosch
0986025480 Bosch ruil
1088SP Spidan
11010450 EuroTec
11013620 EuroTec
11090022 EuroTec
11090051 EuroTec
11130392 Mahle
112124 Cargo
11520 Stemot
11680 EAI
11895 EAI
230091 Cargo
251184 Elstock
252051 Elstock
252210 Elstock
260225 Elstock
318008092 DRI
318034092 DRI
4054 Lester
4054SP Spidan
4146SP Spidan
432659 Valeo
4486SP Spidan
455872 Valeo
46231535 Fiat
46431502 Fiat
46473787 Fiat
46475793 Fiat
46478224 Fiat
500008093 PSH
63103002 Magneti Marelli
63103003 Magneti Marelli
63103007 Magneti Marelli
63103008 Magneti Marelli
63103023 Magneti Marelli
63111017 Magneti Marelli
63221300 Magneti Marelli
63221401 Magneti Marelli
63221431 Magneti Marelli
63221607 Magneti Marelli
63221637 Magneti Marelli
63222831 Magneti Marelli
63222833 Magneti Marelli
63222901 Magneti Marelli
63223031 Magneti Marelli
63223085 Magneti Marelli
63223101 Magneti Marelli
63223303 Magneti Marelli
66925112 Prestolite
71721230 Fiat
71721258 Fiat
7773812 Fiat
8010440F Friesen
8010450F Friesen
910440 EDR
943221431 Magneti Marelli
943223031 Magneti Marelli
944280104400 Magneti Marelli
A10440 ATL
A10450 ATL
A75670 ATL
A75990 ATL
AZF3530 Mahle
AZF3547 Mahle
CS1043 HC
CS133 HC
CS883 HC
DRS0440 Remy
DRS3313 Remy
DRS3698 Remy
DSN586 Denso
EL25112 Prestolite
HCS1043 HC
HCS133 HC
HCS883 HC
IS0392 Mahle
LRS00341 Lucas
LRS827 Lucas
LRT00147 Lucas
M3T48481 Mitsubishi
MSN274 Magneti Marelli
MSN302 Magneti Marelli
ND158 Valeo
S23069 Hitachi
S27066 Hitachi
STR0059sa Electrolog
STR1105sa Electrolog
STR4051sa Electrolog
