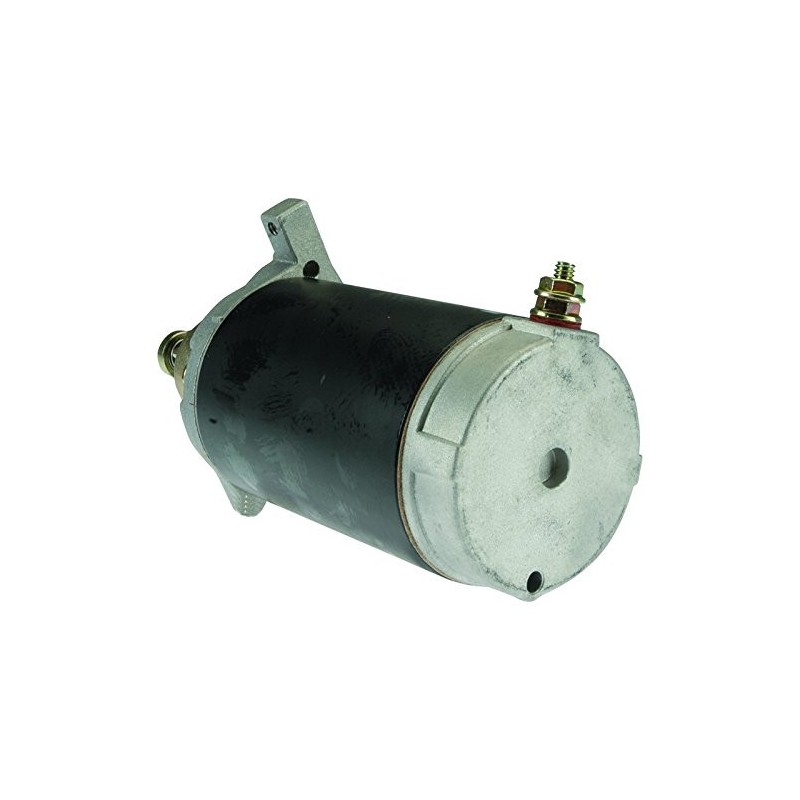

Starter replacing 50-30829 / 50-32403 / 50-32411 / 50-37345 / 50-38890
Starter replacing :
MERCURY MARINE 50-30829, 50-32403, 50-32411, 50-37345, 50-38890, 50-38890A1, 50-55601, 50-55601A2, 50-55801A, PRESTOLITE 20513502TBA, UNITED TECHNOLOGIES 0996140, 0996140-M030SM, 0996140MO30SM, M055014A, M0551014A,
NO CORE EXCHANGE NEEDED
More info
Specs Electricals | ||
|---|---|---|
| Voltage | 12 | |
| Kw | 0.8 | |
Specs Physique | ||
|---|---|---|
| H | Nbr of teeth | 9 |
| P | Rotation | COUNTER CLOCKWISE |
| N | Gear type | Dd |
| A | Mount flange | 54.00 |
| I | B+ | 1/4" UNC |
| B | Drive distance | 0.50 |
| E | Mounting holes | M8 |
| E | Mounting holes 2 | M8 |
| F | Distance / Back | 141.00 |
| G | Distance / Front | 69.00 |
| M | Mount. bracket | Non |
| O | Distance mm | 82.00 |
| R | Total length mm | 210.00 |
Replacing :
Aqua Power 2836
MERCURY MARINE 50-30829, 50-32403, 50-32411, 50-37345, 50-38890, 50-38890A1, 50-55601, 50-55601A2, 50-55801A, PRESTOLITE 20513502TBA
UNITED TECHNOLOGIES 0996140, 0996140-M030SM, 0996140MO30SM, M055014A, M0551014A, M0551017, M0551017A, SM09961, SMH12B31
fits:
MERCURY (1965-1983)
Starter for engine hors bord MERCURY, Mariner
Applications Engines :
35 (65-83)
40 (65-83)
50 (65-83)
