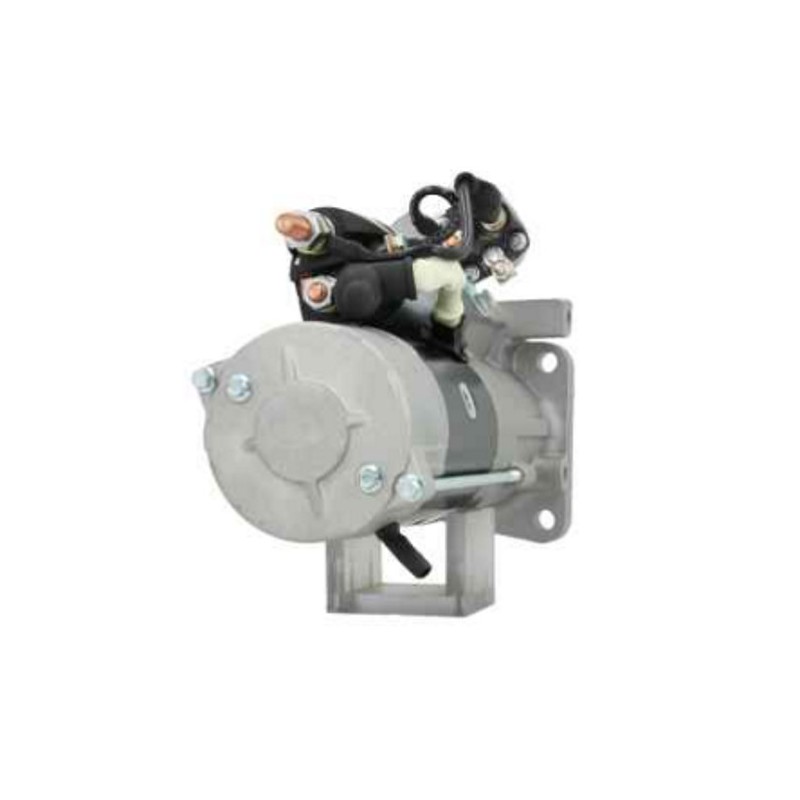

Starter replacing Mitsuibishi M009T62671 / M9T62671 / KHD 01183286 / 1182759
Starter for DEUTZ-fahr / Khd / VOLVO Truck
= 7420997672 / 85000749 / DRS0325 / 0986024660
le modèle en brand MITSUBISHI under the reference w115894
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info

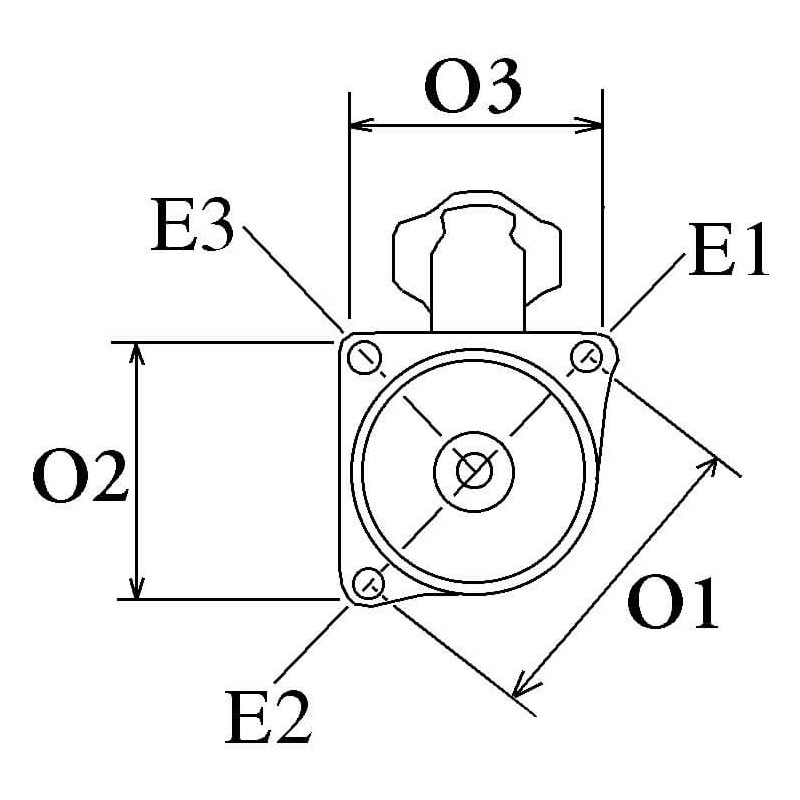

Physical Information | ||
|---|---|---|
| A | Mount flange | 89.00 |
| E | Mounting holes | 10.50 |
| E | Mounting holes 2 | 10.50 |
| E | Mounting holes 3 | 10.50 |
| B | Drive distance | 27.00 |
| F | Distance / Back | 285.00 |
| G | Distance / Front | 34.00 |
| H | Nbr of teeth | 12 |
| I | B+ | M10 |
| N | Gear type | Gr |
| O | Distance mm | 127.00 |
| O | Distance 2 | 89.50 |
| O | Distance 3 | 89.50 |
| P | Rotation | Cr |
| R | Total length mm | 318.00 |
Electrical Information | ||
|---|---|---|
| Voltage | 24 | |
| KW | 5.5 | |
Generic Brand
Replacing | ||
|---|---|---|
| 01182759 | KHD | |
| 01183286 | KHD | |
| 1182759 | KHD | |
| 1183286 | KHD | |
| 21164603 | VOLVO | |
| 21306350 | VOLVO | |
| 5001868233 | RENAULT | |
| 7420997672 | RENAULT | |
| 7421164607 | RENAULT | |
| 85000749 | VOLVO | |
| cs1496 | HC-PARTS | |
| m9t62671 | MITSUBISHI | |
| 01182759 |
| 01183286 |
| 0162671 |
| 0986024660 |
| 1182315 |
| 1182759 |
| 20880693 |
| 21164603 |
| 21306350 |
| 454272 |
| 561501123 |
| 7420997672 |
| 85000749 |
| 910325 |
| CS1496 |
| DRS0325 |
| F042S01218 |
| F042S01218FEB |
| KTR1123002246 |
| LRS02599 |
| M009T62671 |
| M9T62671 |
| M9T62671AM |
| STR5180sa |
| STR5183sa |
| STR7914 |
fits:
| DEUTZ-Farh Khd | Industrial | D7D |
| VOLVO Truck | Truck | D7D DEUTZ |
