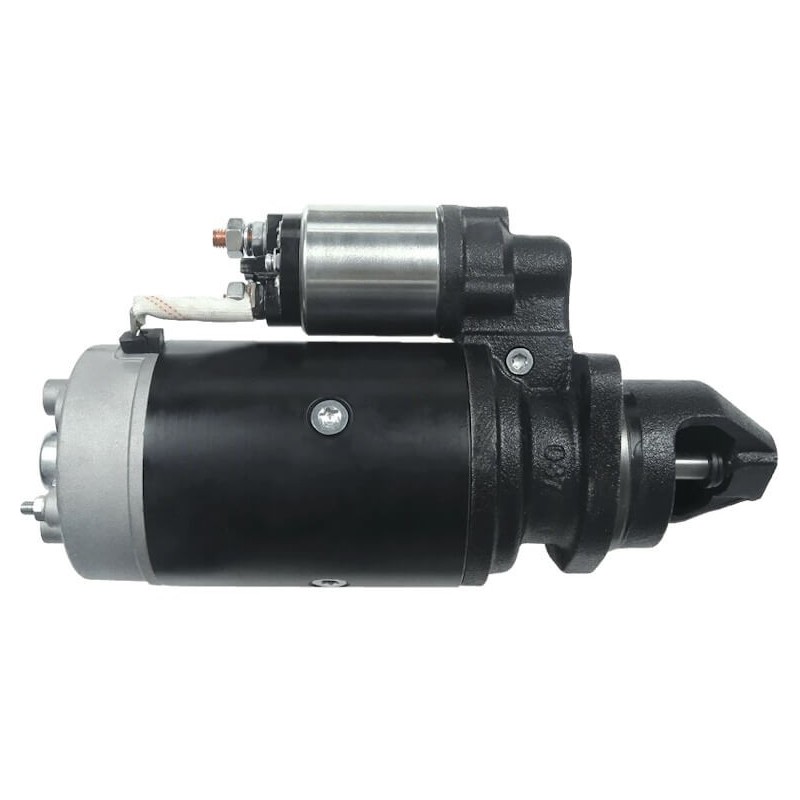

Starter replacing BOSCH 0001369022 / 0001369005 / 0001369001
Starter for JOHN DEERE
= BOSCH 0001367078 / 0001367075 / 0001367037 / 0001362316 / 0001362312 / 0001359090 / 0001359016 / 0001358041
0001369001 / 0001369005 / 0001369022
= ISKRA AZJ3283 / AZJ3274 / AZJ3181 / AZJ3158 / AZJ3157 / AZF4596 / AZF4521
11.131.374 / 11.130.819 / 11.130.793 / IS0533
Features
Information:
Electrical Information | ||
---|---|---|
Voltage | 12 | |
KW | 3.0 |

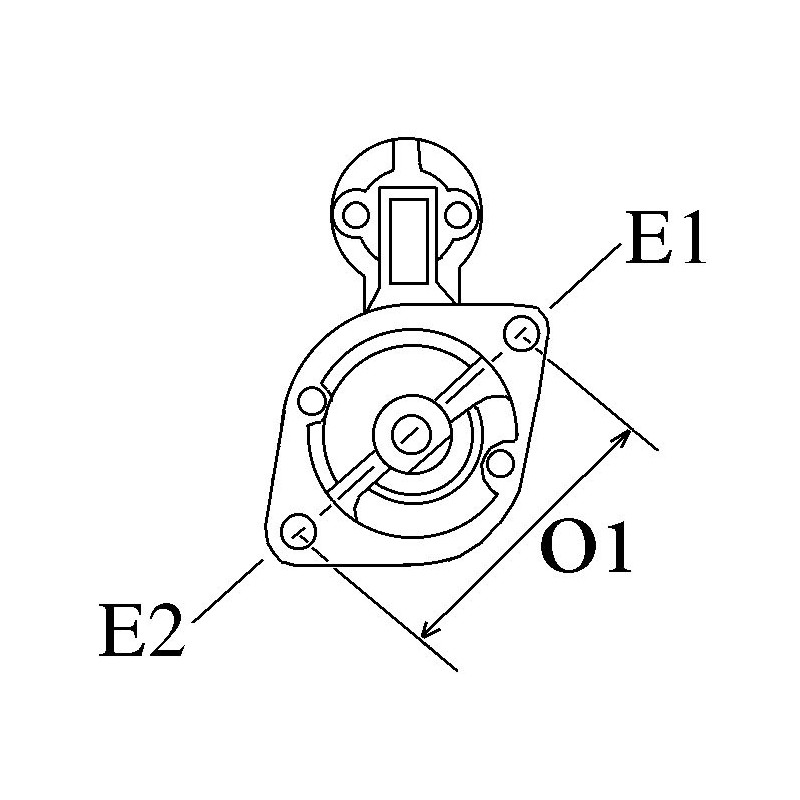

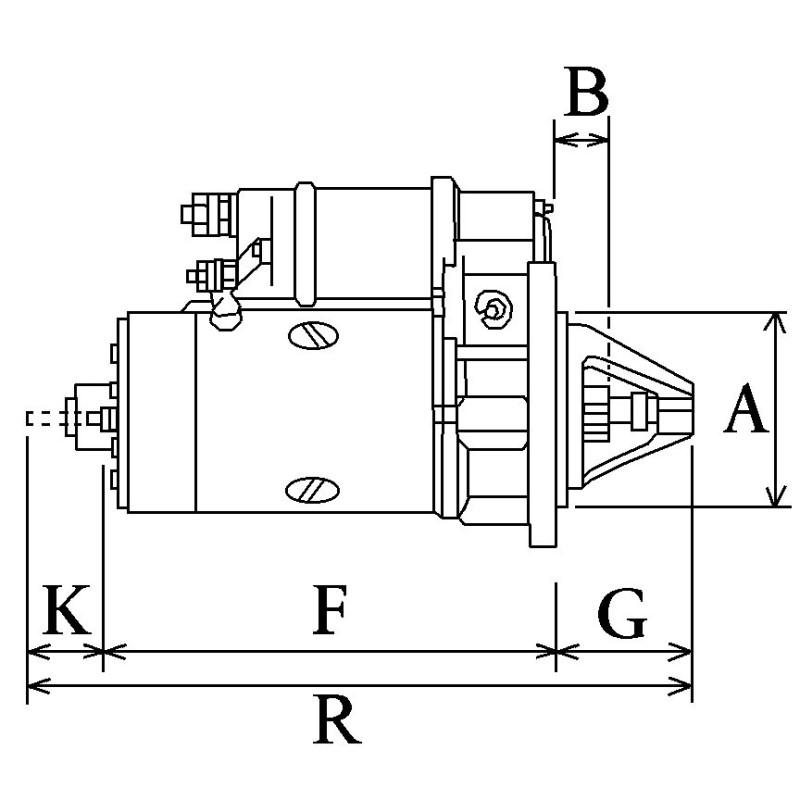

Physical Information | ||
---|---|---|
A | Mount flange | 82.00 |
E | Mounting holes | 13.50 |
E | Mounting holes 2 | 13.35 |
B | Drive distance | 34.00 |
F | Distance / Back | 262.00 |
G | Distance / Front | 83.30 |
H | Nbr of teeth | 10 |
I | B+ | M10 |
N | Gear type | Dd |
O | Distance mm | 103.60 |
P | Rotation | Cr |
R | Total length mm | 342.00 |
generic brand
= BOSCH 0001367078 / 0001367075 / 0001367037 / 0001362316 / 0001362312 / 0001359090 / 0001359016 / 0001358041 / 0001369001 / 0001369005 / 0001369022 / 0986012420 / 0986014740
= ISKRA AZJ3283 / AZJ3274 / AZJ3181 / AZJ3158 / AZJ3157 / AZF4596 / AZF4521 / 11.131.374 / 11.130.819 / 11.130.793 / 11.130.534 / 11.130.819
= MAKO 063206834000
= MAGNETI MARELLI 63206834 / 063206834010
= MAGNETON 9142700 / 443-115-142-700 / 9-142-700 /
= JOHN DEERE AL110503 / AL110504 / AL11503 / al41247 / al62690 / al62691 / al62772 / al62773 / al78760 / ar70436 /ar70437 / at23401 / RE500733 / RE501002 / RE505745 / RE60384 / ty6720 / AL110597, AL110598 / AL62691 / AL62773 / AL787760 / AR70436 / AR70437 / AT23401 / RE500733 / RE60384 / TY25650 / TY6615
= RENAULT 6005012976
0001358041 | BOSCH |
0001359016 | BOSCH |
0001359090 | BOSCH |
0001367037 | BOSCH |
0001367075 | BOSCH |
0001367078 | BOSCH |
0001369001 | BOSCH |
0001369005 | BOSCH |
0001369022 | BOSCH |
0986012420 | BOSCH ruil |
0986014740 | BOSCH ruil |
11012420 | EuroTec |
11014740 | EuroTec |
1107871 | DELCO REMY |
11130534 | MAHLE |
11130569 | MAHLE |
11130793 | MAHLE |
11130819 | MAHLE |
111755 | Cargo |
120497 | PIC |
120497B | PIC |
120500A | PIC |
1205087 | PIC |
16563 | Lester |
17085N | WAI |
17095N | WAI |
17095R | WAI |
250227 | Elstock |
30534 | Lester |
33418 | EAI |
33788 | EAI |
33886 | EAI |
4043SP | Spidan |
436070 | VALEO |
630002102 | PSH |
8812420F | Friesen |
8814740F | Friesen |
91014263 | WILSON |
91156872 | WILSON |
91157147 | WILSON |
A12420 | ATL |
A14730 | ATL |
AL110503 | JOHN DEERE |
AL110597 | JOHN DEERE |
AL39700 | JOHN DEERE |
AL62772 | JOHN DEERE |
AL78760 | JOHN DEERE |
AR70436 | JOHN DEERE |
AZJ3158 | MAHLE |
AZJ3181 | MAHLE |
AZJ3283 | MAHLE |
CS395 | HC |
DEM109 | ADI |
DRS2420 | DELCO REMY |
DRS4740 | DELCO REMY |
HCS395 | HC |
IS0534 | MAHLE |
IS0569 | MAHLE |
IS0819 | MAHLE |
LRS00565 | LUCAS |
LRS565 | LUCAS |
MS264 | MAHLE |
RE505745 | JOHN DEERE |
SE501411 | JOHN DEERE |
SE501412 | JOHN DEERE |
SE501427 | JOHN DEERE |
SM2541 | HONDA |
SM2554 | HONDA |
STR10070SA | Electrolog |
STR1053sa | Electrolog |
STR1169sa | Electrolog |
STR6409sa | Electrolog |
STR78014sa | Electrolog |
STR7915sa | Electrolog |
TY25974 | JOHN DEERE |
TY6620 | JOHN DEERE |
TY6780 | JOHN DEERE |
Used onnotamment on :
JOHN DEERE
Tracteur
Serie: 10 2510, 310, 4010, 510, 710, 920, JOHN DEERE 1130
Serie: 20 1020 (EU-3152D), 1020 (EU-3164D), 1020 (USA), 1120, 1520, 2020 (EU), 2120 (EU), 2120 (USA), 2520, 3020, 3120, 4000, 4020, 4320, 4520, 4620, 7020, 820 (EU), 820 (USA)
Serie: 30 1030 (DE), 1030 (ES), 1030OU, 1030VU, 1130, 1530, 1630 (DE), 1630 (ES), 1630OU, 1630VU, 1830, 2030 (DE), 2030 (ES), 2030OU, 2130 (DE), 2130 (ES), 2630, 3030, 3130 (DE), 3130 (ES), 4030, 4230, 4430, 4630, 830 (EU), 930, 930VU
Serie: 3000 3100, 3200, 3200X, 3300, 3300X, 3400, 3400X
Serie: 3010 3110, 3210 (4039D), 3210X (4039D), 3310 (Std), 3310X (Std), 3410 (4039T), 3410X (4039T)
Serie: 35 1035 (50000=> ), 1035EF (50000=> ), 1035EV (50000=> ), 1635 (50000=> ), 1635EF (50000=> ), 1635EV (50000=> ), 2035 (50000=> ), 2035EF (50000=> ), 2135 (50000=> ), 3135 (50000=> )
Serie: 40 1040 (DE), 1040 (ES), 1040V, 1140 (DE), 1140 (ES), 1140F, 1140V, 1640 (DE), 1640 (ES), 1640F, 1840 (DE), 1840 (ES), 1840F, 2040 (DE), 2040 (ES), 2040 (USA-3164D), 2040 (USA-3179D), 2040F, 2040S (DE), 2040S (ES), 2140 (DE), 2140 (ES), 2240, 2440, 2640, 2840, 2940, 3040, 3140 (DE), 3140 (ES), 3340, 3640, 3640S, 4040 (EU), 4040 (USA), 4040S, 4240 (EU), 4240 (USA), 4240S, 4440 (EU), 4440 (USA), 4640, 4840, 840, 8440, 940 (DE), 940 (ES), 940V
Serie: 45 1445F, 1745F, 1845F, 2345F
Serie: 50 1350, 1550, 1750, 1750V, 1850 (DE), 1850 (ES), 1850F, 1850N, 1850V, 1950 (DE), 1950 (ES), 1950F, 1950N, 2150, 2250 (DE), 2250 (ES), 2250F, 2350, 2450 (DE), 2450 (ES), 2450F, 2550, 2650, 2650CS, 2650F, 2650N, 2650TSS, 2750, 2850 (DE), 2850 (ES), 2950, 3050, 3150 (ES), 3150 (USA), 3350 (DE), 3350 (ES-6359D)), 3350 (ES-6359T), 3650, 4050 (6359T), 4050 (6466D), 4050E, 4250, 4350, 4450, 4650, 4850, 8450
Serie: 5020 5620,
Serie: 55 2255, 2355, 2755, 2855N, 2955 (=>765516 ), 3055, 3155, 3255,
Serie: 6000 6100, 6100SE, 6200 (EU), 6200 (USA), 6200L, 6200SE, 6300 (EU), 6300 (USA), 6300L, 6300SE, 6400 (EU), 6400 (USA), 6400L, 6400SE, 6400SP (Powertech), 6400SP (Std), 6500, 6500L
Serie: 6005 6405 (BR), 6405 (USA)
Serie: 6010 6010, 6010SE, 6110 (EU), 6110 (USA), 6110L, 6110SE, 6210 (EU), 6210 (USA), 6210L, 6210SE, 6310 (EU), 6310 (USA), 6310L, 6310S, 6310SE, 6410 (EU), 6410 (USA), 6410L, 6410S, 6410SE, 6510L, 6510S
Serie: 8030 8430, 8430T, 8530
Serie: 9000 9230
Serie: T T400
Moissonneuse-Batteuse
Serie: 1032, 1042, 1065 (=>041200 ), 1072 (=>041200 ), 1075 (=>041200 ), 1155, 1157, 1158, 1174, 1177, 1177HY, 2054, 955
RENAULT
Tracteur
Serie: Ceres Ceres 310, Ceres 310 4x4, Ceres 320, Ceres 330, Ceres 340
Serie: Cergos Cergos 330, Cergos 340, Cergos 350
Serie: Ergos Ergos 105, Ergos 85, Ergos 95
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
