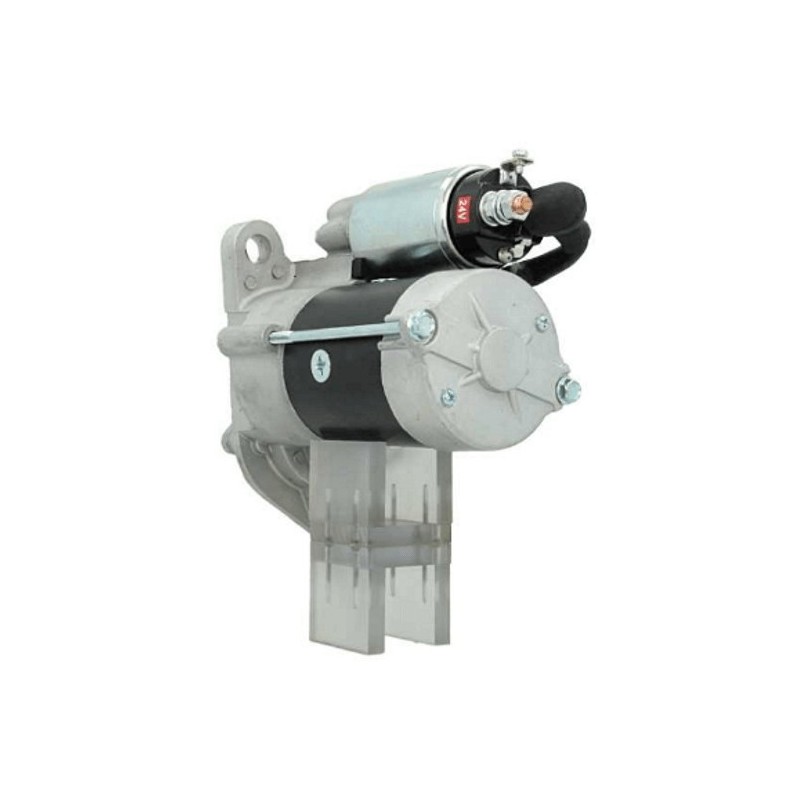

Starter replacing HITACHI S25-505G / S25-505E / S25-505C

Information:

Voltage 24

KW 4.0

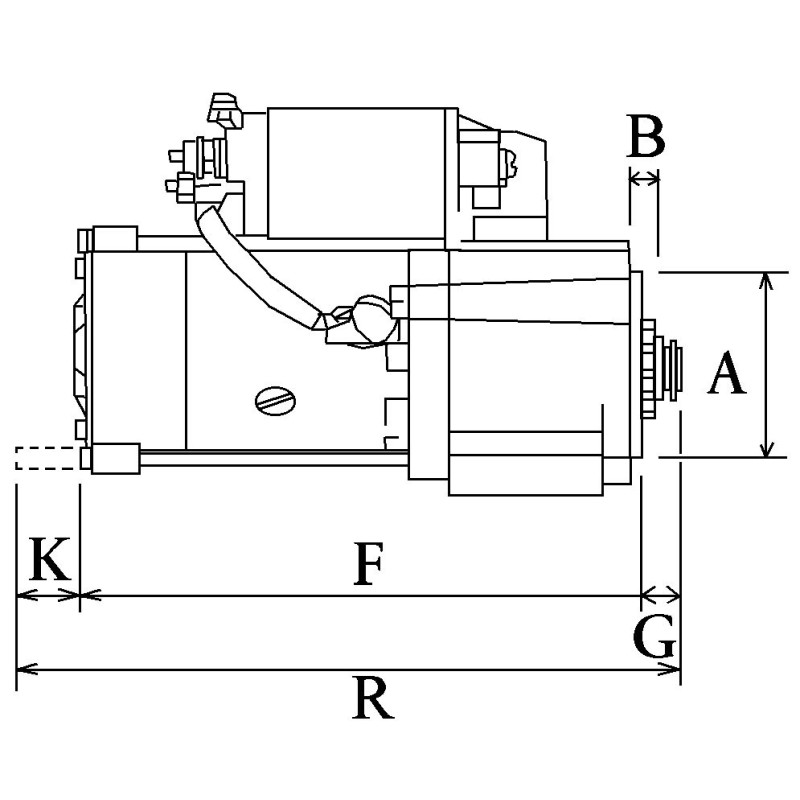

A = Mount flange 94.00

B = Drive distance 44.10

F = Distance / Back 188.50

G = Distance / Front 44.10

H = No. from Teeth 11

B+ M8

Gear type Gr

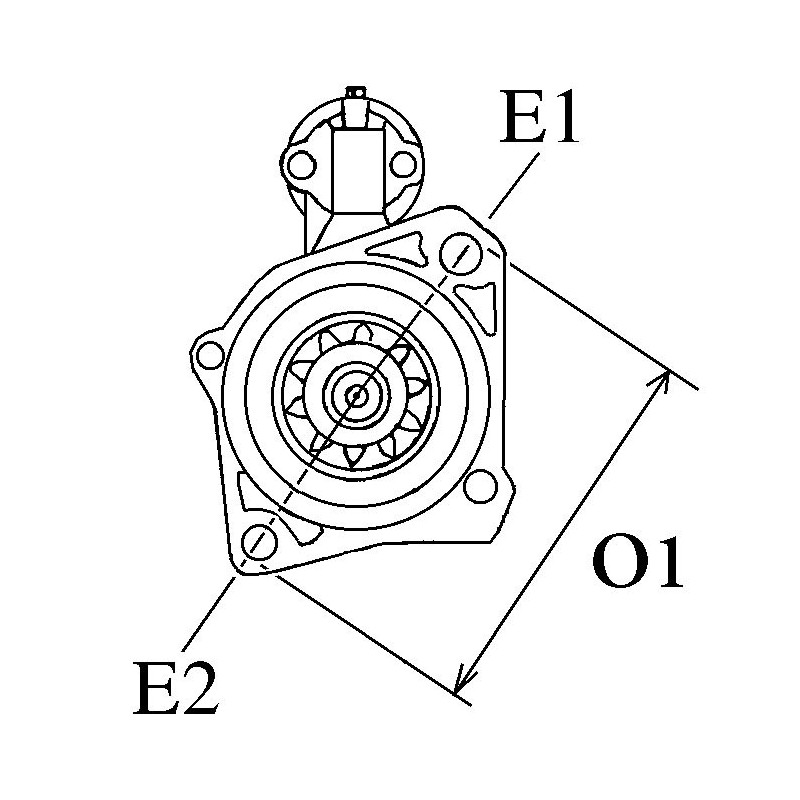

O = Distance mm 170.00

Rotation COUNTER CLOCKWISE

Nbr of mounting holes 2 (0)

Clutch Tipo Dry

Drive Tipo Steel

R = Total length mm 235.50

generic brand

= HITACHI S25-505A / S25-505 / S25-501B / S25-501A / S25-501 / S25-171 / S25-168A / S25-501c / S25-163A / S25-163B

S25-163C / S25-308 / S25-308A / S25-501 / S25-501A

S25-501C

= ISUZU 8970324642 / 8970655260 / 8980549840 / 8971009261

8971722110 / 8972161850 / 8972161861 / 8972267871

8973239352 / 8982220181

= KTR263004224 / STR3019sa / STR3041sa / STR3069sa

TRS015

                 NO CORE EXCHANGE NEEDED

                                    TWO YEARS WARRANTY
