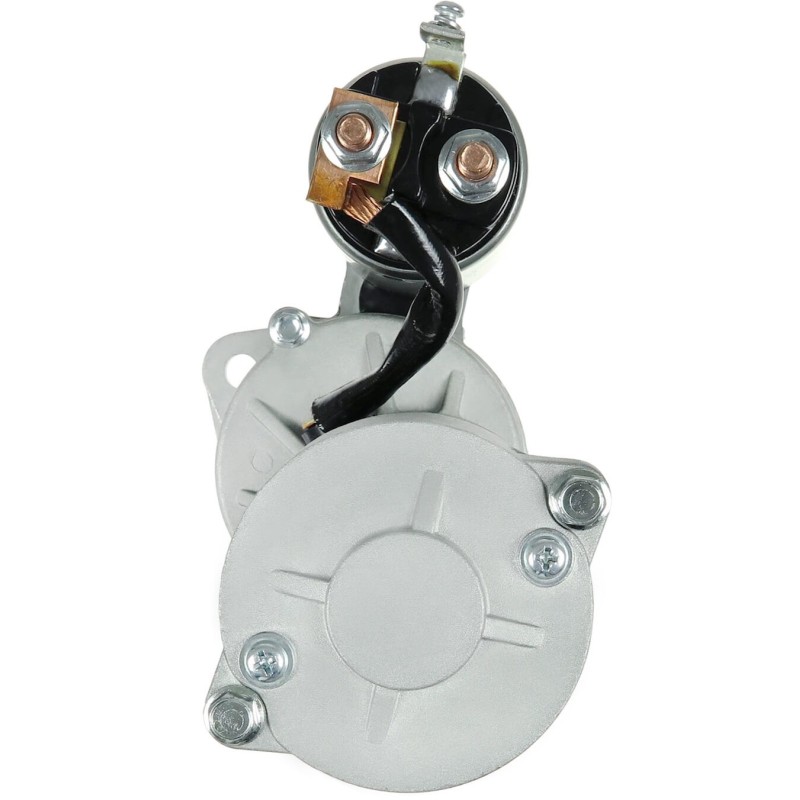

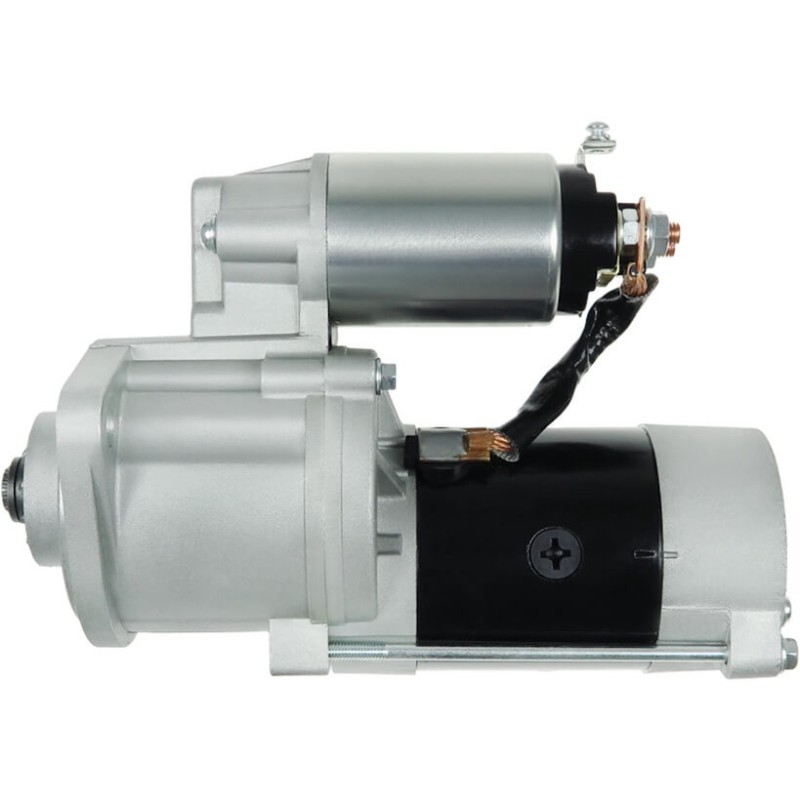

rMounted on Mitsubishi FD20 series forklift
Note: Always verify the exact match with your original part number, as multiple configurations may exist for the same model.

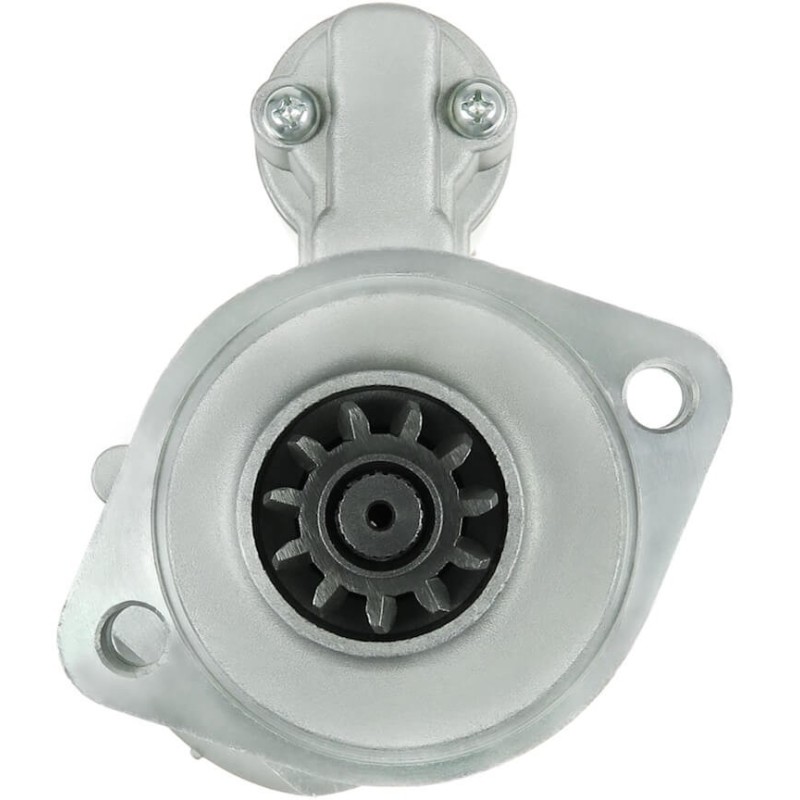

24 Volts / 3.2 kW / 11 teeth / CW (clockwise) rotation
| 111913 | CARGO |
| 18245N | WAI |
| 18245R | WAI |
| 20437006BN | REAL |
| 20513017 | PRESTOLITE |
| 20777 | KUHNER |
| 20777V | KUHNER |
| 254367 | KUHNER |
| 28.0777 | LAUBER |
| 28.0777M | LAUBER |
| 33755 | EAI |
| 34466-20102 | NISSAN |
| 3446615100 | MITSUBISHI |
| 45-1095 | ELSTOCK |
| 6035600 | SANDO |
| 8052515 | FRIESEN |
| 8213243 | POWERMAX |
| 8404 | CEVAM |
| 8EA732662-001 | HELLA |
| AEY1842 | AUTOELECTRO |
| CGB-23004 | AINDE |
| CST35600AS | CASCO |
| DRS3284 | DELCO |
| JS777 | HC PARTS |
| LRS01842 | LUCAS |
| LRS1842 | LUCAS |
| M2T27672 | MITSUBISHI |
| M2T65271 | MITSUBISHI |
| M2T65272 | MITSUBISHI |
| M3T54071 | MITSUBISHI |
| M3T54072 | MITSUBISHI |
| M5T27671 | MITSUBISHI |
| MAV6100 | SIOM |
| S5003 | AS-PL |
| STR71158 | WOODAUTO |
| STRS138 | 3EFFE |
| 220195 | ERA |
| S24MH0032A2 | SIDAT |
| ANM15504X | ANDEL |
| M002T27672 | MITSUBISHI |
| M002T65271 | MITSUBISHI |
| M002T65272 | MITSUBISHI |
| M003T54071 | MITSUBISHI |
| M003T54072 | MITSUBISHI |
| M005T27671 | MITSUBISHI |
| STR5031 | ELECTROLOG |
| 34466-03101 | MITSUBISHI |
| 34466-03101 | NISSAN |
| 34466-10103 | MITSUBISHI |
| 34466-15101 | MITSUBISHI |
| 34466-15101 | NISSAN |
| 34466-15102 | HYUNDAI / KIA |
| 34466-15102 | MITSUBISHI |
| 34466-15102 | NISSAN |
| 34466-15102 | SUZUKI |
| 3446603101 | MITSUBISHI |
| 3446610103 | MITSUBISHI |
| 3446615101 | MITSUBISHI |
| 3446615102 | MITSUBISHI |
| 3785420 | CLARK |
| 3785426 | CLARK |
| M002T65275 | MITSUBISHI |
| M2T65275 | MITSUBISHI |
| PTC-4073 | POWER TRUCK |
| F032111913 | CARGO |
| J5215015 | HERTH+BUSS |
| AM-2271 | AUTO MAGNETO |
Information:
Voltage 24
KW 3.2
A = Mount flange 82.50
B = Drive distance 22.75
F = Distance / Back 218.50
G = Distance / Front 31.30
H = Nbr of teeth 9,11, B+ M8
Gear type Gr
O = Distance 104.50
Rotation Cr
Nbr of mounting holes 2 (0)
Clutch Type Dry
Drive Type Steel
R = Total length mm 250.50
Generic brand
= DELCO REMY DRS3284
= Kia 34466-15102
= LUCAS LRS01842
= MITSUBISHI 34466-15101 / 34466-15102 / M002T65271 / M002T65272 / M002T65275
M003T54071 / M003T54072 / M005T27671 / m2t65271 / m2t65272 / m2t65275
m3t54071 / m3t54072 / m5t27671
= NISSAN 34466-03101 / 34466-15101 / 34466-15102 / 34466-20102
= SUZUKI 34466-15102
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
