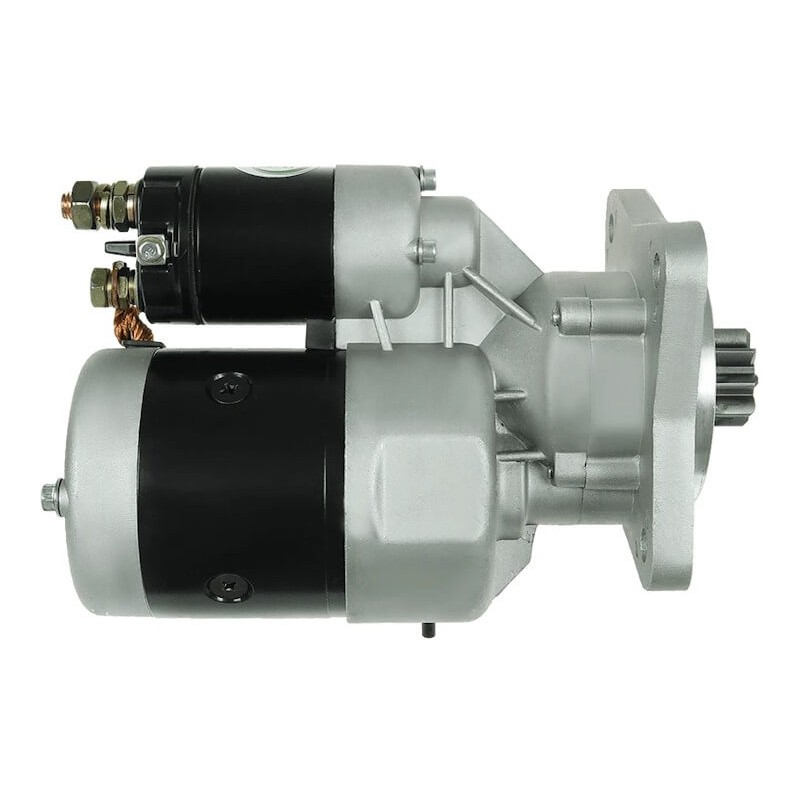

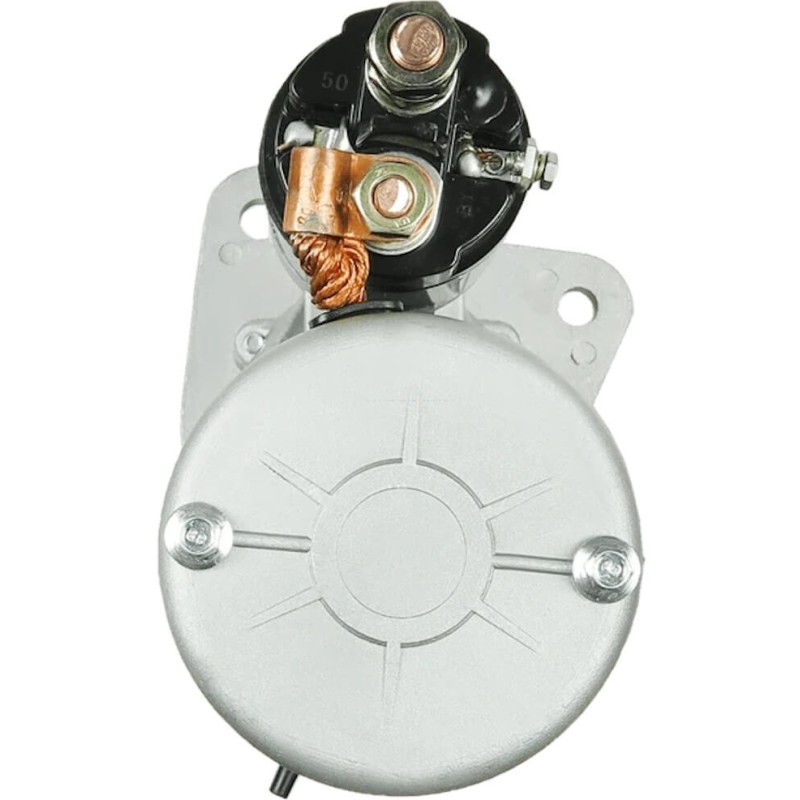

Starter replacing BOSCH 0001358027 / 0001358044/ 0001358046
Replacing Bosch
| 0001358013 |
| 0001358027 |
| 0001358044 |
| 0001358046 |
| 0001358049 |
| 0001358073 |
| 0001358305 |
| 0001359012 |
| 0001359027 |
| 0001359046 |
| 0001359049 |
| 0001359073 |
| 0001359078 |
| 0001362011 |
the new version with stepped launcher replaces the old model with nose cone
More info
Information:
Voltage 12
KW 2.7
A = Mount flange 89.00
B = Drive distance 28.00
F = Distance / Back 202.00
G = Distance / Front 28.00
H = Nbr of teeth 9
B+ M10
Gear type Gr
O = Distance 1 127.00
O = Distance 2 89.80
O = Distance 3 89.80
Rotation Cr
Nbr of mounting holes 3 (0)
Drive Tipo Steel
R = Total length mm 234.00
generic brand
replacing
| 01161384 | KHD | CGB-21143 | AINDE |
| 01163669 | KHD | CS114 | HC PARTS |
| 01164668 | KHD | G380900060010 | FENDT |
| 01164994 | KHD | MAV2140 | SIOM |
| 01164995 | KHD | MAV3320 | SIOM |
| 01170052 | KHD | MGN9142802 | WOODAUTO |
| 01173240 | KHD | S9044 | AS-PL |
| 01174166 | KHD | STB0103 | KRAUF |
| 01175886 | KHD | STG0103 | KRAUF |
| 01178026 | KHD | STP0103 | KRAUF |
| 105-10101 | ROBERT'S | STV0103 | KRAUF |
| 110536 | CARGO | X830100001 | FENDT |
| 116086 | CARGO | 10430 | EFEL |
| 1161384 | KHD | STRX764 | ELECTROLOG |
| 1163669 | KHD | 01175726 | KHD |
| 1164668 | KHD | 01301833 | KHD |
| 1164994 | KHD | 05710901 | BOMAG |
| 1170052 | KHD | 05710905 | BOMAG |
| 1173240 | KHD | 05710917 | BOMAG |
| 1174166 | KHD | 05710923 | BOMAG |
| 1175886 | KHD | 05710991 | BOMAG |
| 1178026 | KHD | 05710992 | BOMAG |
| 1178686 | DEUTZ | 1175726 | KHD |
| 255424 | KUHNER | 1301833 | KHD |
| 560.001.093 | PSH | 1516652R | DAF |
| 6000102270 | RENAULT | 1516667R | DAF |
| 6000102394 | RENAULT | 42498132 | IVECO |
| 6005001146 | RENAULT | 42522733 | IVECO |
| 6005003155 | RENAULT | 605720100027 | MWM |
| 6005003156 | RENAULT | 6107108 | LIEBHERR |
| 6005016395 | RENAULT | B13R12X4H7622 | KHD |
| 8212960 | POWERMAX | B15R12X3H7622 | KHD |
| 8447 | CEVAM | B23R12X3H7622 | KHD |
| 9142802 | MAGNETON | B28R12X4H7622 | KHD |
| B15R12X3H762 | KHD | V941501EX | CASE |
Fits
| Brand | Model | Typ | Year |
| DEUTZ-FAHR | DX 4.51 4.1 Diesel | [BF6L913] | 01/01/90 |
| DEUTZ-FAHR | M 980 3.8 Diesel | [F5L912] | 01/01/81 |
| DEUTZ-FAHR | DX 4.70 4.1 Diesel | [BF6L913T] | 01/01/92 |
| DEUTZ-FAHR | D 6807 3.8 Diesel | [F4L912] | 01/06/86 |
| DEUTZ-FAHR | DX 6.05 5.7 Diesel | [F6L912] | 01/06/86 |
| DEUTZ-FAHR | D 7007 3.8 Diesel | [F4L912] | 01/06/86 |
| DEUTZ-FAHR | DX 6.10A Diesel | [F6L912] | 01/06/86 |
| DEUTZ-FAHR | DX 6.30 6.1 Diesel | [F6L913] | 01/06/86 |
| DEUTZ-FAHR | DX 6.31 6.0 Diesel | [BF6L913T] | 01/01/90 |
| DEUTZ-FAHR | DX 6.50 6.1 Diesel | [BF6L913] | 01/06/86 |
| DEUTZ-FAHR | DX 3.10 2.8 Diesel | [F3L912] | 01/06/86 |
| DEUTZ-FAHR | DX 6.60 6.0 Diesel | [BF6L913] | 01/10/88 |
| DEUTZ-FAHR | DX 3.30 2.8 Diesel | [F3L912] | 01/06/86 |
| DEUTZ-FAHR | DX 7.10 6.1 Diesel | [BF6L913] | 01/06/86 |
| DEUTZ-FAHR | DX 3.50 3.1 Diesel | [F3L913] | 01/06/86 |
| DEUTZ-FAHR | DX 3.60 3.8 Diesel | [F4L912] | 01/06/86 |
| DEUTZ-FAHR | DX 3.70 3.8 Diesel | [F4L912] | 01/06/86 |
| DEUTZ-FAHR | Intrac 2003 3.8 | [F4L912H] | 08.1978-05.1980 |
| DEUTZ-FAHR | DX 3.80 4.1 Diesel | [F3L913] | 01/06/86 |
| DEUTZ-FAHR | Intrac 2004 3.8 | [F4L912] | 05.1978-08.1982 |
| DEUTZ-FAHR | DX 3.90 4.1 Diesel | [F3L913] | 01/06/86 |
| DEUTZ-FAHR | Intrac 630 | [F6L913] | 01.1988-12.1988 |
| DEUTZ-FAHR | Intrac 630 Turbo | [BF6L913T] | 01/01/89 |
| DEUTZ-FAHR | DX 4.10 3.8 Diesel | [F4L912] | 01/06/86 |
| DEUTZ-FAHR | M 1080 4.7 Diesel | [F5L912] | 01/01/81 |
| DEUTZ-FAHR | DX 4.30 4.1 Diesel | [F3L913] | 01/06/86 |
| DEUTZ-FAHR | M 1202 5.7 Diesel | [F5L912] | 01/01/80 |
| DEUTZ-FAHR | M 2385 5.7 Diesel | [F5L912] | 01/01/82 |
| DEUTZ-FAHR | DX 4.31 4.1 Diesel | [F3L913] | 01/01/91 |
| DEUTZ-FAHR | M 3330 2.8 | [F3L912] | 01/01/92 |
| DEUTZ-FAHR | DX 4.50 4.1 Diesel | [BF6L913T] | 01/06/86 |
| DEUTZ-FAHR | M 3360 3.8 | [F5L912] | 01/03/87 |
