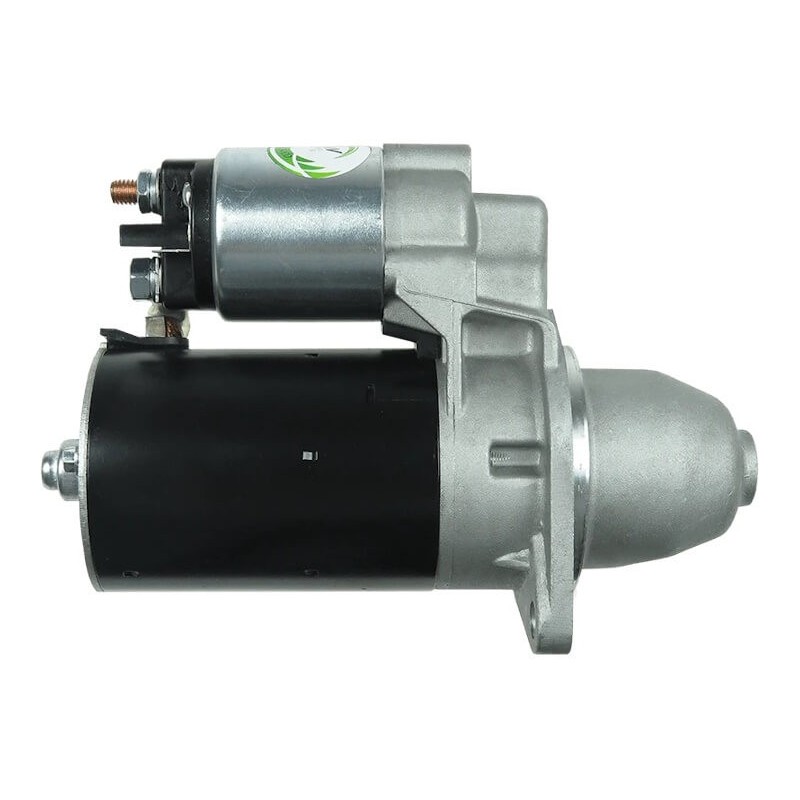

Starter replacing BOSCH 0001107090 for engine LOMBARDINI

Display all pictures

Starter replacing BOSCH 0001107090 for engine LOMBARDINI

Reference: w114105

Condition: New product

4 Item Items

Starter for engine LOMBARDINI

= LOMBARDINI 563R0780

DRS0583 / LRS02422

NO CORE EXCHANGE NEEDED

TWO YEARS WARRANTY

More info

More info

Physical Information
A	Mount flange	76.10
E	Mounting holes	10.50
E	Mounting holes 2	10.50
B	Drive distance	28.00
F	Distance / Back	141.00
G	Distance / Front	65.00
H	Nbr of teeth	11
I	B+	M8
N	Gear type	Gr
O	Distance mm	105.00
P	Rotation	COUNTER CLOCKWISE
R	Total length mm	220.00

Electrical Information
Voltage		12
KW		1.1

Generic Brand

0001107090
0001107090+
0001107090CO
1205100
563R0780
690515112
690515112010
690515112210
690515112210001
910583
DRS0583
LRS02422

NO CORE EXCHANGE NEEDED

TWO YEARS WARRANTY
