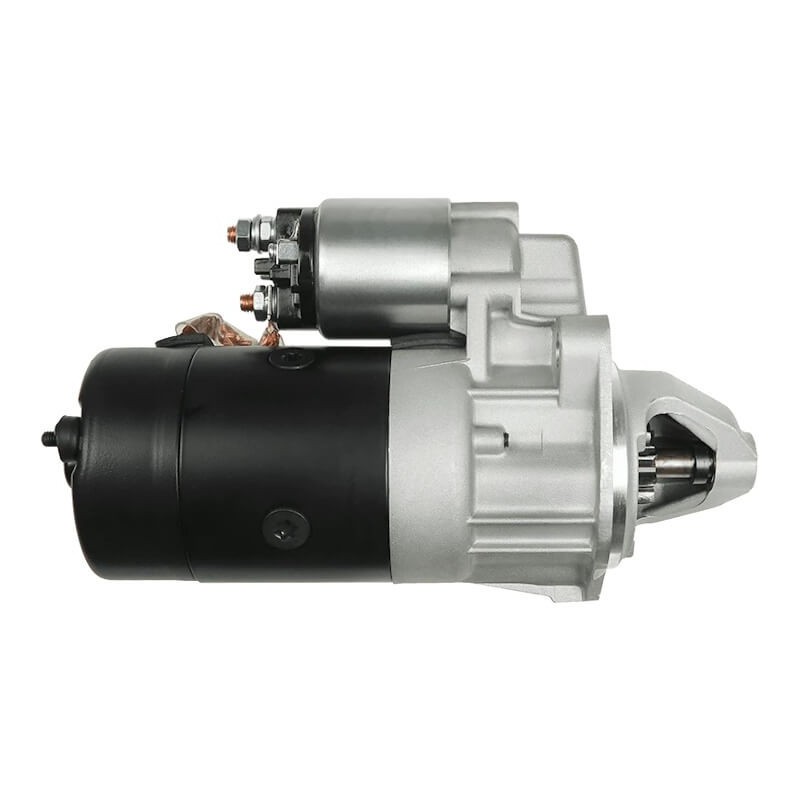

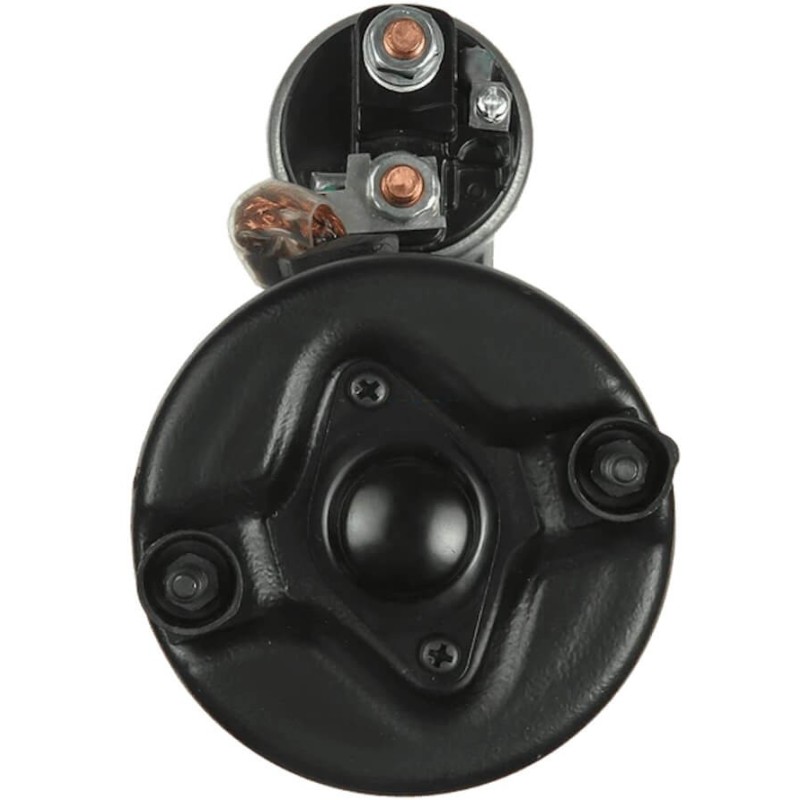

Starter for Jacobsen, JOHN DEERE , lombardini
= BOSCH 0001218776 / 0001218176 / 0001109357 / 0001109358
0001218819 / 9000331418
= DELCO REMY DRS0786
= JOHN DEERE FGV35532054
= LUCAS LRS02556
= VM 3.553.2054F / 3.553.2063F
Starter Information :
Voltage 12
KW 2.3
A = Mount flange 82.50
B = Drive distance 21.00
F = Distance / Back 212.00
G = Distance / Front 61.00
H = Nbr of teeth 9
B+ M8
Gear type Gr
O = Distance mm 105.00
Rotation Cr
Nbr of mounting holes 2 (0)
Drive Tipo Steel
generic brand
replacing
| 0001109357 | BOSCH | FGV35532054 | JOHN DEERE |
| 0001109358 | BOSCH | GS218776-A | GPARTS |
| 0001218176 | BOSCH | LRS02556 | LUCAS |
| 0001218776 | BOSCH | LRS2556 | LUCAS |
| 114055 | CARGO | MAV121690 | SIOM |
| 20401961BN | REAL | MAV122270 | SIOM |
| 20401961OE | REAL | RNL218176 | RNL |
| 25-4228 | ELSTOCK | S0424 | AS-PL |
| 254165 | KUHNER | STR50063 | WOODAUTO |
| 254165B | KUHNER | STRL158 | 3EFFE |
| 254165K | KUHNER | UNIT BOM 120-5093 | WAI / TRANSPO |
| 6010169 | SANDO | 220931 | ERA |
| 8010 | CEVAM | 331783 | LOGISTIK |
| CGB-28176 | AINDE | STR10230 | ELECTROLOG |
| CST10169AS | CASCO | 035532043F | CHRYSLER |
| CST10169GS | CASCO | 3.553.2054F | VM |
| DRS0786 | DELCO | 35532043F | CHRYSLER |
| EAA-121045 | EAA | 35532054F | VM |
| 58402610 | LOMBARDINI | 35532063F | VM |
| 58402680 | LOMBARDINI | 58400960 | LOMBARDINI |
fits:
For engines LOMBARDINI :
5LD675-2 - LDA672
5LD675-3 - LDA673
5LD675-4 - LDA674
Anciennes appellations : L27 - L40
5LD825-2 - LDA832
5LD825-3 - LDA833
5LD825-4 - LDA834
5LD824-3/B - LDA824-3/B
5LD930-3 - LDA933
5LD930-4 - LDA934
11LD535-3
11LD625-3
11LD626-3
LDA78/2 (provided that the assembly is identical)
LDA90/2 (provided that the assembly is identical)
LDW1503/M (MARINE MOTOR)
LDW2004/M (MARINE MOTOR)
For engines SLANZI :
DVA1550
DVA1750
DVA1800
DVA2700
DVA2001
DVA2350
For engine VM :
Série D700
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
