| 104634 | FARCOM |
| 12-098-015 | KOHLER |
| 12-098-015S | KOHLER |
| 12-098-04 | KOHLER |
| 12-098-08 | KOHLER |
| 12-098-13 | KOHLER |
| 12-098-13S | KOHLER |
| 12-098-15 | KOHLER |
| 12-098-15S | KOHLER |
| 12-098-20 | KOHLER |
| 12-098-22 | KOHLER |
| 12-098-22S | KOHLER |
| 12-098-22-S | KOHLER |
| 206-07113 | DIXIE |
| 255940 | KUHNER |
| 410-21041 | J&N |
| 5225040 | JOHNSON ELECTRIC |
| 630.557.132.200 | PSH |
| 6560040MO30SM | JOHNSON ELECTRIC |
| 6734620MO30SM | JOHNSON ELECTRIC |
| 88214952 | POWERMAX |
| 96755 | DELCO |
| AM131083 | JOHN DEERE |
| AM132235 | JOHN DEERE |
| MS-698 | DIXIE |
| RS41022 | DELCO |
| UD19208S | AS-PL |
| S134.126 | PSH |

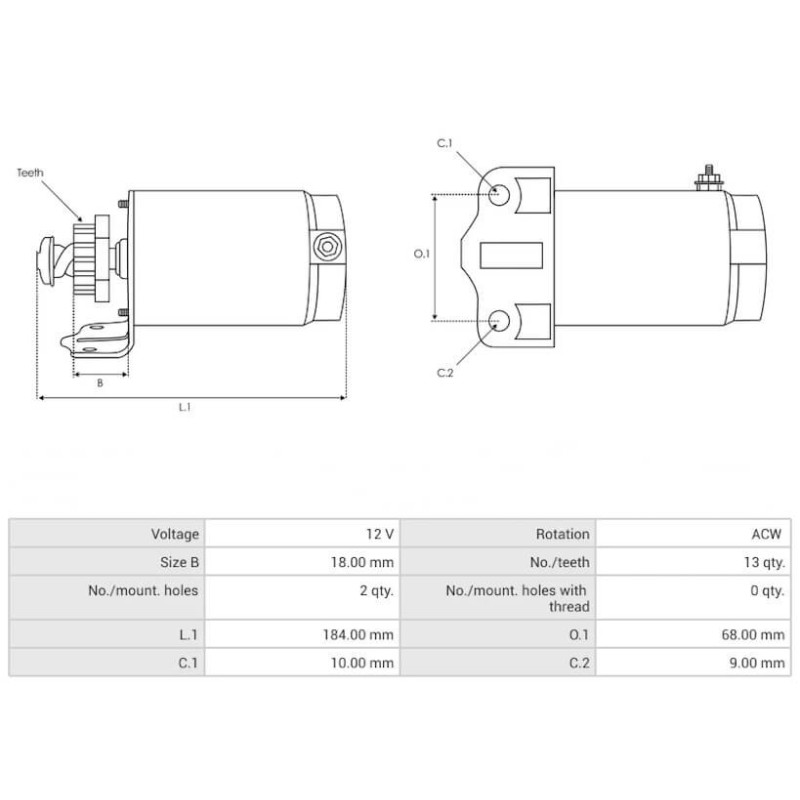

Specifications
Voltage [V] 12
Starter rotation ACW
Size B [mm] 18.00
Number of teeth [qty.] 13
Number of openings in the head [qty.] 2
Number of threaded holes [qty.] 0
L.1 [mm] 184.00
O.1 [mm] 68.00
C.1 [mm] 10.00
C.2 [mm] 9.00
| Brand | Model | Typ | Year |
| CUB CADET | 1515 | 15H.P. | 01.2002 - 12.2002 |
| CUB CADET | Z42 | 15H.P. | 01.1997 - 12.1999 |
| CUB CADET | 1517 | 17H.P. | 01.2002 - 12.2002 |
| CUB CADET | LT1018LE | 18H.P. | 01.2004 - 12.2004 |
| JOHN DEERE | Sabre 17.542HS | 01.2002 - 12.2003 | |
| JOHN DEERE | LT133 | 13H.P. | - |
| JOHN DEERE | STX46 | 15H.P. | 01.1995 - 12.2005 |
| JOHN DEERE | LT155 | 15H.P. | - |
| JOHN DEERE | LTR155 | 15H.P. | - |
| JOHN DEERE | LT150 | 15H.P. | - |
| JOHN DEERE | LT160 | 16H.P. | - |
| JOHN DEERE | L110 | 17.5H.P. | 01.2003 - 12.2005 |
| JOHN DEERE | 7G18 | 18H.P. | 01.2009 - 12.2011 |
| JOHN DEERE | 7G18 | CV943T-15H.P. | 01.2005 - 12.2009 |
| JOHN DEERE | SST15 | CVS15S-15H.P. | 01.2001 - 12.2004 |
| NEW HOLLAND | MY16 | 16H.P. | 01.2004 - 12.2014 |
| NEW HOLLAND | MZ17H | 18H.P. | - |
| SCOTTS | S2048 | 20H.P. | 01.1999 - 12.2009 |
| TORO | Wheel Horse 265-H | 15H.P. | 01.1998 - 12.2008 |
| TORO | 265-6 | 15H.P. | 01.1996 - 12.2000 |
| TORO | 265-H | 15H.P. | 01.1996 - 12.2002 |
| TORO | 266-HE | 16H.P. | 01.2001 - 12.2002 |
| TORO | 266-H | 16H.P. | 01.2001 - 12.2002 |
| TORO | 416XT | 16H.P. | 01.2003 - 12.2004 |
| TORO | Z17-52 TimeCutter Z | 17H.P. | 01.2001 - 12.2002 |
| TORO | Z17-44 TimeCutter Z | 17H.P. | 01.2001 - 12.2002 |
| TORO | 18-52ZX TimeCutter ZX | 18H.P. | 01.2003 - 12.2004 |
| TORO | MZ17H | 18H.P. | 01.2006 - 12.2006 |
| TORO | 410 | 460cc | 01.2005 - 12.2005 |
| TORO | ZX440 TimeCutter | 490cc | 01.2006 - 12.2008 |
| TORO | Wheel Horse 265-6 | CV15S-PS41550-15H.P. | 01.1998 - 12.2008 |
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
