W114268

0R4321 CATERPILLAR
1006929 CATERPILLAR
114268 CARGO
143-0541 CATERPILLAR
143-0543 CATERPILLAR
18505N WAI / TRANSPO
228000-1831 DENSO
228000-1832 DENSO
246-25242 DIXIE
254258 KUHNER
254258L KUHNER
45-4267 ELSTOCK
8182 CEVAM
88214710 POWERMAX
91-26-5423 WILSON
CST40619AS CASCO
Read more
€169.90 Tax included
Price may vary according to your VAT rate
2-year warranty
No instructions, no return of the old
Secure payments

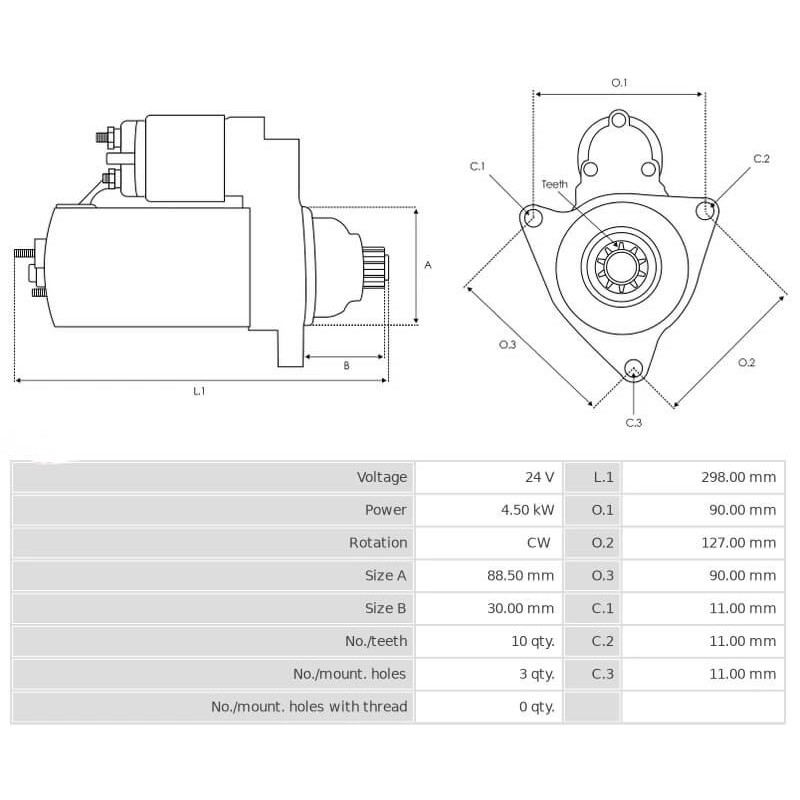

Features

Spécification Electricals
Voltage 24
Kw 4.5
Spécification Physique
H Nbr of teeth 10
P Rotation Cr
N Gear type Gr
A Mount flange 89.00
I B+ M10
B Drive distance 29.00
E Mounting holes 11.00
E Mounting holes 2 11.00
E Mounting holes 3 11.00
F Distance / Back 185.00
G Distance / Front 58.00
M Mount. bracket Non
O Distance mm 90.00
O Distance 2 127.00
O Distance 3 90.00
R Total length mm 290.00

generic brand

replacing

0R4321 CATERPILLAR LRS02594 LUCAS
1006929 CATERPILLAR LRS2594 LUCAS
114268 CARGO MAV426190 SIOM
143-0541 CATERPILLAR S-8655 DIXIE
143-0543 CATERPILLAR S6282S AS-PL
18505N WAI / TRANSPO STN4268 KRAUF
228000-1830 DENSO STR70125 WOODAUTO
228000-1831 DENSO PRSL170 3EFFE
228000-1832 DENSO STRL170 3EFFE
246-25242 DIXIE CGB-23162 AINDE
254258 KUHNER 641.503.103.050 PSH
254258L KUHNER 641.503.103.260 PSH
45-4267 ELSTOCK 641.503.103.510 PSH
8182 CEVAM 225-7304 CATERPILLAR
88214710 POWERMAX OR4321 CATERPILLAR
91-26-5423 WILSON 228080-1832 DENSO
CST40619AS CASCO 9722809183 DENSO
CST40619GS CASCO 6040619.0 SANDO
DRS0206 DELCO 6040619.1 SANDO
DSN2042 DENSO 20432916BN REAL
336543 LOGISTIK 20432916OE REAL
5140095 MEAT & DORIA S24DE0093A2 SIDAT
STR6580 ELECTROLOG S24DE0093 SIDAT
225-3150 CATERPILLAR
2873K406 PERKINS

used on :

Brand Model Tipo year
CATERPILLAR 924G 6.0 [3056E] 01.2000-12.2007
CATERPILLAR 924GZ [3056T] 01.2000-12.2007
CATERPILLAR CS-433C [3054T] 01.1998-12.2005
HYDREMA 926D 4.4 [1104D-44TA] 01/01/09
TEREX TL160 4.4 [1104D-44T] 01.2006-12.2013
