w114264

Starter replacing :

ISKRA AZF4181 / AZF4224 / AZF4576 / IS1105

JCB 320/09022, 320/09032, 320/09035, 320/09144, 320/09346

NO CORE EXCHANGE NEEDED

TWO YEARS WARRANTY

Read more
€219.00 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Electrical information
Voltage 12
Kw 4.2

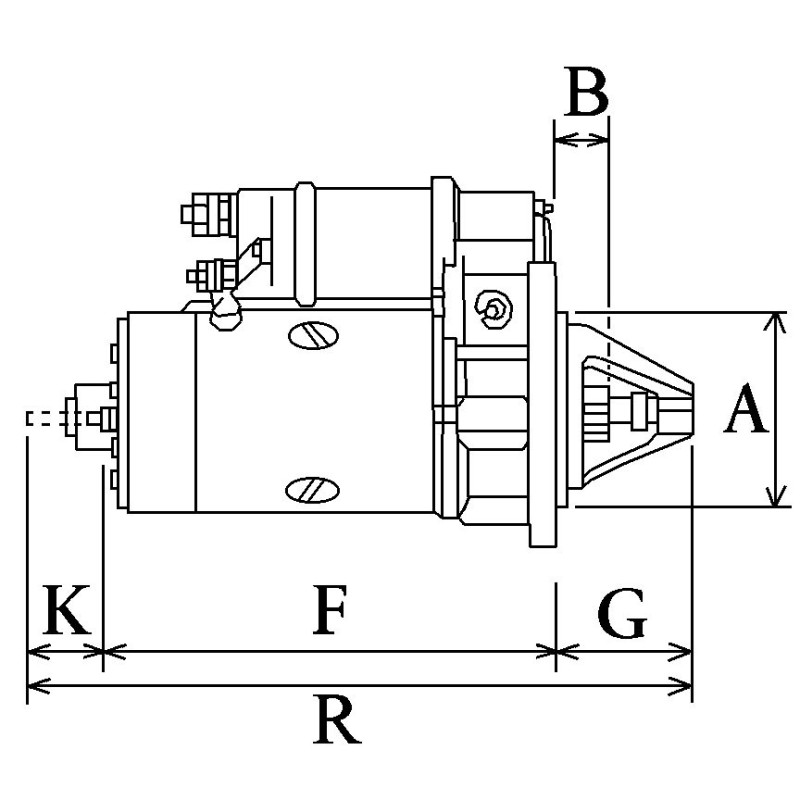

Physical Information
H Nbr of teeth 11
P Rotation Cr
N Gear type Gr
A Mount flange 89.00
I B+ M10
B Drive distance 21.00

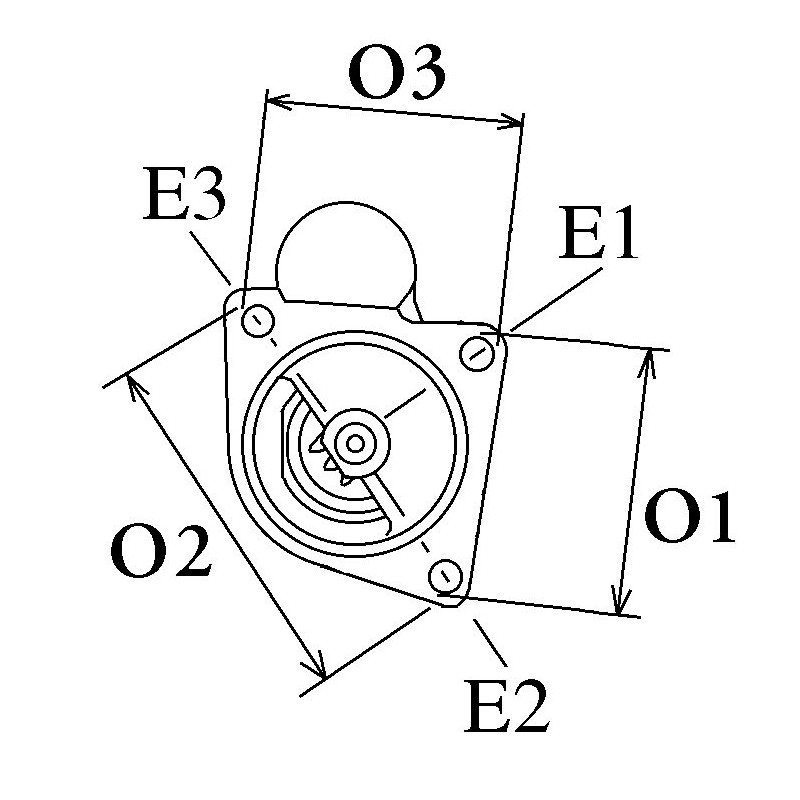

E Mounting holes 11.00
E Mounting holes 2 11.00
E Mounting holes 3 11.00
F Distance / Back 247.00
G Distance / Front 69.50
S B- M8
K Thread length mm 19.00
M Mount. bracket Non
O Distance mm 89.50
O Distance 2 87.50
O Distance 3 127.00
R Total length mm 349.50

generic brand

Replacing
11.131.292 ISKRA
11.131.697 ISKRA
11.131.711 ISKRA
11.131.848 ISKRA
320-09022 Jcb
320-09026 Jcb
320-09032 Jcb
320-09035 Jcb
320-09144 Jcb
320-09346 Jcb
320-09409 Jcb
320-09452 Jcb
320-09454 Jcb
AZF4181 ISKRA
AZF4186 ISKRA
AZF4224 ISKRA
AZF4576 ISKRA
11131292 MAHLE
11131697 MAHLE
11131711 MAHLE
11131848 MAHLE
231744 Cargo
30230N WAI
32009022 JCB
32009035 JCB
32009346 JCB
32009452 JCB
3552682M92 MASSEY FERGUSON
35532039F VM (STABILIMENTI MEC
700507113 PSH
910117 EDR
AZF4181 MAHLE
AZF4224 MAHLE
AZF4576 MAHLE
DRS0117 DELCO REMY
IS1105 MAHLE
KTR1401014226 KTR
MS84 MAHLE
STR7936sa Electrolog

SIE1101               Evercraft

320/09454     / 320/09452        JCB

Used onsur :

fits:

MakerVehicleTipoEngineLtr
JCB AGRICULTURAL LOADALLS 524-50-AGRI
JCB AGRICULTURAL LOADALLS 526-56-AGRI
JCB AGRICULTURAL LOADALLS 527-55-AGRI
JCB AGRICULTURAL LOADALLS 531-70-AGRI
JCB AGRICULTURAL LOADALLS 535-95-AGRI
JCB AGRICULTURAL LOADALLS 536-60-AGRI
JCB AGRICULTURAL LOADALLS 536-70-AGRI
JCB AGRICULTURAL LOADALLS 541-70-AGRI
JCB BACKHOE LOADERS 2CX JCB444 4.4
JCB BACKHOE LOADERS 3CX/PLUS/CLL JC444/Turbocharged 4.4
JCB BACKHOE LOADERS 4CX JCB444 4.4
JCB COMPACT TRACK LOADERS 225T ExoMax, 55kW
JCB DIESELMAX NA,TC,TCA Ind. EPA Tier 2/Stage 2 4.4
JCB DIESELMAX NA,TC,TCA Power Generation 4.4
JCB DIESELMAX TC,TCA Ind. EPA Tier 3/Stage 3A 4.4
JCB DIESELMAX TCA Stage 3A; 100-120HP 4.8
JCB ECOMAX TCAE Tier 4, 74-125HP 4.4
JCB ECOMAX TCAE Tier 4; 145-173HP 4.8
JCB ENGINES JCB444 4-cyl 4.4
JCB GENSETS G66 QX 448 TG-60, 60kW 4.8
JCB LOADALL 526-56 JCB 4-cyl; 81kW, Tier 3 4.4
JCB LOADALL 527-58 JCB 4-cyl; 81kW, Tier 3 4.4
JCB LOADALL 531-70 JCB ECOMAX; 4-cyl; 55kW 4.4
JCB LOADALL 533-105 JCB ECOMAX; 4-cyl; 55kW 4.4
JCB LOADALL 535-125-HiViz JCB ECOMAX; 4-cyl; 55kW 4.4
JCB LOADALL 535-140-HiViz JCB ECOMAX; 4-cyl; 55kW 4.4
JCB LOADALL 535-95 JCB ECOMAX; 4-cyl; 55kW 4.4
JCB LOADALL 536-60 JCB 4-cyl; 81-93kW, Tier 3 4.4
JCB LOADALL 540-140 JCB ECOMAX; 4-cyl; 55kW 4.4
JCB LOADALL 540-170 JCB ECOMAX; 4-cyl; 81kW 4.4
JCB LOADALL 541-70 JCB ECOMAX; 4-cyl; 55kW 4.4
JCB LOADALL 550-140
JCB LOADALL 550-170
JCB LOADALL 550-80 JCB ECOMAX; 4-cyl; 93kW 4.4
JCB LOADING SHOWELS 540-140
JCB ROUGH TERRAIN FORKLIFTS 926-2WD/4WD TC63 4.4
JCB ROUGH TERRAIN FORKLIFTS 930-2WD/4WD TC63
JCB ROUGH TERRAIN FORKLIFTS 940-2WD/4WD TC63 4.4
JCB SKID STEER LOADERS 110/HF TC63 4.4
JCB SKID STEER LOADERS 190/HF TC63 4.4
JCB SKID STEER LOADERS 225 EcoMAX TCAE-55; T4F; 55kW 4.4
JCB SKID STEER LOADERS 226 T EcoMAX TCAE-55; T4F; 55kW 4.4
JCB SKID STEER LOADERS 260 EcoMAX TCAE-55; T4F; 55kW 4.4
JCB SKID STEER LOADERS 260 JCB TCA.74 4.4
JCB SKID STEER LOADERS 260 T EcoMAX TCAE-55; T4F; 55kW 4.4
JCB SKID STEER LOADERS 260T JCB 4.4
JCB SKID STEER LOADERS 280 EcoMAX TCAE-55; T4F; 55kW 4.4
JCB SKID STEER LOADERS 280 JCB 4.4
JCB SKID STEER LOADERS 300 EcoMAX TCAE-55; T4F; 55kW 4.4
JCB SKID STEER LOADERS 300 T EcoMAX TCAE-55; T4F; 55kW 4.4
JCB SKID STEER LOADERS 320 T EcoMAX TCAE-55; T4F; 55kW 4.4
JCB SKID STEER LOADERS 320T JCB 4.4
JCB SKID STEER LOADERS 325 T EcoMAX TCAE-55; T4F; 55kW 4.4
JCB SKID STEER LOADERS 330 EcoMAX TCAE-55; T4F; 55kW 4.4
JCB TELAMASTER TN 220 Agri JCB 4-cyl; 55kW, Tier 3 4.4
JCB TELEMASTER TM 180 Agri JCB 4-cyl; 48kW, Tier 3 4.4
JCB TELEMASTER TM 310 AGRI JCB 4-cyl; 97kW, Tier 3 4.4
JCB TELEMASTER TM 310-WM 4.4
JCB TELEMASTER TM 320 Ecomax, 444TA41; 4-cyl, 93kW 4.4
JCB TELEMASTER TM 320 S Ecomax, 4-cyl, 108kW 4.8
JCB TELEMASTER TM 320 VM Ecoma, 4-cyl, 93kW 4.4
JCB TELESCOPIC HANDLERS 535-95 JCB; 55kW; stage IIIB 4.4
JCB TELESCOPIC HANDLERS 540-140 JCB; 444; 97kW; Tier 4i 4.4
JCB TELESCOPIC HANDLERS 540-200 JCB 444, 85kW, Tier 4i 4.4
JCB VIBRATORY COMPACTORS VM115PD/HD/HPD 4.4
JCB VIBRATORY COMPACTORS VM137 JCB 448 TA, 108kW, Tier 4i 4.8
JCB VIBRATORY TANDEM ROLLERS VTM860
JCB WASTEMASTER LOADALLS 527-55-WM
JCB WASTEMASTER LOADALLS 531-70-WM
JCB WASTEMASTER LOADALLS 541-70-WM
JCB WASTMASTER SKID LOADERS 110-WM TC68 4.4
JCB WASTMASTER SKID LOADERS 190-WM TC63 4.4
JCB WHEELED LOADING SHOVELS 411HT,WM SLB 4.4
JCB WHEELED LOADING SHOVELS 411HT-SHL,WM SLB 4.4
JCB WHEELED LOADING SHOVELS 412-AGRI 4.4
JCB WHEELED LOADING SHOVELS 412-WM 4.4
JCB WHEELED LOADING SHOVELS 414-WM 4.4
JCB WHEELED LOADING SHOVELS 414S-AGRI 4.4
JCB WHEELED LOADING SHOVELS 416-WM 4.4
JCB WHEELED LOADING SHOVELS 416HT SLB 4.4
JCB WHEELED LOADING SHOVELS 416S-AGRI 4.4
MOSA GE 125 JSX / JMSX EAS JCB444G-TCA; 105kW 4.4
MOSA GE 145 JSX / JMSX EAS JCB448G-TCA; 122kW 4.8
MOSA GE 65 JSX / JMSX EAS JCB444G-TC1; 95kW 4.4
MOSA GE 85 JSX / JMSX EAS JCB444G-TC2; 78,5kW 4.4
PALAZZANI INDUSTRIE PALE GOMATE PL1105 JCB 448, 111kW, tier 4i 4.8
PALAZZANI INDUSTRIE PALE GOMATE PL185 JCB 444, 96kW, tier 4i 4.4
PALAZZANI INDUSTRIE PALE GOMATE PL195 JCB 444, 96kW, tier 4i 4.4
PALAZZANI INDUSTRIE PALE TELESCOPICE PT1120 JCB 448, 111kW, tier 4i 4.8
PALAZZANI INDUSTRIE PALE TELESCOPICE PT182 JCB 444, 96kW, tier 4i 4.4
SIDERMECCANICA ENGINE-PUMP UNIT SM100-125 B JCB 4-cyl; 63kW, Tier 3 4.4
SIDERMECCANICA ENGINE-PUMP UNIT SM125-175 A JCB 4-cyl; 74kW, Tier 3 4.4
SIDERMECCANICA ENGINE-PUMP UNIT SM125-175 B JCB 4-cyl; 63kW, Tier 3 4.4
SIDERMECCANICA ENGINE-PUMP UNIT SM125-175 B3 JCB 4-cyl; 120kW, Tier 3 4.4
