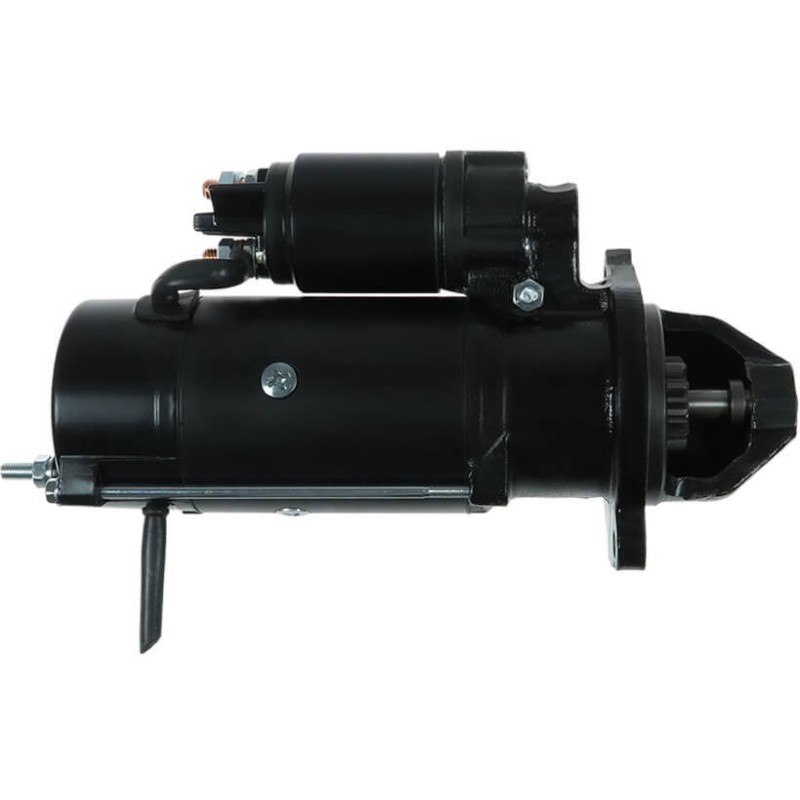

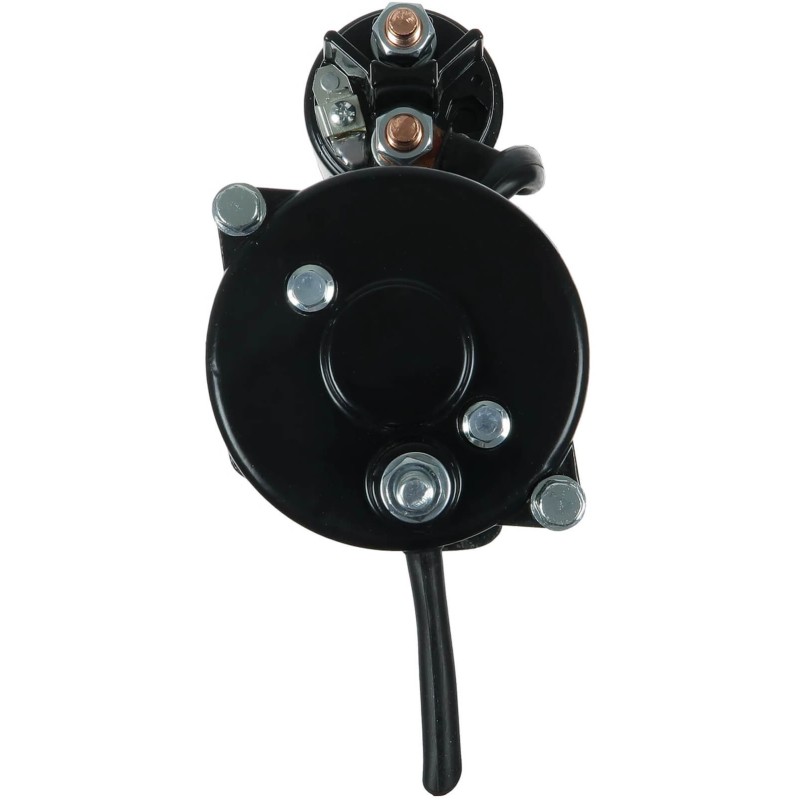

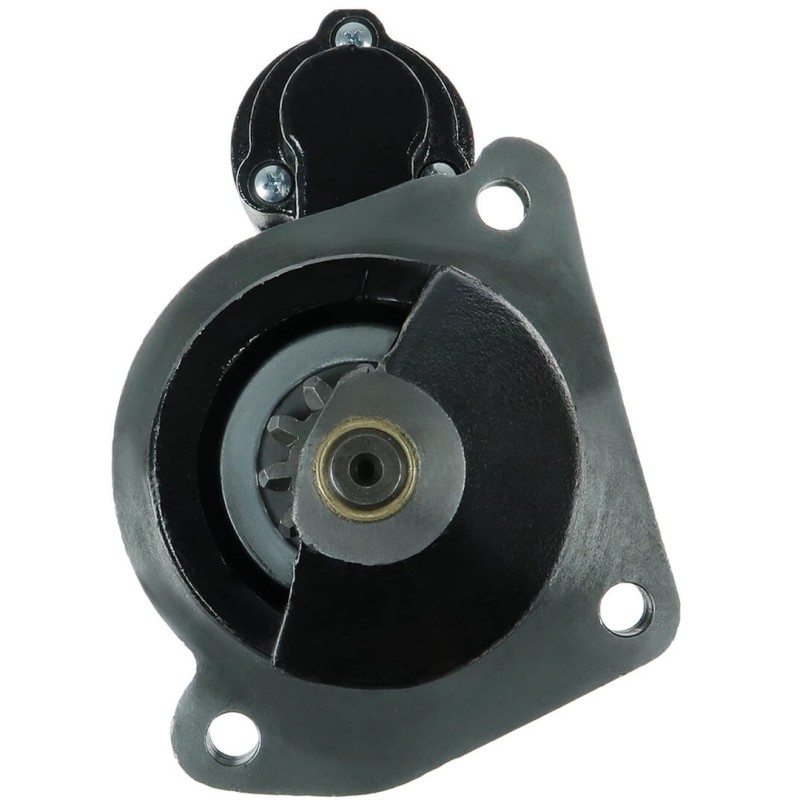

Starter replacing AZF4211 / AZF4225 / AZF4267 / AZF4579 / 320-A9453 / 320-A9080 for HATZ / JCB engines

W115776 | Brand : SEG AUTOMOTIVE

Starter for HATZ 1B40 0.5 / JCB model TCA 4.4 / NA 4.4

To ensure a proper match, please compare your part number to the one listed in the ad.

If you have any questions, please feel free to contact us with your part number.

Starter replacing :

ISKRA AZF4211 / AZF4225 / AZF4267 / AZF4579 / 320-A9453 / 320-A9080

JCB 320-09023, 320-09033, 320-09347, 320-09453, 320-A9080

TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED

Read more
€178.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Reference

11.131.303 ISKRA / LETRIKA
11.131.805 ISKRA / LETRIKA
11.131.849 ISKRA / LETRIKA
11.131.995 ISKRA / LETRIKA
11.132.230 ISKRA / LETRIKA
182-30159 ROBERT'S
320/09023 JCB
320/09033 JCB
320/09347 JCB
320/09453 JCB
320/A9080 JCB
AZF4211 ISKRA / LETRIKA
AZF4225 ISKRA / LETRIKA
AZF4267 ISKRA / LETRIKA
AZF4338 ISKRA / LETRIKA
AZF4579 ISKRA / LETRIKA
IS1106 ISKRA / LETRIKA
LETIS1106 WOODAUTO
MS5 MAHLE
S9097 AS-PL
UD11164S AS-PL
S24ML0149 SIDAT
S24ML0149A2 SIDAT
701.512.113.311 WAI
701.512.113.090 WAI
WOOSTR60702 WOODAUTO
CST21617GS CASCO
CST21617AS CASCO
20419716BN REAL
20419716OE REAL
6021617.0 SANDO
6021617.1 SANDO
33415N WAI
UD100903S AS-PL
STR7966 ELECTROLOG
32009023 JCB
32009033 JCB
32009347 JCB
32009453 JCB
320A9080 JCB
115776 CARGO
F032115776 CARGO
S135.480 WAI
S144.778 WAI
AM-2768 AUTO MAGNETO

Features

Electrical Information
Voltage 24
KW 4.0

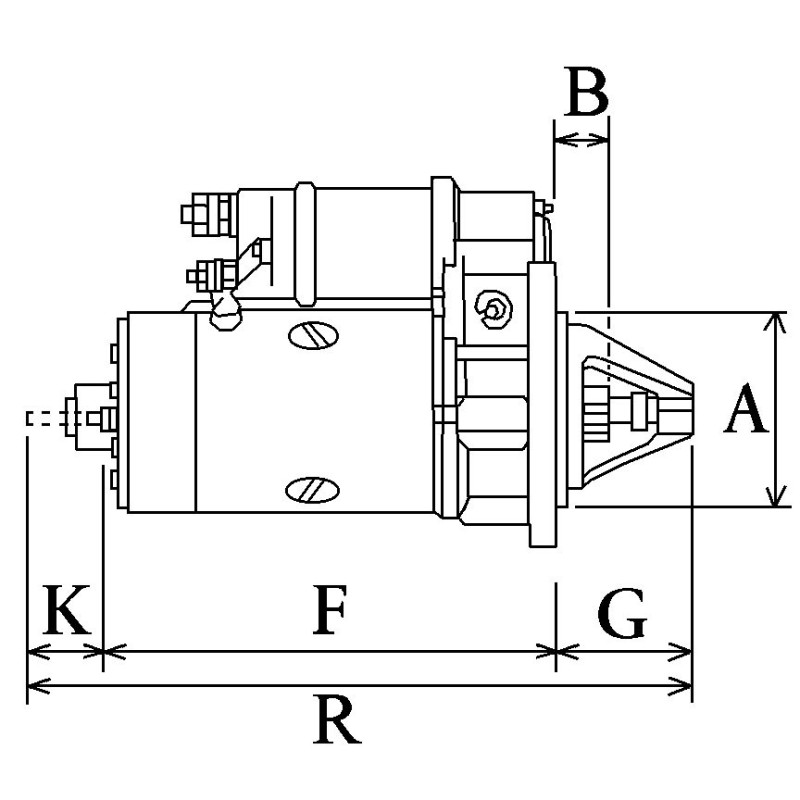

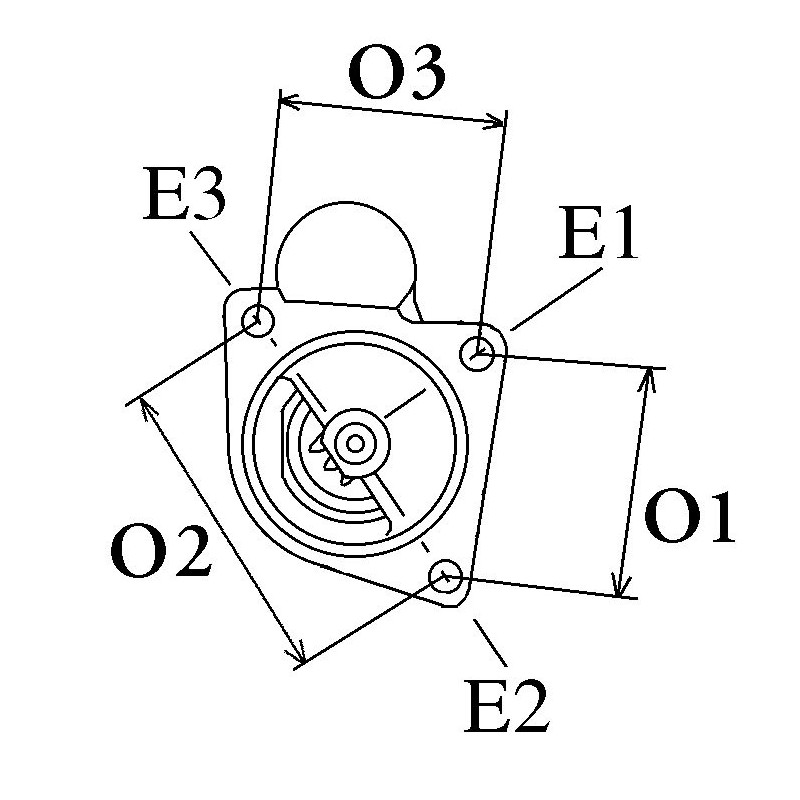

Physical Information
A Mount flange 89.00
E Mounting holes 11.20
E Mounting holes 2 11.20
E Mounting holes 3 11.20
B Drive distance 20.00
F Distance / Back 250.00
G Distance / Front 68.50
H Nbr of teeth 11
I B+ M10
S B- M8
N Gear type Gr
O Distance mm 89.80
O Distance 2 89.80
O Distance 3 127.00
P Rotation CW
R Total length mm 352.00

Replacing :

Numéro from reference Maker
UD11164S AS-PL
11.131.303 ISKRA / LETRIKA
11.131.805 ISKRA / LETRIKA
11.131.849 ISKRA / LETRIKA
11.131.995 ISKRA / LETRIKA
11.132.230 ISKRA / LETRIKA
701.512.113 ISKRA / LETRIKA
AZF4211 ISKRA / LETRIKA
AZF4225 ISKRA / LETRIKA
AZF4267 ISKRA / LETRIKA
AZF4338 ISKRA / LETRIKA
AZF4579 ISKRA / LETRIKA
IS1106 ISKRA / LETRIKA
320/09023 JCB
320/09033 JCB
320/09347 JCB
320/09453 JCB
320/A9080 JCB
MS5 MAHLE
182-30159 ROBERT'S
LETIS1106 WOODAUTO
S9097 AS-PL

TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED

Mounting on

Brand Model Typ
HATZ 1B40 0.5
JCB TCA 4.4
JCB TC 4.4
JCB NA 4.4
JCB Engine 4.4 NA
JCB Engine 4.4 TC
JCB Engine 4.4 TCA
JCB Engine 4.4 TCAE
JCB TCAE 4.8
JCB TCA 4.8
JCB Engine 4.8 TCA
JCB Engine 4.8 TCAE
