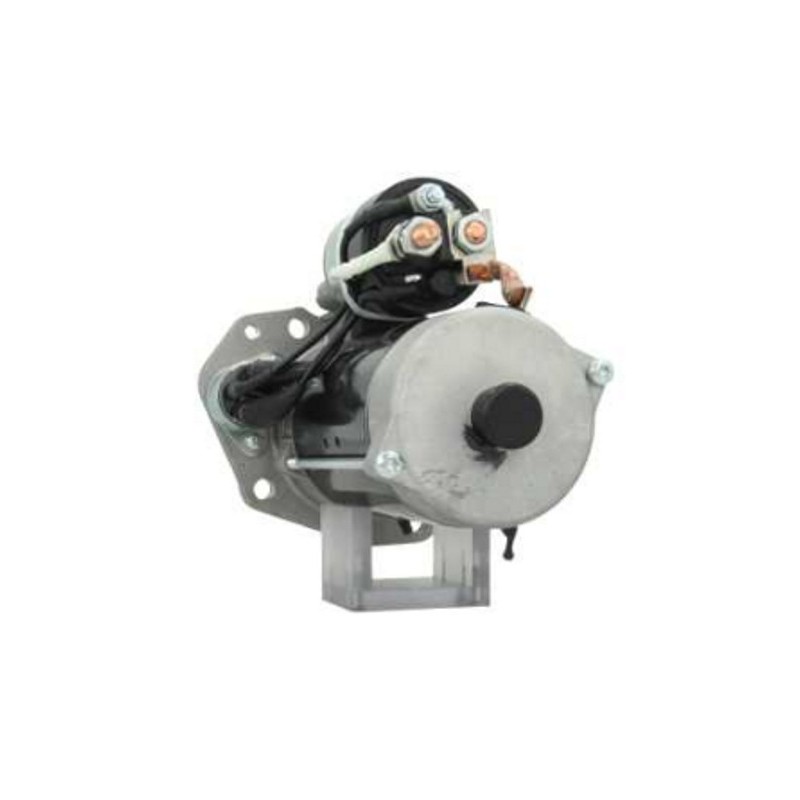

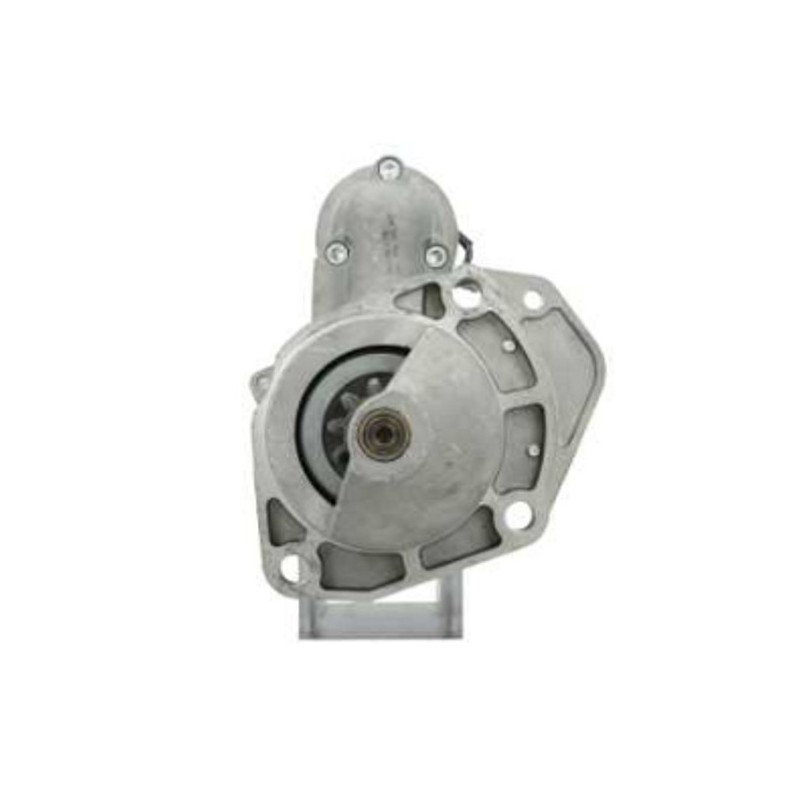

Starter replacing BOSCH 0001231016 / 0001231046 / 0001263005
Starter for IVECO / Ginaf Trucks
= 0986020170 / 0001263006 / 0001263021 / 0001263022
= ISKRA 11.131.846 / azf4237 / IS1264 / IVECO 2995986 / 42498718 / 48922338 / CUMMINS 5259579 / 5265096
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Physical Information | ||
|---|---|---|
| A | Mount flange | 89.00 |
| E | Mounting holes | 10.90 |
| E | Mounting holes 2 | 10.90 |
| E | Mounting holes 3 | 10.90 |
| B | Drive distance | 48.00 |
| F | Distance / Back | 207.50 |
| G | Distance / Front | 96.00 |
| H | Nbr of teeth | 10 |
| I | B+ | M10 |
| N | Gear type | Gr |
| O | Distance mm | 89.80 |
| O | Distance 2 | 89.80 |
| O | Distance 3 | 127.00 |
| P | Rotation | Cr |
| R | Total length mm | 315.00 |
Electrical Information | ||
|---|---|---|
| Voltage | 24 | |
| KW | 4.0 | |
Generic Brand
| 0001231016 | BOSCH |
| 0001231046 | BOSCH |
| 0001263005 | BOSCH |
| 0001263006 | BOSCH |
| 0001263021 | BOSCH |
| 0001263022 | BOSCH |
| 11.131.846 | ISKRA |
| 2995986 | IVECO |
| 42498718 | IVECO |
| 48922338 | IVECO |
| 4892338 | IVECO |
| 500059586 | IVECO |
| 5259579 | CUMMINS |
| 5265096 | CUMMINS |
| 5801381129 | IVECO |
| 63522310 | MAGNETI MARELLI |
| azf4237 | ISKRA |
| cs1268 | HC-PARTS |
| 0001231016 |
| 0001231046 |
| 0001231146 |
| 0001251009 |
| 0001251010 |
| 0001263021 |
| 0001263022 |
| 0986020170 |
| 111318 |
| 11131846 |
| 112498 |
| 1206119 |
| 23300LA4MA |
| 2995986 |
| 30123 |
| 30123N |
| 42498718 |
| 453353 |
| 458332 |
| 4721SP |
| 4892338 |
| 501504103 |
| 501510103 |
| 5801381129 |
| 5801577135 |
| 860716 |
| 920170 |
| AZF4237 |
| CS1268 |
| CST10773 |
| DRT0170 |
| HCS1268 |
| IS1264 |
| KTR1003008206 |
| LRS02180 |
| MS100 |
| STR1238sa |
| STR2315 |
for
| Brand | Model | Typ | Year |
| HEULIEZ | GX 137 6.7 | 01/10/13 | |
| HEULIEZ | GX 137 L 6.7 | 01/10/13 | |
| HEULIEZ | GX 337 6.7 | 01/10/13 | |
| HEULIEZ | GX 427 BHNS 7.8 | 01/10/13 | |
| IRISBUS | 10.8M 6.7 | [F4AFE611D] | 01/05/16 |
| IRISBUS | 12M 6.7 | [F4AFE611D] | 01/05/16 |
| IRISBUS | 13M 6.7 | [F4AFE611D] | 01/05/16 |
| IRISBUS | GX 127 5.9 | 01/04/10 | |
| IVECO | 140 E 24 5.9 | [F4AE0681B] | 01/09/00 |
| IVECO | 140 E 24 5.9 | [F4AE0681B] | 01/09/00 |
| IVECO | 140 E 24 5.9 | [F4AE0681B] | 01/09/00 |
| IVECO | 75 E 15 3.9 | [F4AE0481C] | 01/09/00 |
| IVECO | 140 E 24 5.9 | [F4AE0681B] | 01/09/00 |
| IVECO | 75 E 15 3.9 | [F4AE0481C] | 01/09/00 |
| IVECO | 180 E 24 5.9 | [F4AE0681B] | 01/09/00 |
| IVECO | 75 E 15 3.9 | [F4AE0481C] | 01/09/00 |
| IVECO | 180 E 24 5.9 | [F4AE3681D] | 01/09/00 |
| IVECO | 140 E 28 5.9 | [F4AE0681A] | 01/09/06 |
| IVECO | 140 E 28 5.9 | [F4AE3681E] | 01/09/06 |
| IVECO | 75 E 17 3.9 | [F4AE0481A] | 01/09/00 |
| IVECO | 75 E 17 3.9 | [F4AE0481A] | 01/09/00 |
| IVECO | 75 E 17 3.9 | [F4AE3481B] | 01/09/00 |
| IVECO | 75 E 17 3.9 | [F4AE3481B] | 01/09/00 |
| IVECO | 75 E 18 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 180 E 28 5.9 | [F4AE0681A] | 01/09/00 |
| IVECO | 75 E 18 5.9 | [F4AE0681E] | 01/09/00 |
| IVECO | 150 E 18 5.9 | [F4AE0681E] | 01/09/00 |
| IVECO | 180 E 28 5.9 | [F4AE0681A] | 01/09/00 |
| IVECO | 75 E 18 5.9 | [F4AE0681E] | 01/09/00 |
| IVECO | 150 E 18 5.9 | [F4AE0681E] | 01/09/00 |
| IVECO | 180 E 28 5.9 | [F4AE3681E] | 01/09/00 |
| IVECO | 180 E 28 5.9 | [F4AE3681E] | 01/09/00 |
| IVECO | 90 E 17 3.9 | [F4AE0481A] | 01/09/00 |
| IVECO | 90 E 17 3.9 | [F4AE0481A] | 01/09/00 |
| IVECO | 150 E 21 5.9 | [F4AE0681C] | 01/09/00 |
| IVECO | 90 E 17 3.9 | [F4AE3481B] | 01/09/00 |
| IVECO | 150 E 21 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 260 E 28 5.9 | [F4AE0681A] | 01/09/00 |
| IVECO | 90 E 18 5.9 | [F4AE0681E] | 01/09/00 |
| IVECO | 120 E 18 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 150 E 21 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 260 E 28 5.9 | [F4AE3681E] | 01/01/12 |
| IVECO | 90 E 18 5.9 | [F4AE0681E] | 01/09/00 |
| IVECO | 120 E 18 5.9 | [F4AE0681E] | 01/09/00 |
| IVECO | 150 E 21 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 260 E 28 5.9 | [F4AE3681E] | 01/01/12 |
| IVECO | 90 E 21 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 120 E 18 5.9 | [F4AE0681E] | 01/09/00 |
| IVECO | 150 E 21 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 180 E 30 5.9 | [F4AE0681A] | 01/08/06 |
| IVECO | 90 E 21 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 90 E 21 5.9 | [F4AE3681B] | 01/09/00 |
| IVECO | LE 285 6.7 | 01/01/16 | |
| IVECO | LE 320 6.7 | [F4AFE611D] | 01/01/16 |
| IVECO | 60 E 15 3.9 | [F4AE0481C] | 01/09/00 |
| IVECO | 180 E 30 5.9 | [F4AE3681A] | 01/08/06 |
| IVECO | 60 E 15 3.9 | [F4AE0481C] | 01/09/00 |
| IVECO | 120 E 21 5.9 | [F4AE0681C] | 01/09/00 |
| IVECO | 120 E 21 5.9 | [F4AE0681C] | 01/09/00 |
| IVECO | 150 E 24 5.9 | [F4AE0681B] | 01/09/00 |
| IVECO | 120 E 21 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 150 E 24 5.9 | [F4AE0681B] | 01/09/00 |
| IVECO | 120 E 21 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 150 E 24 5.9 | [F4AE3681D] | 01/09/00 |
| IVECO | 120 E 21 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 120 E 21 5.9 | [F4AE3681B] | 01/09/00 |
| IVECO | 150 E 28 5.9 | [F4AE0681A] | 01/09/00 |
| IVECO | 150 E 28 5.9 | [F4AE3681E] | 01/09/00 |
| IVECO | 120 E 24 5.9 | [F4AE0681B] | 01/09/00 |
| IVECO | 150 E 28 5.9 | [F4AE3681E] | 01/09/00 |
| IVECO | 120 E 24 5.9 | [F4AE0681B] | 01/09/00 |
| IVECO | 80 E 15 3.9 | [F4AE0481C] | 01/09/00 |
| IVECO | 120 E 24 5.9 | [F4AE3681D] | 01/09/00 |
| IVECO | 320 6.7 | [F4AFE611D] | 01/01/16 |
| IVECO | 80 E 17 3.9 | [F4AE0481A] | 01/09/00 |
| IVECO | 80 E 17 3.9 | [F4AE0481A] | 01/09/00 |
| IVECO | 120 E 28 5.9 | [F4AE0681A] | 01/09/00 |
| IVECO | 320 E 28 5.9 | [F4AE0681A] | 09.2000-08.2003 |
| IVECO | 80 E 17 3.9 | [F4AE0481B] | 01/09/00 |
| IVECO | 120 E 28 5.9 | [F4AE3681E] | 01/09/00 |
| IVECO | 320 E 28 5.9 | [F4AE0681A] | 01/09/00 |
| IVECO | 65 E 13 3.9 | [F4AE0481D] | 01/09/00 |
| IVECO | 80 E 17 3.9 | [F4AE3481A] | 01/09/00 |
| IVECO | 65 E 13 3.9 | [F4AE0481D] | 01/09/00 |
| IVECO | 150 E 30 5.9 | [F4AE0681A] | 01/09/06 |
| IVECO | 120 EL 17 3.9 | [F4AE0481A] | 01/09/00 |
| IVECO | 80 E 18 3.9 | [F4AE3481B] | 01/09/06 |
| IVECO | 120 EL 17 3.9 | [F4AE3481A] | 01/09/00 |
| IVECO | 80 E 18 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 120 EL 21 5.9 | [F4AE0681B] | 01/09/00 |
| IVECO | 80 E 18 5.9 | [F4AE0681E] | 01/09/00 |
| IVECO | 120 EL 21 5.9 | [F4AE0681C] | 01/09/00 |
| IVECO | 150 E 30 5.9 | [F4AE3681A] | 01/09/06 |
| IVECO | 65 E 15 3.9 | [F4AE0481C] | 01/09/00 |
| IVECO | 80 E 18 5.9 | [F4AE0681E] | 01/09/00 |
| IVECO | 120 EL 21 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 65 E 15 3.9 | [F4AE0481C] | 01/09/00 |
| IVECO | 80 E 21 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 80 E 21 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 80 E 21 5.9 | [F4AE3681B] | 01/09/00 |
| IVECO | 80 E 21 5.9 | [F4AE3681B] | 01/09/00 |
| IVECO | 100 E 17 3.9 | [F4AE0481A] | 01/09/00 |
| IVECO | 100 E 17 3.9 | [F4AE0481A] | 01/09/00 |
| IVECO | 100 E 17 3.9 | [F4AE0481B] | 01/09/00 |
| IVECO | 160 E 21 5.9 | [F4AE0681C] | 01/09/00 |
| IVECO | 130 E 18 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 160 E 21 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 100 E 18 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 130 E 18 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 160 E 21 5.9 | [F4AE3681E] | 01/09/00 |
| IVECO | 80 EL 17 3.9 | [F4AE0481A] | 01/09/00 |
| IVECO | 100 E 18 5.9 | [F4AE0681E] | 01/09/00 |
| IVECO | 130 E 18 5.9 | [F4AE0681E] | 01/09/00 |
| IVECO | 100 E 18 5.9 | [F4AE0681E] | 01/09/00 |
| IVECO | 130 E 18 5.9 | [F4AE0681E] | 01/09/00 |
| IVECO | 100 E 18 5.9 | [F4AE0681E] | 01/09/00 |
| IVECO | 100 E 18 5.9 | [F4AE3681C] | 01/09/00 |
| IVECO | 130 E 21 5.9 | [F4AE0681C] | 01/09/00 |
| IVECO | 130 E 21 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 130 E 21 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 160 E 24 5.9 | [F4AE0681B] | 01/09/00 |
| IVECO | 160 E 24 5.9 | [F4AE0681B] | 01/09/00 |
| IVECO | 130 E 24 5.9 | [F4AE0681B] | 01/09/00 |
| IVECO | 130 E 24 5.9 | [F4AE0681B] | 01/09/00 |
| IVECO | 100 E 21 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 100 E 21 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 100 E 21 5.9 | [F4AE0681D] | 01/09/00 |
| IVECO | 160 E 28 5.9 | [F4AE0681A] | 01/09/00 |
| IVECO | 100 E 21 5.9 | [F4AE3681B] | 01/09/00 |
| IVECO | 130 E 25 5.9 | [F4AE3681D] | 01/09/06 |
| IVECO | 130 E 28 5.9 | [F4AE0681A] | 01/09/00 |
| IVECO | 130 E 28 5.9 | [F4AE0681A] | 01/09/00 |
| IVECO | 230 E 22 5.9 | [F4AE0681D] | 03.2006-12.2009 |
| IVECO | 230 E 24 5.9 | [F4AE0681B] | 03.2006-12.2011 |
| IVECO | 240 E 22 5.9 | [F4AE3681B] | 01/01/12 |
| IVECO | 240 E 28 5.9 | [F4AE3681E] | 01/01/12 |
| IVECO | 140 E 18 5.9 | [F4AE0681E] | 01/09/00 |
| IVECO | 140 E 18 5.9 | [F4AE0681E] | 01/05/05 |
| IVECO | 140 E 18 5.9 | [F4AE0681E] | 01/05/05 |
| IVECO | 75 E 13 3.9 | [F4AE0481D] | 01/09/00 |
| IVECO | 170 E 22 5.9 | [F4AE0681D] | 01.2005-12.2011 |
| IVECO | 75 E 13 3.9 | [F4AE0481D] | 01/09/00 |
| IVECO | 170 E 22 5.9 | [F4AE3681B] | 01/01/12 |
| IVECO | 140 E 21 5.9 | [F4AE0681C] | 01/05/05 |
| IVECO | 140 E 21 5.9 | [F4AE0681D] | 01/05/05 |
| IVECO | 140 E 21 5.9 | [F4AE0681D] | 01/05/05 |
| IVECO | 170 E 28 5.9 | [F4AE3681E] | 01/01/12 |
| IVECO | 170 E 28 5.9 | [F4AE3681E] | 01/01/12 |
| IVECO | 170 E 28 5.9 | [F4AE3681E] | 01/07/15 |
| IVECO | 180 E 21 5.9 | [F4AE0681C] | 01/09/00 |
| IVECO | 180 E 21 5.9 | [F4AE0681D] | 01/09/00 |
| TEMSA | Avenue LF 6.7 | 01/09/10 |
