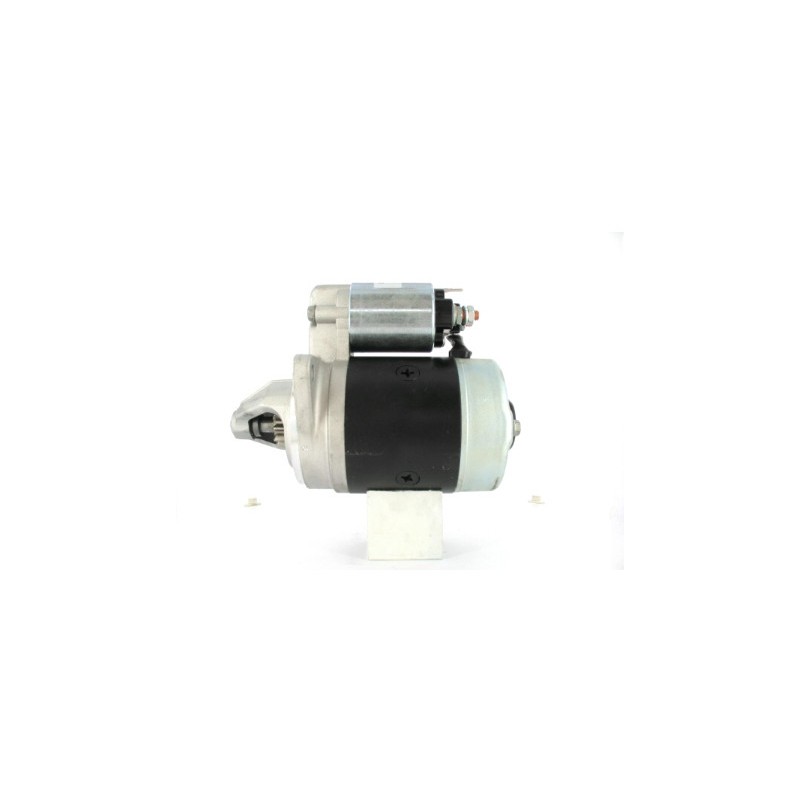

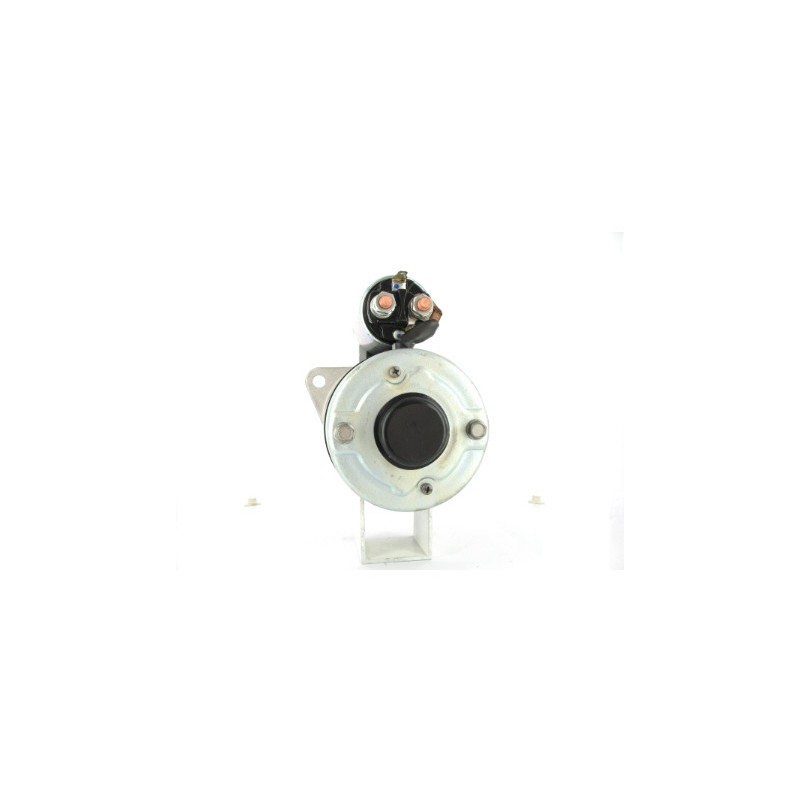

Starter replacing HITACHI S114-203 / S114-230 / S114-230a
Starter replacing HITACHI S114-203 / S114-230 / S114-230a
= YANMAR 124070-77010
11 teeth model for YANMAR
2QM15 / QM15 / 2T73 Ya Yc / YM1300
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 1.3 | |

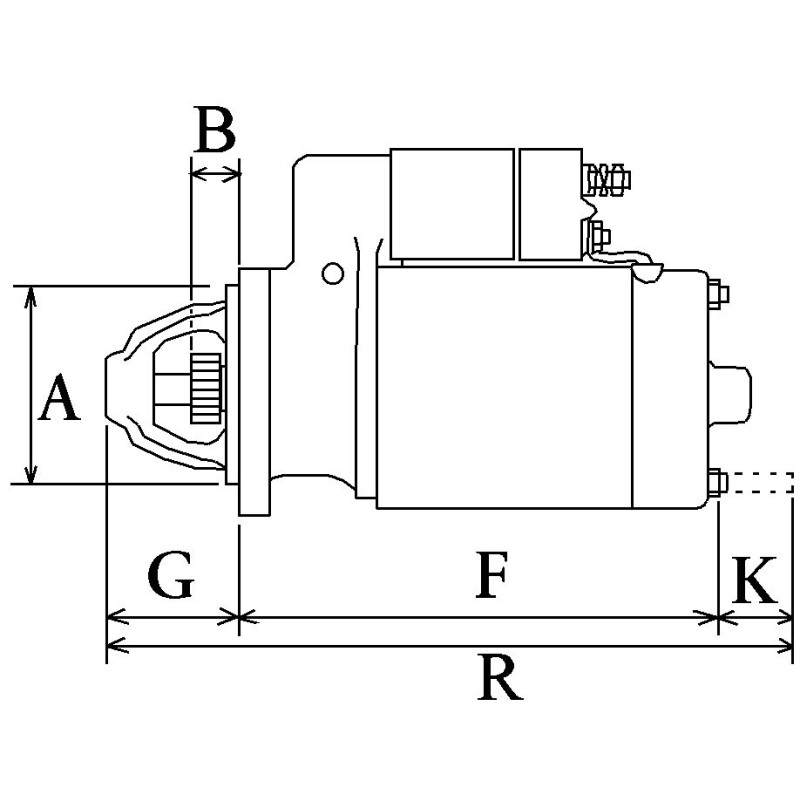

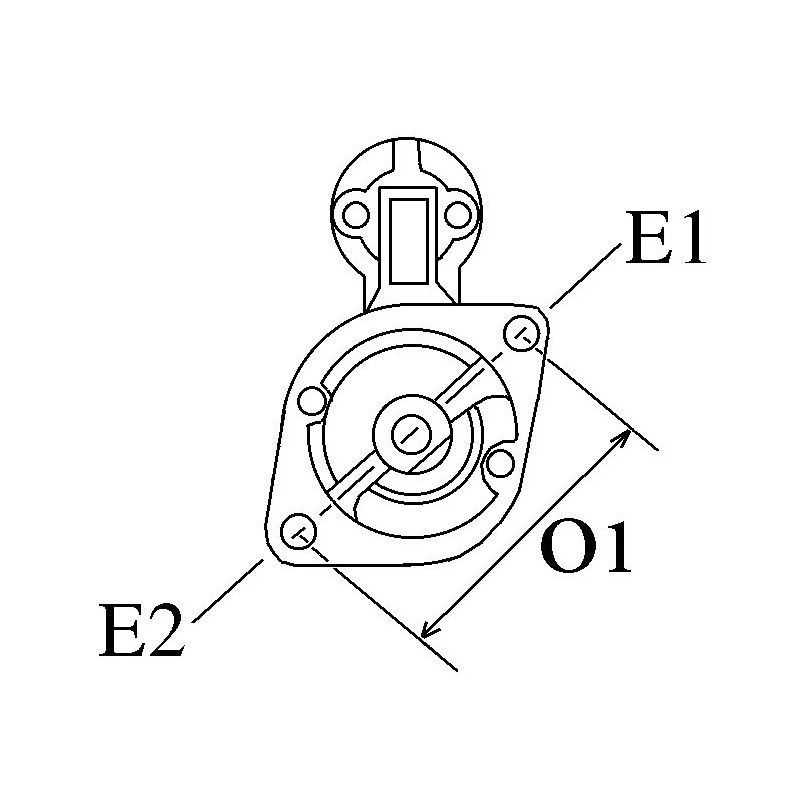

Physical Information | ||
|---|---|---|
| A | Mount flange | 89.00 |
| E | Mounting holes | 10.50 |
| E | Mounting holes 2 | 10.50 |
| B | Drive distance | 23.00 |
| F | Distance / Back | 148.00 |
| G | Distance / Front | 58.00 |
| H | Nbr of teeth | 11 |
| I | B+ | M8 |
| N | Gear type | Dd/gr |
| O | Distance mm | 127.00 |
| P | Rotation | Cr |
| R | Total length mm | 208.00 |
Replacing | |
|---|---|
| 124070-77010 | YANMAR |
| S114-203 | HITACHI |
| S114-230 | HITACHI |
| S114-230a | HITACHI |
generic brand
fits:
| Brand | Version | Typ | Engine | Year |
| Yanmar | Marine | 2QM15 | 2Zyl Yanmar Diesel | 1977-1980 |
| Yanmar | Marine | 2T73 | 2Zyl Yanmar Diesel | 1977-1980 |
| Yanmar | Marine | YA | Yanmar Diesel | 1974-1989 |
| Yanmar | Marine | YC | Yanmar Diesel | 1974-1989 |
| Yanmar | Traktor | YM1300 | 2T73 Yanmar | 1977-1997 |
| Yanmar | Traktor | YM1300 | 2TR13 Yanmar | 1977-1997 |
| Yanmar | Traktor | YM1500 | 3T72 Yanmar | 1977-1997 |
| Yanmar | Traktor | YM15D | Yanmar Diesel | 1977-1997 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
