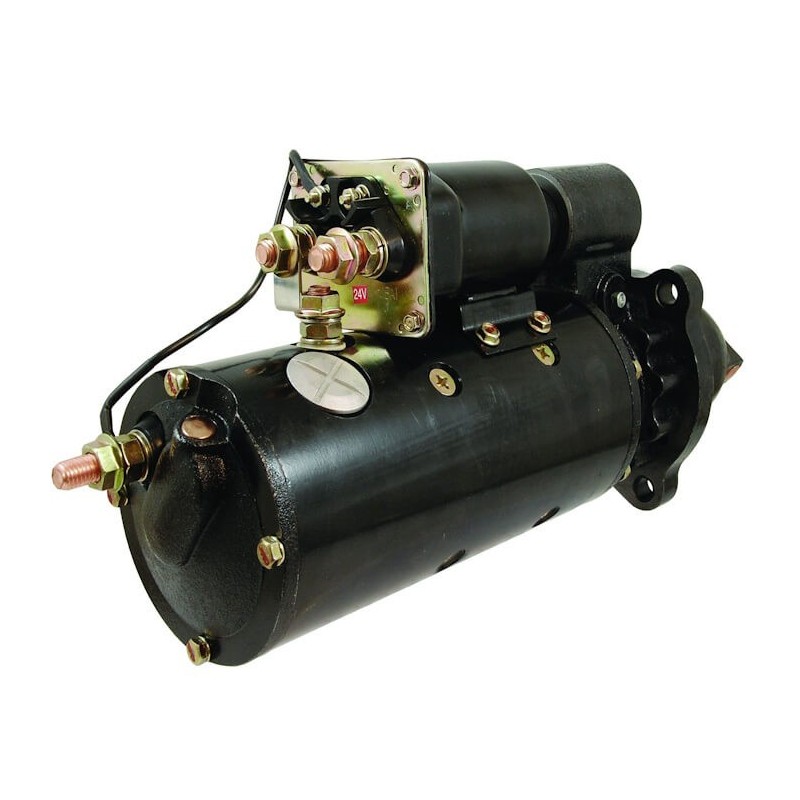

W3745N

Starter for CASE, CATERPILLAR, MACK TRUCK, FORD

=CUMMINS 706620 / 3603862RX / 3021036 / 135162
=FORD C4TF-11000-A / C4TZ-11002-A / C4TF-A
=FIAT Allis 73061273 / 73069398 / 73116947 / 73117237

ATTENTION MODEL WITH OPENING OF THE DRIVE IN THE OTHER DIRECTION CAN BE FOUND UNDER THE REFERENCE W111000
NO CORE EXCHANGE NEEDED

Read more
€319.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Information:

Voltage 24 - KW 7.5 - Double Isolation
Solenoid orientation : 38°

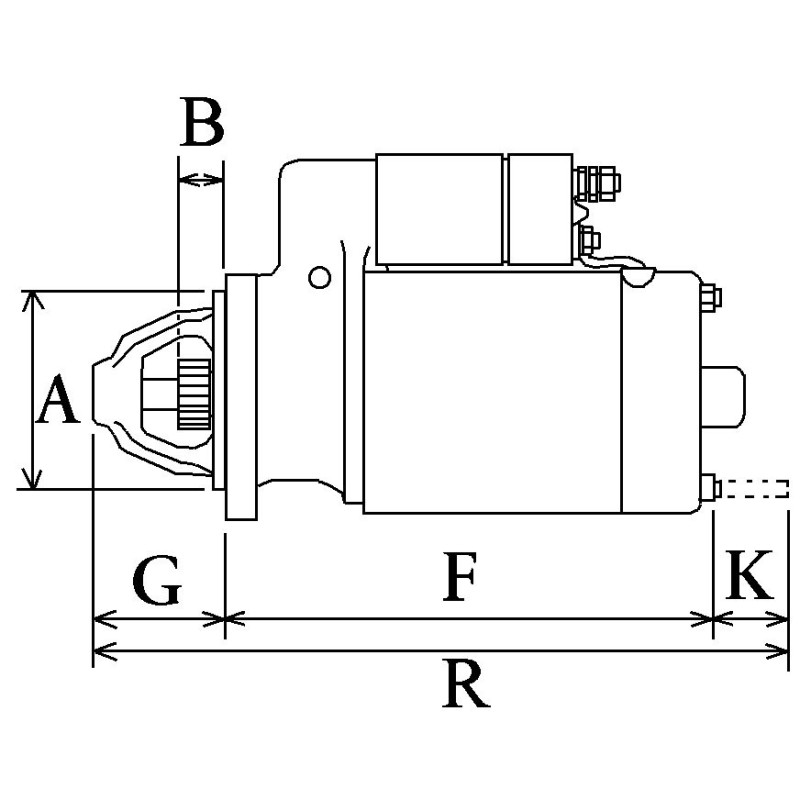

Physical Information
A Mount flange 92.00
E Mounting holes 16.50
E Mounting holes 2 16.50
E Mounting holes 3 16.50
B Drive distance 47.00
F Distance / Back 374.00
G Distance / Front 101.50
H Nbr of teeth 11
I B+ 1/2" UNC
S B- 1/2" UNC
N Gear type Dd
O Distance mm 127.00
O Distance 2 127.00
O Distance 3 127.00
P Rotation Cr
R Total length mm 522.00

generic Brand

replacing

Bosch 0 001 420 002, 0 001 420 006, 0 001 420 008, Case 307822R92, 313979R92, 317941R92, 439677R91, 627589C91, 690400C91, 755496C91, 989969R91, Caterpillar 0R5209, 2T0797, 3T2646, 3T2649, 3T2650, 3T3152, 3T3153, 4N8118, 4N957, 5L2537, 5L2637, 5L537, 5L637, 6N3122, 7L8797, 7T0794, 7T0800, 7T0801, 7T0806, 8C3644, 8C3649, 8H1813, 9G5584, 9G5585, 9G8854, 9L6691, 9N0435, 9N0453, Cummins 135162, 3021036, 3603862RX, 706620, Delco 10451047, 10461047, 10461179, 1108873, 1108881, 1109702, 1109704, 1109705, 1109708, 1109723, 1109745, 1109762, 1109765, 1109898, 1113710, 1113715, 1113726, 1113738, 1113782, 1113792, 1113809, 1113813, 1113818, 1113820, 1113824, 1113825, 1113831, 1113842, 1113844, 1113845, 1113846, 1113847, 1113849, 1113850, 1113851, 1113855, 1113858, 1113860, 1113862, 1113866, 1113868, 1113872, 1113876, 1113883, 1113887, 1113892, 1113893, 1113894, 1113895, 1113898, 1113900, 1113902, 1113903, 1113905, 1113906, 1113910, 1113914, 1113915, 1113916, 1113920, 1113924, 1113926, 1113931, 1113935, 1113944, 1113948, 1113952, 1113955, 1113956, 1113957, 1113958, 1113965, 1113966, 1113968, 1113970, 1113971, 1113972, 1113973, 1113975, 1113976, 1113977, 1113978, 1113980, 1113981, 1113983, 1113991, 1113994, 1113995, 1113997, 1113999, 1114710, 1114715, 1114727, 1114728, 1114730, 1114737, 1114738, 1114755, 1114756, 1114760, 1114762, 1114776, 1114781, 1114784, 1114790, 1114842, 1114844, 1114846, 1114847, 1114848, 1114849, 1114850, 1114851, 1114852, 1114853, 1114854, 1114855, 1114873, 1114874, 1114875, 1114878, 1114879, 1114880, 1114903, 1114907, 1114909, 1114915, 1114916, 1114923, 1114935, 1114947, 1114950, 1114951, 1114958, 1114963, 1114964, 1114970, 1114971, 1114973, 1114974, 1114979, 1114981, 1114987, 1990202, 1990222, 1990279, 1990307, 1990328, 1990482, 1993700, Detroit Diesel R0461179, Fiat Allis 70620382, 70622235, 73061273, 73069398, 73116947, 73117237, 73130194, 73130195, 73130625, Ford C4TF-11000-A, C4TZ-11002-A, Ford Engineering C4TF-A, IHC, Navistar 307822R92, 313979R92, 317941R92, 439677R91, 627589C91, 690400C91, 755496C91, 989969R91, Letrika (Iskra) Tech. AZG4689, Mack Truck 8MJ176, Prestolite 46-2052, MES6103LUT, MS1-401A, Renault 5000811448, White V1114243
