Starter replacing DENSO 228000-7381 / 228000-7380 / 228000-5631

Information:

Rotation Cr

KW 7.5

Voltage 24

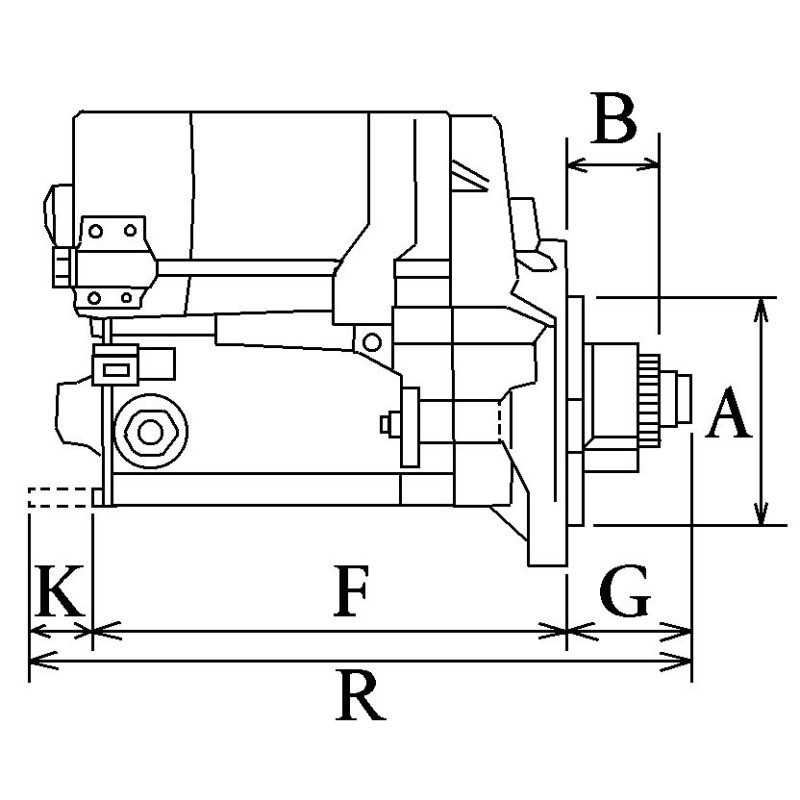

A = Mount flange 92.00

B = Drive distance 47.00

F = Distance / Back 162.00

G = Distance / Front 73.00

H = Nbr of teeth 10

B+ M10

Gear type Gr

O = Distance mm 126.50

O = Distance 2 125.70

O = Distance 3 126.00

Nbr of mounting holes 3 (0)

Clutch Tipo Wet

Drive Tipo Steel

R = Total length mm 314.00

= DENSO 228000-7381 / 228000-7380 / 228000-5631 / 228000-5630 / 428000-3380

228000-5612 / 228000-5611 / 228000-5610 / 128000-9820 / 128000-9821

= CATERPILLAR 121502400

= CUMMINS 3283214 / 3283814 / 3675247rx / 3920329 / 604662rx

                                                TWO YEARS WARRANTY

                            NO CORE EXCHANGE NEEDED
