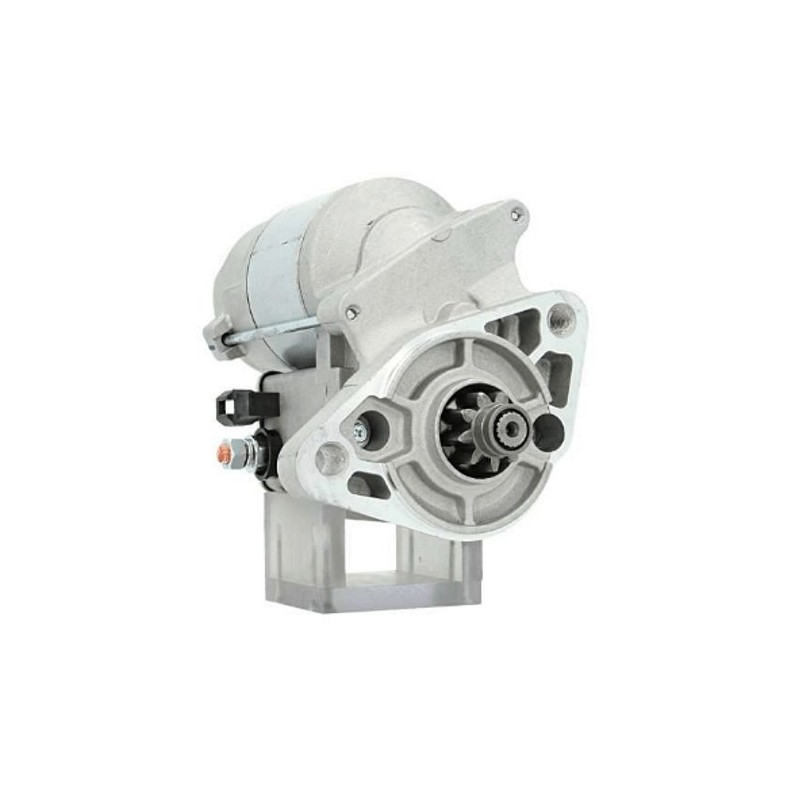

Starter replacing DENSO 428000-3170 / TOYOTA 28100-B8010

Information:

Rotation Cr

KW 1.2

Voltage 12

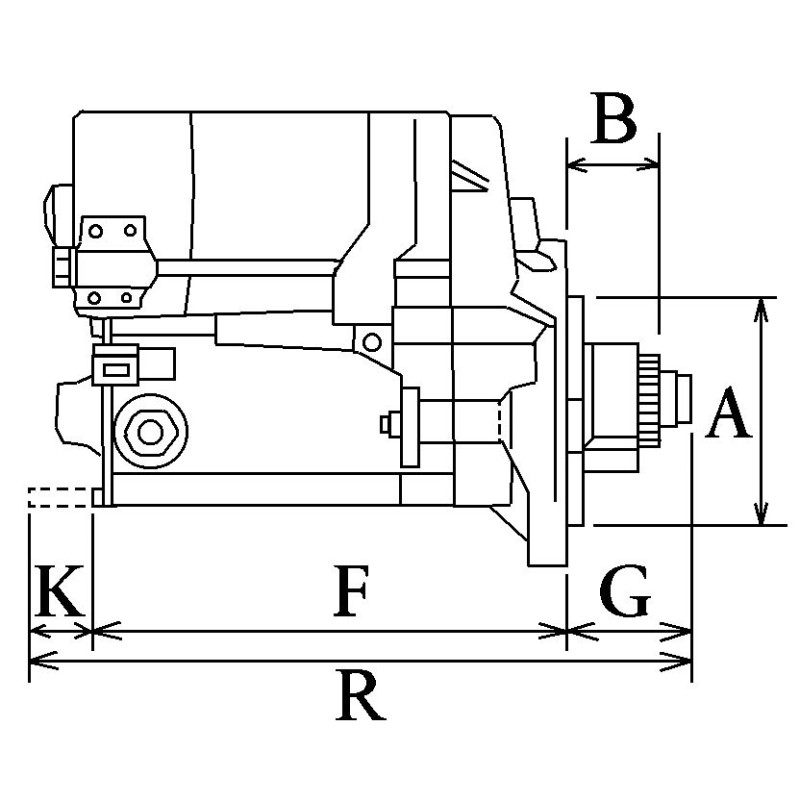

A = Mount flange 74.00

B =  Drive distance 20.00

F =  Distance / Back 125.00

G =  Distance / Front 33.00

H =  Nbr of teeth 9

B+ M8

Gear type Gr

O = Distance mm 110.00

Nbr of mounting holes 2 (2)

generic brand

= DENSO 428000-3170

= KAWASAKI 21163-0030

= TOYOTA 28100-B8010

= Briggs & stratton 825700

fits:

Starter KAWASAKI KAF950 Mule 2510 Diesel Mule 3010 Mule 4010

KAF950 Mule 2510 Diesel KAWASAKI 953cc
KAF950 Mule 3010 Diesel 4x4 2004-2008 KAWASAKI 953cc
KAF950 Mule 3010 Diesel Trans 4x4 2007-2008 KAWASAKI 953cc
KAF950 Mule 4010 Diesel 4x4 2009-2013 KAWASAKI 953cc
KAF950 Mule 4010 Diesel Trans 4x4 2009-2013 KAWASAKI 953cc
KAF950 Mule 4010 Diesel Trans 4x4 Realtree APG KAWASAKI 953cc

                                                TWO YEARS WARRANTY

                   NO CORE EXCHANGE NEEDED
