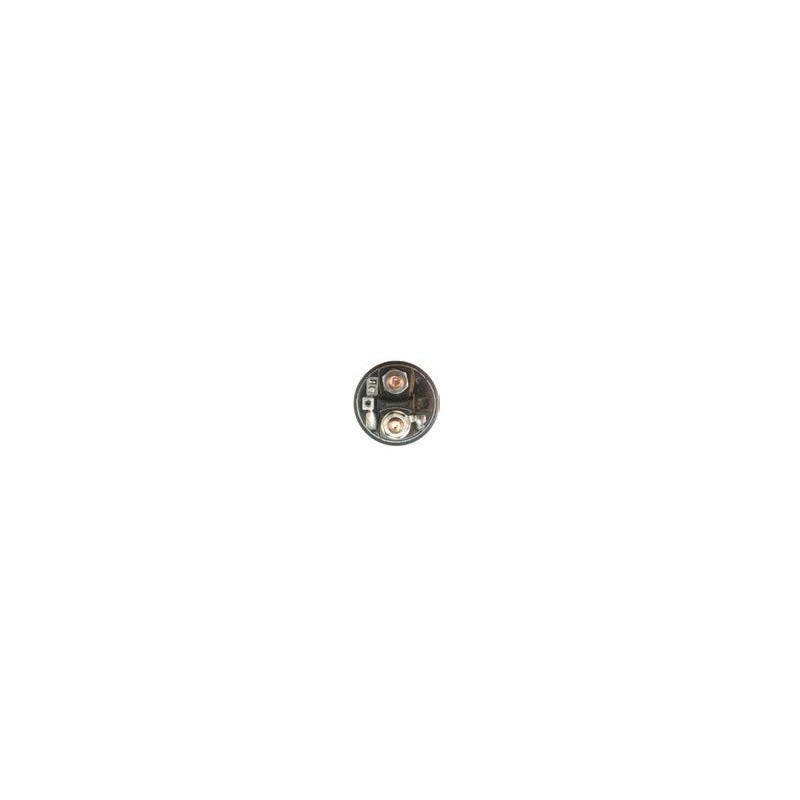

Solenoid for starter BOSCH 0001363111 / 9000143601 / 9000143602

Display all pictures

Solenoid for starter BOSCH 0001363111 / 9000143601 / 9000143602

Reference: w132255

Condition: New product

1 Item Items

Solenoid for starter

0001363111 / 000143601 / 9000143602

remplace 2339402177 / 2339402171

More info

More info

Information:

Physical information
A	OD mm	61.40
B	Total length mm	147.75
	No./mount. holes	3
E	ID/cover mm	30.10

Plunger information
Q	Length mm	82.60
	Fork Lever	w/

Bracket information
D	OD/cover mm	53.10
G	B+	M10
	Height/B+	21.25
M	Coil bolt	M10
N	Coil bolt l.	17.00
	No./terminals	3

null
4.70	Terminal 50/mm

Electrical information
	Voltage	24

generic brand

= BOSCH: 2339402177 / 2339402171

for starter BOSCH:

0001363111

9000143601

9000143602
