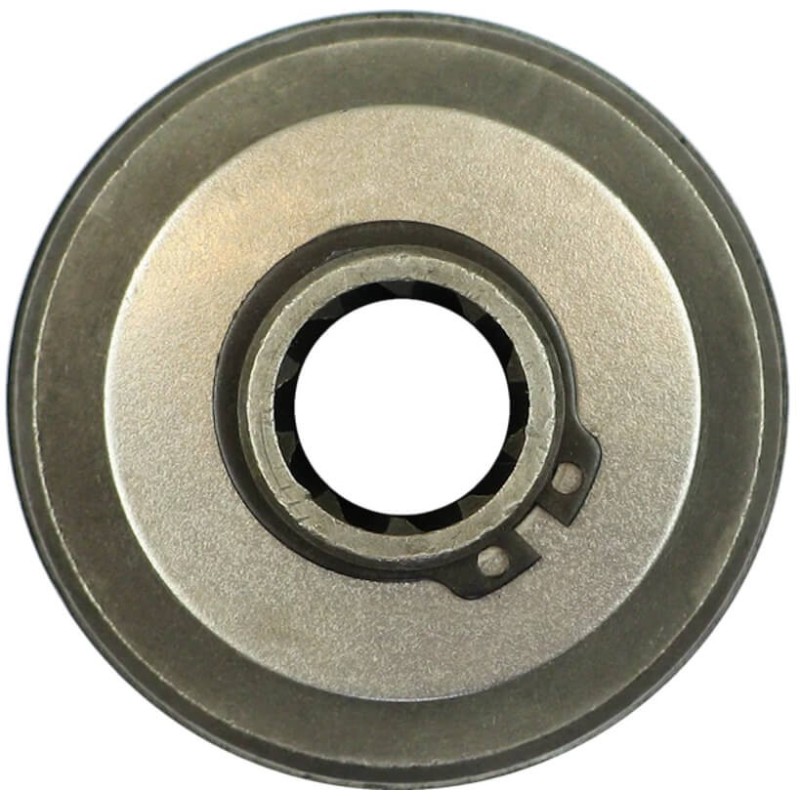

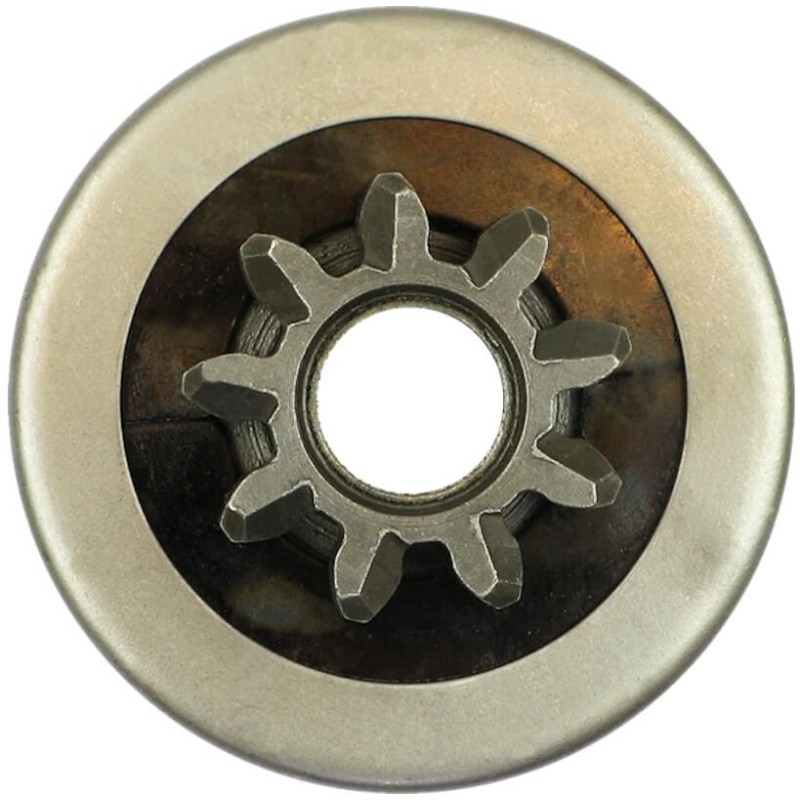

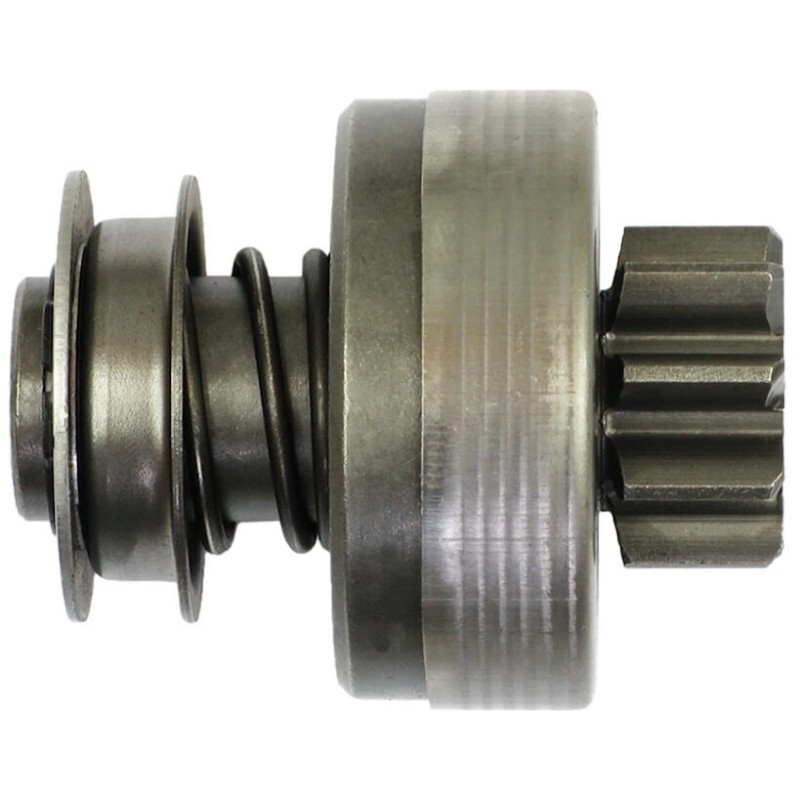

Drive for starter ISKRA AZJ3346 / AZJ3355 / AZJ3433 / AZJ3478
for starter ISKRA / LETRIKA
| 11.130.503 |
| 11.130.531 |
| 11.130.548 |
| 11.130.551 |
| 11.130.552 |
| 11.130.567 |
| 11.130.585 |
| 11.130.612 |
| 11.130.618 |
| 11.130.645 |
| 11.130.669 |
| 11.130.670 |
| 11.130.706 |
| 11.130.971 |
| 11.131.015 |
| 11.131.479 |
| 11.132.334 |
| 11.132.335 |
| AZJ3140 |
| AZJ3155 |
| AZJ3166 |
Références
| SD9089 | AS-PL |
| 136969 | CARGO |
| F032136969 | CARGO |
| DRV7903 | ELECTROLOG |
| 10493D | GHIBAUDI |
| 1780 | GHIBAUDI |
| 16.900.254 | ISKRA / LETRIKA |
| 16.903.087 | ISKRA / LETRIKA |
| 16.900.879 | ISKRA / LETRIKA |
| MSX280 | MAHLE |
| 72737429 | MAHLE |
| MSX689 | MAHLE |
| 1015548 | POWERMAX |
| 060.000.805.096 | PSH |
| 060.000.805.830 | PSH |
| 01-008 | STEMOT |
| 59-52-32 | VISNOVA |
| WG2045581 | WILMINK GROUP |
| 61-23-14020 | WILSON |
| WOOSDV32219 | WOODAUTO |
| SDV32219 | WOODAUTO |
| 2021 | ZEN |
| ZN2021 | ZEN |
| LET16.900.254 | WOODAUTO |
| MX202 | MAHLE |
Features

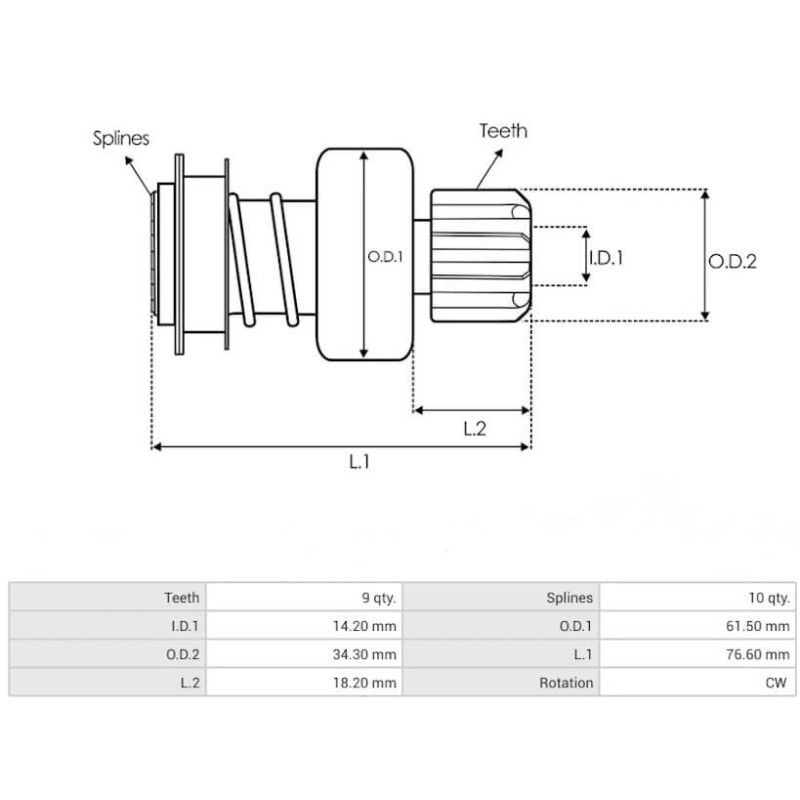

Specifications
| Teeth [ qty. ] | 9 |
| Splines [ qty. ] | 10 |
| I.D.1 [ mm ] | 14.20 |
| O.D.1 [ mm ] | 61.50 |
| O.D.2 [ mm ] | 34.30 |
| L.1 [ mm ] | 76.60 |
| L.2 [ mm ] | 18.20 |
| Rotation | CW |
for starter
| 11.130.503 | ISKRA / LETRIKA | MS107 | MAHLE |
| 11.130.531 | ISKRA / LETRIKA | MS180 | MAHLE |
| 11.130.548 | ISKRA / LETRIKA | MS220 | MAHLE |
| 11.130.551 | ISKRA / LETRIKA | MS274 | MAHLE |
| 11.130.552 | ISKRA / LETRIKA | MS277 | MAHLE |
| 11.130.567 | ISKRA / LETRIKA | MS279 | MAHLE |
| 11.130.585 | ISKRA / LETRIKA | MS308 | MAHLE |
| 11.130.612 | ISKRA / LETRIKA | MS313 | MAHLE |
| 11.130.618 | ISKRA / LETRIKA | MS330 | MAHLE |
| 11.130.645 | ISKRA / LETRIKA | MS339 | MAHLE |
| 11.130.669 | ISKRA / LETRIKA | MS351 | MAHLE |
| 11.130.670 | ISKRA / LETRIKA | MS353 | MAHLE |
| 11.130.706 | ISKRA / LETRIKA | MS364 | MAHLE |
| 11.130.971 | ISKRA / LETRIKA | MS391 | MAHLE |
| 11.131.015 | ISKRA / LETRIKA | MS50 | MAHLE |
| 11.131.479 | ISKRA / LETRIKA | ||
| 11.132.334 | ISKRA / LETRIKA | ||
| 11.132.335 | ISKRA / LETRIKA | ||
| AZJ3140 | ISKRA / LETRIKA | ||
| AZJ3155 | ISKRA / LETRIKA | ||
| AZJ3166 | ISKRA / LETRIKA | ||
| AZJ3169 | ISKRA / LETRIKA | ||
| AZJ3170 | ISKRA / LETRIKA | ||
| AZJ3179 | ISKRA / LETRIKA | ||
| AZJ3184 | ISKRA / LETRIKA | ||
| AZJ3192 | ISKRA / LETRIKA | ||
| AZJ3195 | ISKRA / LETRIKA | ||
| AZJ3211. | ISKRA / LETRIKA | ||
| AZJ3218 | ISKRA / LETRIKA | ||
| AZJ3219 | ISKRA / LETRIKA | ||
| AZJ3244 | ISKRA / LETRIKA | ||
| AZJ3346 | ISKRA / LETRIKA | ||
| AZJ3355 | ISKRA / LETRIKA | ||
| AZJ3433 | ISKRA / LETRIKA | ||
| AZJ3478 | ISKRA / LETRIKA | ||
| AZJ3479 | ISKRA / LETRIKA |
Mounting on
| 11130008 | ISKRA / LETRIKA |
| 11130026 | ISKRA / LETRIKA |
| 11130117 | ISKRA / LETRIKA |
| 11130207 | ISKRA / LETRIKA |
| 11130247 | ISKRA / LETRIKA |
| 11130319 | ISKRA / LETRIKA |
| 11130432 | ISKRA / LETRIKA |
| 11130484 | ISKRA / LETRIKA |
| 11130503 | ISKRA / LETRIKA |
| 11130510 | ISKRA / LETRIKA |
| 11130531 | ISKRA / LETRIKA |
| 11130548 | ISKRA / LETRIKA |
| 11130551 | ISKRA / LETRIKA |
| 11130552 | ISKRA / LETRIKA |
| 11130567 | ISKRA / LETRIKA |
| 11130585 | ISKRA / LETRIKA |
| 11130612 | ISKRA / LETRIKA |
| 11130618 | ISKRA / LETRIKA |
| 11130645 | ISKRA / LETRIKA |
| 11130669 | ISKRA / LETRIKA |
| 11130670 | ISKRA / LETRIKA |
| 11130706 | ISKRA / LETRIKA |
| 11130971 | ISKRA / LETRIKA |
| 11131015 | ISKRA / LETRIKA |
| 11131479 | ISKRA / LETRIKA |
| 11132255 | ISKRA / LETRIKA |
| 11132334 | ISKRA / LETRIKA |
| 11132335 | ISKRA / LETRIKA |
| AZJ0101 | ISKRA / LETRIKA |
| AZJ0402 | ISKRA / LETRIKA |
| AZJ3123 | ISKRA / LETRIKA |
| AZJ3128 | ISKRA / LETRIKA |
| AZJ3140 | ISKRA / LETRIKA |
| AZJ3155 | ISKRA / LETRIKA |
| AZJ3166 | ISKRA / LETRIKA |
| AZJ3169 | ISKRA / LETRIKA |
| AZJ3170 | ISKRA / LETRIKA |
| AZJ3179 | ISKRA / LETRIKA |
| AZJ3184 | ISKRA / LETRIKA |
| AZJ3195 | ISKRA / LETRIKA |
| AZJ3211 | ISKRA / LETRIKA |
| AZJ3218 | ISKRA / LETRIKA |
| AZJ3219 | ISKRA / LETRIKA |
| AZJ3244 | ISKRA / LETRIKA |
| AZJ3346 | ISKRA / LETRIKA |
| AZJ3355 | ISKRA / LETRIKA |
| AZJ3433 | ISKRA / LETRIKA |
| AZJ3475 | ISKRA / LETRIKA |
| AZJ3478 | ISKRA / LETRIKA |
| AZJ3479 | ISKRA / LETRIKA |
| AZJ3508 | ISKRA / LETRIKA |
| AZJ3540 | ISKRA / LETRIKA |
| AZJ3551 | ISKRA / LETRIKA |
| AZJ3581 | ISKRA / LETRIKA |
| S9477(LETRIKA) | AS-PL |
