Drive for starter BOSCH 0001109025 / 0001109030 / 0001109033
Drive for starter BOSCH 0001109025 / 0001109030 / 0001109033

Drive for starter BOSCH 0001109025 / 0001109030 / 0001109033

w230828

Drive  for starter BOSCH

0001109025, 0001109030, 0001109033, 0001109035, 0001109045, 0001109200, 0001109201, 0001109253, 0001109265, 0001109266, 0001109267, 0001109268, 0001109269, 0001109270, 0001109330, 0001109331

Read more
€16.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Références

1.01.1033.0 ZEN
1006209645 BOSCH
1006209802 BOSCH
1006209950 BOSCH
1006209987 BOSCH
1006210148 BOSCH
1016222 POWERMAX
1033 ZEN
11-645 STEMOT
2122 GHIBAUDI
225488 ERA
230828 CARGO
333571 CARGO
4.5031.1 IKA
46473784 FIAT
52-42-36 VISNOVA
54-91135 WAI / TRANSPO
54-91135-1 WAI / TRANSPO
54-91135-ZEN WAI / TRANSPO
61-15-6587 WILSON
81016222 POWERMAX
940113020354 MAGNETI MARELLI
940113170354 MAGNETI MARELLI
9947843 FIAT
CQ2010049 CQ
SDB1828 KRAUF
SDB9828 KRAUF
SDV38242 WOODAUTO
ZN1033 ZEN
DRV1384 ELECTROLOG
F032333571 CARGO
F032230828 CARGO

Features

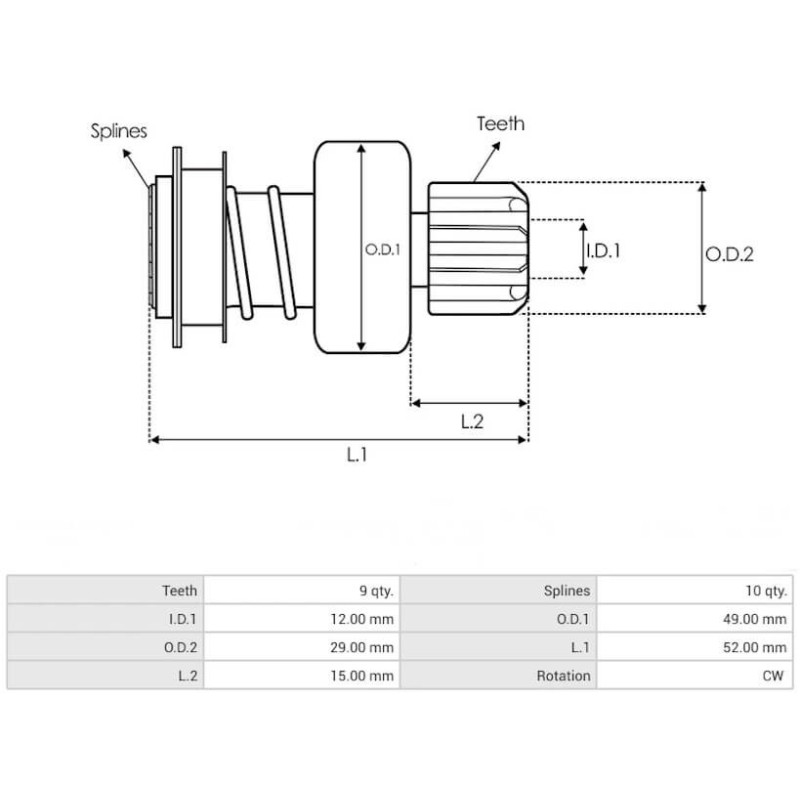

Physical Information
A DE mm 29.20
B Total length mm 51.00
Nbr of teeth 9
Splines A 10
K DE/house mm 53.50
Rotation CW
C DI mm 12.00

= BOSCH 1006209950 / 1006209802 / 1006209645

generic brand

for starter  :

ALFA ROMEO 46430784, 46473784, 55195029, 60814911

BMW 12 41 7 794 953, 12-41-2-242-703, 12-41-2-246-570, 12-41-2-371-646, 12-41-2-446-570, 12-41-4-371-646, 12-41-7-785-691, 12-41-7-799-414

BOSCH 0001109025, 0001109030, 0001109033, 0001109035, 0001109045, 0001109200, 0001109201, 0001109253, 0001109265, 0001109266, 0001109267, 0001109268, 0001109269, 0001109270, 0001109330, 0001109331

FIAT 134758080, 46430784, 46473784, 46800159, 55195029, 55195029, 60814911, 71746669; JCB 714/35600, 714/35600R

JOHN DEERE RE508922, SE501844; LANCIA 46430784, 46473784, 55195029, 60814911; MAGNETI MARELLI 063280071010, 944280173000, 944280173000, 944280177900, 944280198600, 944280801740; OPEL 12-02-166, 1202141, 1202168, 24454172, 62-020-48, 90465731, 91-154-217, 93-175-883, 93171945, 95-12-765; PERKINS Engine 1850866, 18508660, 185086600, U5MK8260; Pininfarina 93955195029; PRESTOLITE 20513016; PSA PEUGEOT CITROEN 5820AQ; SUZUKI 31100-79J00; VM Motori 35 53 2055F; Yale 19960488, 19960489, 50027532

Mounting on

0001108228 BOSCH
0001108234 BOSCH
0001109025 BOSCH
0001109030 BOSCH
0001109033 BOSCH
0001109035 BOSCH
0001109045 BOSCH
0001109200 BOSCH
0001109201 BOSCH
0001109253 BOSCH
0001109265 BOSCH
0001109266 BOSCH
0001109267 BOSCH
0001109268 BOSCH
0001109269 BOSCH
0001109270 BOSCH
0001109330 BOSCH
0001109336 BOSCH
60814911 ALFA ROMEO
S0093 AS-PL
S0188 AS-PL
S0189 AS-PL
S0195 AS-PL
S0230 AS-PL
S0259 AS-PL
S0604 AS-PL
