Drive for starter BOSCH 0001124007 / 0001124008 / 0001124011

Information:

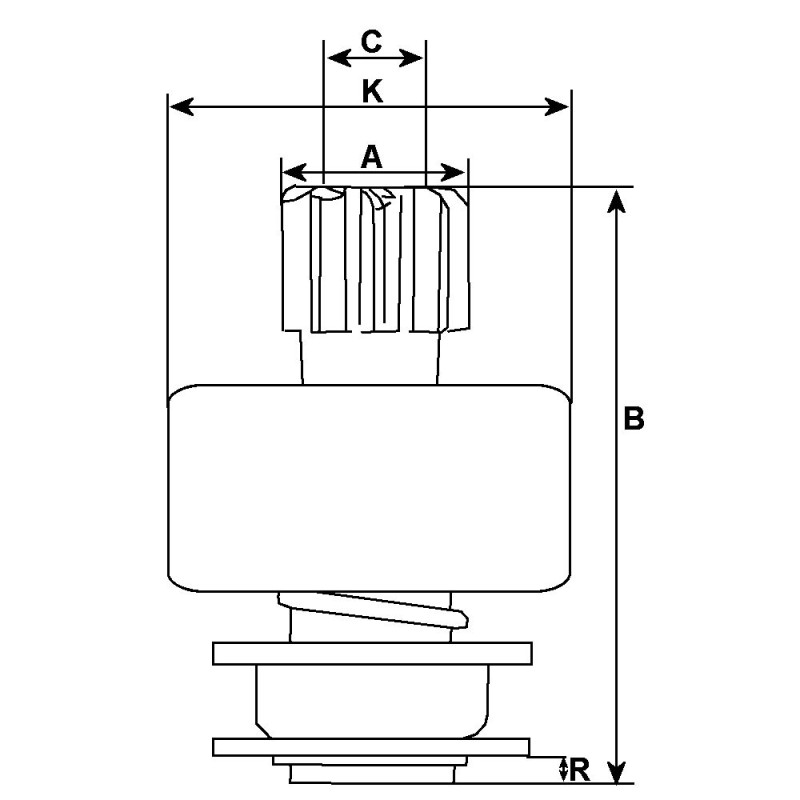

A = DE mm 25.40

B = Total length mm 93.50

Nbr of teeth 9

Splines A 16

K = DE/house mm 53.60

Rotation COUNTER CLOCKWISE

DI mm 11.20

for starter  :

0001124007, 0001124008, 0001124011,0001124012, 0001124018, 0001124019,
0001124022, 0001124023, 0001124024, 0001124025

AUDI / VOLKSWAGEN 02A 911 023 H, 02A-911-023S, 02A-911-023SX, 02A-911-024E, 02A-911-024EX, 085-911-023A, 085-911-023F, 085-911-023K, 085-911-023KX, 085-911-023L

BOSCH 0001124007, 0001124008, 0001124011, 0001124012, 0001124018, 0001124019, 0001124022, 0001124023, 0001124024, 0001124025, 0001125003, 0001125004, 0001125009, 0001125010, 0001125039, 0001125040

MAGNETI MARELLI 063521240220, 944280167000, 944280174500, 944280174500, 944280189300, 944280800050

VALEO 458492
