Brush set for alternator DENSO100211-0071 / 100211-0081 / 100211- 0090
for alternator DENSO100211-0071, 100211-0081, 100211-0090, 100211-0100, 100211-0101, 100211-0191,
100211-0280, 100211-0290, 100211-0291
HITACHI LR1100-504c
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |

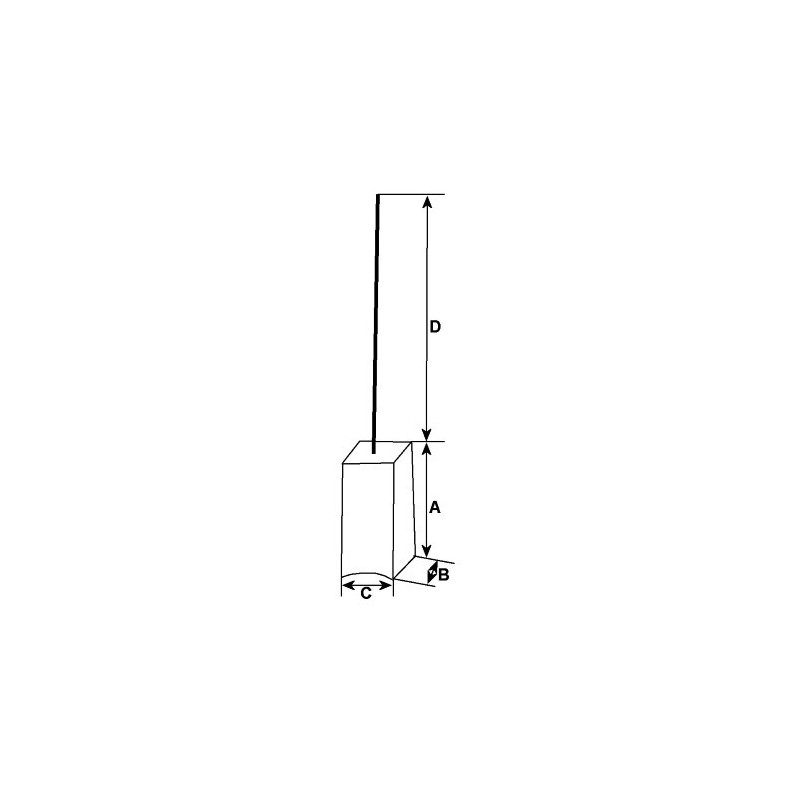

Physical information | ||
|---|---|---|
| A | Lenght mm | 22.50 |
| B | Thickness nn | 5.00 |
| C | Height mm | 8.00 |
| D | Lead length mm | 62.00 |
for alternator :
| A2003 | AS-PL | lr1100-502 | HITACHI |
| 021000-6570 | DENSO | lr1100-502B | HITACHI |
| 021000-6580 | DENSO | lr1100-502C | HITACHI |
| 021000-7810 | DENSO | lr1100-502D | HITACHI |
| 021000-8460 | DENSO | lr1100-502E | HITACHI |
| 021000-8540 | DENSO | lr1100-502F | HITACHI |
| 021000-8550 | DENSO | lr1100-502G | HITACHI |
| 021000-8560 | DENSO | lr1100-502H | HITACHI |
| 021000-8920 | DENSO | lr1100-502J | HITACHI |
| 021000-8960 | DENSO | lr1100-502K | HITACHI |
| 100211-0071 | DENSO | lr1100-502L | HITACHI |
| 100211-0081 | DENSO | lr1100-502M | HITACHI |
| 100211-0090 | DENSO | lr1100-502N | HITACHI |
| 100211-0100 | DENSO | lr1100-503 | HITACHI |
| 100211-0101 | DENSO | lr1100-503A | HITACHI |
| 100211-0110 | DENSO | lr1100-503B | HITACHI |
| 100211-0130 | DENSO | lr1100-503C | HITACHI |
| 100211-0190 | DENSO | lr1100-503E | HITACHI |
| 100211-0250 | DENSO | lr1100-503F | HITACHI |
| 100211-0280 | DENSO | lr1100-504C | HITACHI |
| 100211-0290 | DENSO | lr1100-504E | HITACHI |
| 100211-0291 | DENSO | lr1100-505 | HITACHI |
| 100211-0292 | DENSO | lr1100-505B | HITACHI |
| 100211-0310 | DENSO | lr1100-505E | HITACHI |
| 100211-0330 | DENSO | lr1110-502 | HITACHI |
| 100211-0340 | DENSO | lr1110-502B | HITACHI |
| 100211-0790 | DENSO | lr1110-502C | HITACHI |
| 100211-5800 | DENSO | lr1110-502F | HITACHI |
| 8971891122 | ISUZU | lr1110-503 | HITACHI |
| 8971891123 | ISUZU | lr1110-503B | HITACHI |
| 8971891124 | ISUZU | lr1110-503C | HITACHI |
| 8971891125 | ISUZU | lr1110-503E | HITACHI |
| 8971891126 | ISUZU | lr1110-503F | HITACHI |
| 8971891133 | ISUZU | lr170-509C | HITACHI |
| 8971891134 | ISUZU | lr170-509E | HITACHI |
| 8971891135 | ISUZU | lr170-509F | HITACHI |
| 8971891136 | ISUZU | lr170-509G | HITACHI |
| 8971891137 | ISUZU | lr170-509H | HITACHI |
| 8971891138 | ISUZU | 2702022000 | TOYOTA |
| 8971891139 | ISUZU | 2702026140 | TOYOTA |
| 8972873923 | ISUZU | 2702028010 | TOYOTA |
| 8972873924 | ISUZU | 2702028020 | TOYOTA |
| 8973261800 | ISUZU | 2702034070 | TOYOTA |
| 8973261801 | ISUZU | 2702038100 | TOYOTA |
| 8973551980 | ISUZU | 2702070010 | TOYOTA |
| 8973551981 | ISUZU | 2702070020 | TOYOTA |
| 8973551982 | ISUZU | 2706026021 | TOYOTA |
| 8973638320 | ISUZU | 2706028012 | TOYOTA |
| 8973638321 | ISUZU | 2706028020 | TOYOTA |
| 8973638322 | ISUZU | 2706038032 | TOYOTA |
| 8973638323 | ISUZU | 2706070010 | TOYOTA |
| 8973638330 | ISUZU | 2706070020 | TOYOTA |
| 8980542550 | ISUZU | ||
| 8980564390 | ISUZU | ||
| 8980564430 | ISUZU | ||
| 8980568670 | ISUZU |
replacing
Replacing | ||
|---|---|---|
| 021660-0330 | DENSO | |
| 27371-44070 | TOYOTA | |
| JNDX-30 | Japanese | |
| JAAX28 | Japanese | |
| ULJ403 | LUCAS | |
