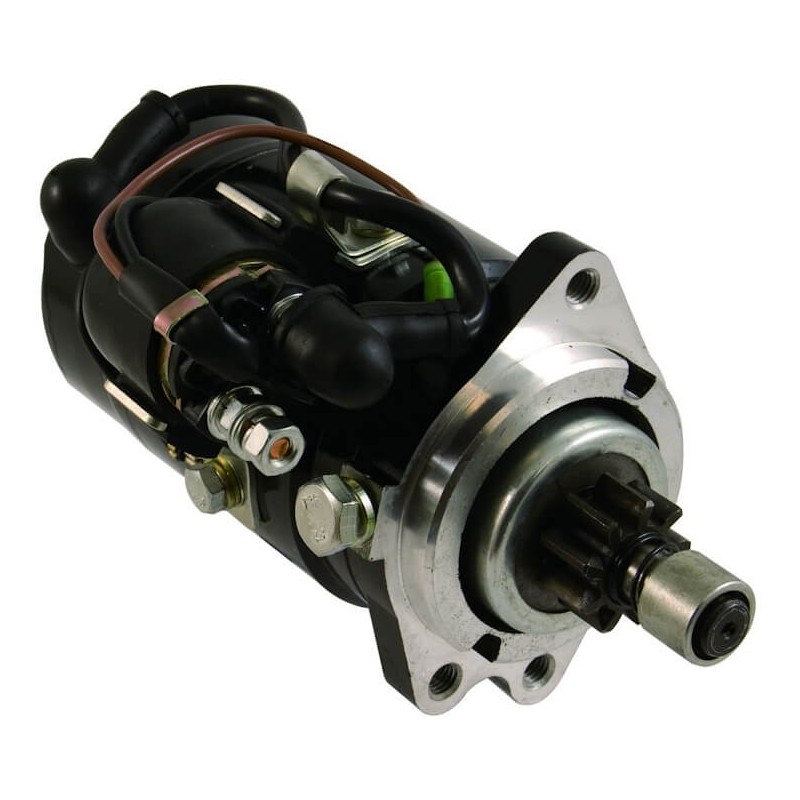

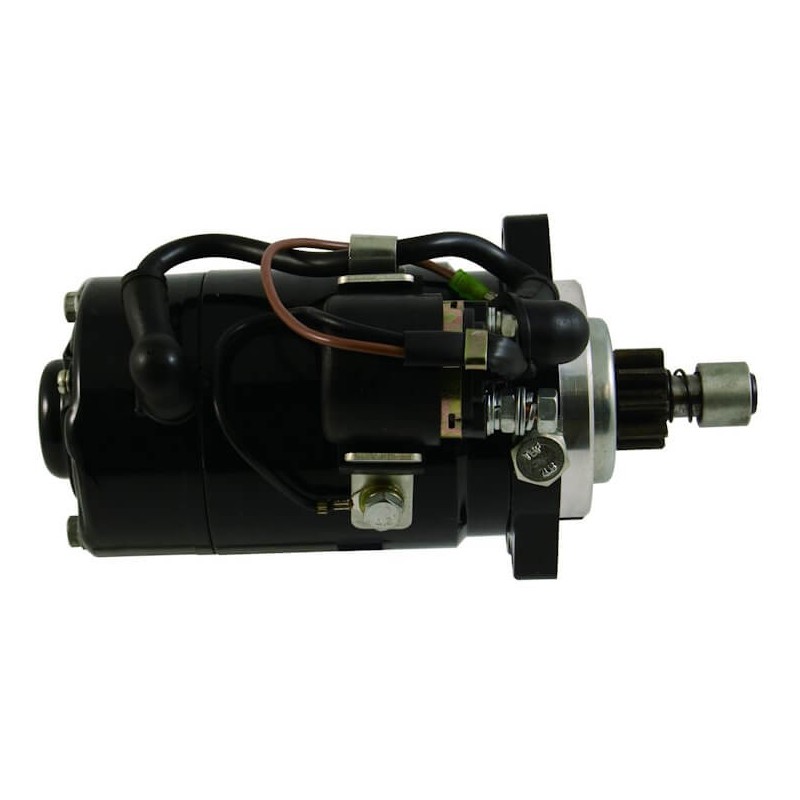

Starter replacing HITACHI S114-221J / S114-221H / S114- 221G

Information:

Voltage 12

KW 1.0

A = Mount flange 66.50

B = Drive distance 31.50

F = Distance / Back 134.00

G = Distance / Front 58.00

H = Nbr of teeth 9

B+ M6

Gear type Dd

O = Distance 89.00

O = Distance 2 26.00

O = Distance 3 86.00

Rotation COUNTER CLOCKWISE

Nbr of mounting holes 3 (3)

R = Total length mm 198.00

generic brand

HITACHI S114-220, S114-221, S114-221E, S114-221F, S114-221G, S114-221H, S114-221J, S114-221JN, MERCURY MARINE 50-81490M, 50-92669M, 50-97072M, 50-97072T, SUZUKI 31100-95240, 31100-95242, YAMAHA 676-81800-10, 676-81800-10-00, 697-81800-10, 697-81800-10-00, 697-81800-11, 697-81800-11-00, 697-81800-12, 697-81800-12-00, 697-81800-13, 697-81800-13-00

fits

Suzuki 9.9HP DT9.9 1978-1985
Suzuki 15HP DT14 1978-1985
Suzuki 16HP DT16 1978-1985
Suzuki 20HP DT20 1978-1985
Suzuki 25HP DT25 1978-1985
Suzuki 28HP DT28 1985
Suzuki 50HP DT50 1980-1988
Suzuki 65HP DT65 DT65M 1980-1982

Yamaha 55HP C55 1991-1995
Yamaha 55HP CV55 1989-1990
Yamaha 55HP 55B 1990-2010

Mercury Marine hors-bord 40E 36.1CI 40 HP 1978-1980
Mercury Marine hors-bord 40EL 36.1CI 40 HP 1978-1980
Mercury Marine hors-bord 55E 55 HP 1984-1985
Mercury Marine hors-bord 60EL 49.8CI 60 HP 1978-1983

                                       NO CORE EXCHANGE NEEDED

                                                         TWO YEARS WARRANTY
