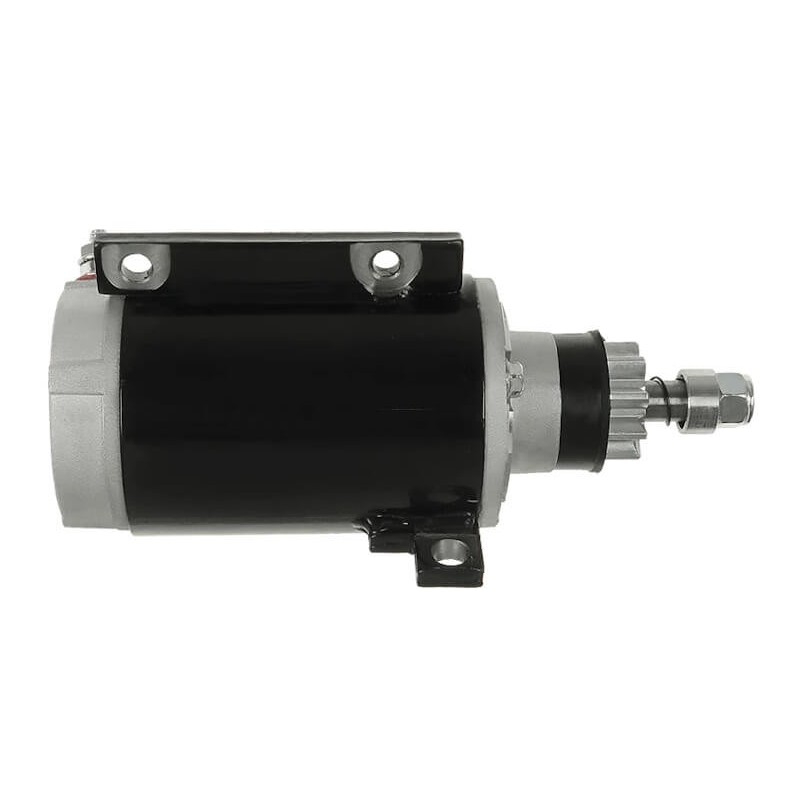

Starter replacing 583482 / 585056 / 586279 for Evinrude / JOHNSON
Starter for Evinrude / JOHNSON
= UNITED TECHNOLOGIES SMH12B43 / SMH12B42 / SM57053 / SM11279 / SM1122940 / SM11229 / SM08041
5705340MO30SM / 5705340-MO30SM / 5704620M030SM / 5059240MO30SM /1122940M030SM / 1122921M030SM
OMC 583482, 585056, 586279
NO CORE EXCHANGE NEEDED
More info
= BOMBARDIER 0586279DS00 / 0586280DS00
= ARCO MARINE 5371 / 5389
= UNITED TECHNOLOGIES SMH12B43 / SMH12B42 / SM57053 / SM11279 / SM1122940 / SM11229 / SM08041
5705340MO30SM / 5705340-MO30SM / 5704620M030SM / 5059240MO30SM /1122940M030SM / 1122921M030SM
= OMC 384163 / 385615 / 387684 / 389275
= PRESTOLITE MKW4006 / MGD4113 / MGD4013 / MGD4007A / MGD4007 / MCD4007
Information:
Voltage 12
KW 0.6

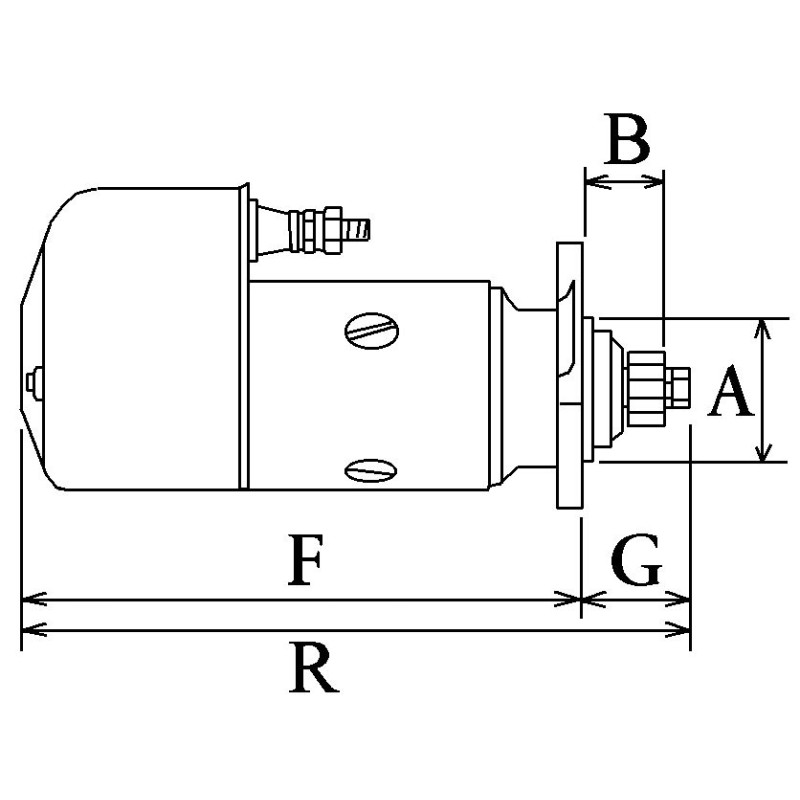

B = Drive distance 41.00
F = Distance / Back 130.00
G = Distance / Front 75.00
H = Nbr of teeth 9
B+ 1/4" UNC
Gear type Dd
O = Distance 71.40 distance between the mounting holes on the side
Rotation COUNTER CLOCKWISE
Nbr of mounting holes 3 (0)
Clutch Tipo Dry
generic brand
Replacing :
OUTBOARD MARINE CORP (OMC) 384163, 387684, 389275, 585063, 585603, 586280,
PRESTOLITE 20513579TBA, 46-2122, 46-2299, 46-2400, 46-2439, 46-976, MGD4007, MGD4007A, MGD4113, MKW4006, MKW4008
UNITED TECHNOLOGIES 1122940-M030SM, 1122940MO30SM, 5705340-M030SM, 5705340MO30SM, SM11229, SM1122940, SM57053, SMH12B43
Mounted on :
| Brand | Model | Typ | Year |
| EVINRUDE | E40E | [44.9ci-40H.P.] | 01.1989-12.1998 |
| EVINRUDE | E40EL | [44.9ci-40H.P.] | 01.1989-12.1998 |
| EVINRUDE | E40TE | [44.9ci-40H.P.] | 01.1989-12.1998 |
| EVINRUDE | E40TEL | [44.9ci-40H.P.] | 01.1989-12.1998 |
| EVINRUDE | E40TL | [44.9ci-40H.P.] | 01.1989-12.1998 |
| EVINRUDE | E40TTL | [44.9ci-40H.P.] | 01.1989-12.1998 |
| EVINRUDE | E48ESL | [44.9ci-48H.P.] | 01.1987-12.1996 |
| EVINRUDE | E50BE | [44.9ci-50H.P.] | 01.1989-12.1994 |
| EVINRUDE | E50BEL | [44.9ci-50H.P.] | 01.1989-12.1995 |
| EVINRUDE | E50TEL | [44.9ci-50H.P.] | 01.1989-12.1997 |
| EVINRUDE | E50TL | [44.9ci-50H.P.] | 01.1989-12.1997 |
| JOHNSON | 40E | [44.9ci-40H.P.] | 01.1989-12.1995 |
| JOHNSON | 40EL | [44.9ci-40H.P.] | 01.1989-12.1998 |
| JOHNSON | 40PL | [44.9ci-40H.P.] | 01.1999-12.2005 |
| JOHNSON | 40R | [44.9ci-40H.P.] | 01.1989-12.2001 |
| JOHNSON | 40TE | [44.9ci-40H.P.] | 01.1989-12.1998 |
| JOHNSON | 40TEL | [44.9ci-40H.P.] | 01.1989-12.1998 |
| JOHNSON | 40TL | [44.9ci-40H.P.] | 01.1989-12.1998 |
| JOHNSON | 40TPL | [44.9ci-40H.P.] | 01.1999-12.2001 |
| JOHNSON | 40TTL | [44.9ci-40H.P.] | 01.1989-12.1998 |
| JOHNSON | 48ESL | [44.9ci-48H.P.] | 01.1987-12.1996 |
| JOHNSON | 50EL | [44.9ci-50H.P.] | 01.1999-12.2001 |
| JOHNSON | 50ESL | [44.9ci-50H.P.] | 01.1997-12.1998 |
| JOHNSON | 50J Jet | [44.9ci-35H.P.] | 01.1991-12.1997 |
| JOHNSON | 50PL | [44.9ci-50H.P.] | 01.1999-12.2005 |
| JOHNSON | 50TEL | [44.9ci-50H.P.] | 01.1989-12.1995 |
| JOHNSON | 50TLE | [44.9ci-50H.P.] | 01.1989-12.1998 |
| JOHNSON | 50TSL | [44.9ci-50H.P.] | 01.1997-12.1998 |
