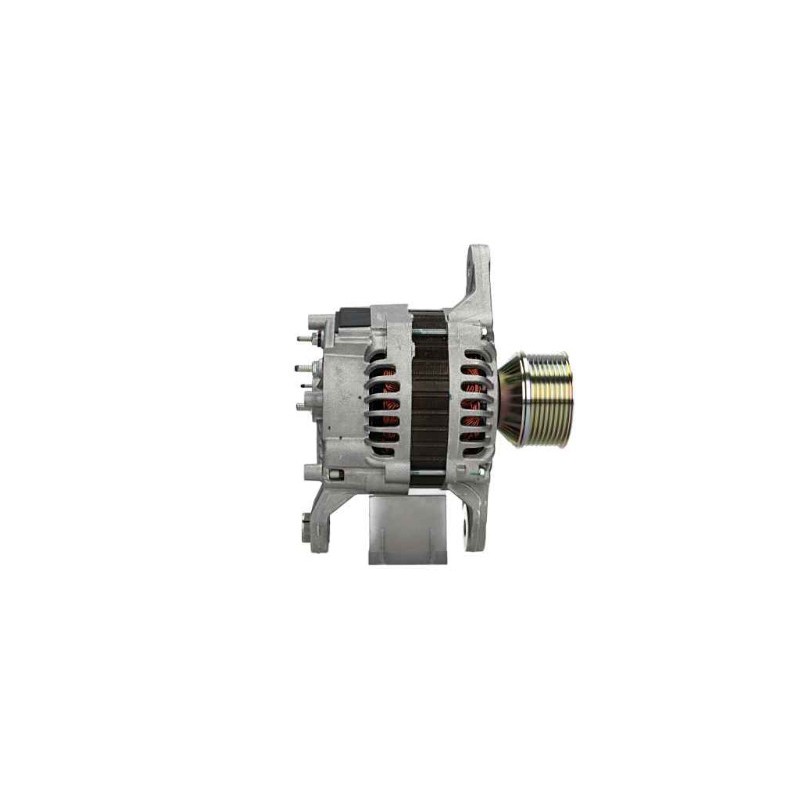

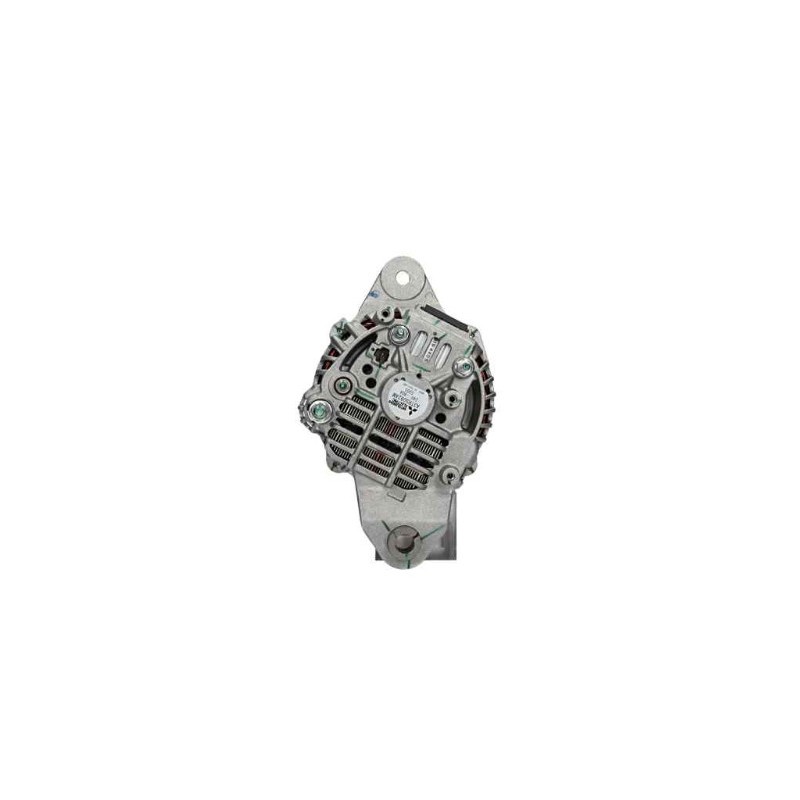

Alternator MITSUBISHI A3TR5092ZT / A3TR5092 / A3TR5092ZT for VOLVO PENTA
Alternator NEW replacing MITSUBISHI A3TR5092ZT / A3TR5092 / A3TR5092ZT / VOLVO 3587218 / 38038045
= DRA1116 / LRA04037
Generic Brand Model available w114843
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 28 | |
| Amp | 80 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 13.40 |
| G | Belt. adj. bracket hole | 11.20 |
| B | Width/holder arm | 13.50 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 104.00 |
| H | Pulley dia. | 72.00 |
| A | Pulley dist. | 44.50 |
| i | Grooves/pulley | 8 |
| j | Radius | 99.00 |
| j | Radius 2 | 99.00 |
| k | Position B + | M8 |
| n | Rotation | Cr |
| Q | Tipo prise W | 6.30 |
| R | Total length mm | 207.00 |
| Lamp | Active | |
Replacing | |
|---|---|
| 3587218 | VOLVO |
| A003TR5092ZT | MITSUBISHI |
| A3TR5092 | MITSUBISHI |
| A3TR5092ZT | MITSUBISHI |
| 114843 |
| 3587218 |
| 487646 |
| 816507080 |
| 816507080130 |
| 816507080370 |
| 816507080371 |
| 931116 |
| A003TR5092ZT |
| A003TR5092ZTDI |
| A3TR5092+ |
| A3TR5092ZT |
| DRA1116 |
| LRA04037 |
Generic Brand
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
