w12176n

Alternator NEW replacing :

Cushman 893876, MANDO AC165610, AC165616

MERCURY MARINE 805447T / 805884 / 805884P / 805884T

PRESTOLITE 20130179

SAE J1171 Certifié Marine / PULLEY 1 GROOVE

Mounted on :

MERCRUISER (1993-1999)

                                    NO CORE EXCHANGE NEEDED

                                                           TWO YEARS WARRANTY

Read more
€129.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Reference

12176N1G WAI / TRANSPO
CGB-13003 AINDE
28-3812CT AINDE
10443889 ALANKO
UD30175A AS-PL
CAL32170GS CASCO
538112652 DRI
ALT8735 ELECTROLOG
28-3812 ELSTOCK
AG0596 GHIBAUDI
20032170OV ITAB AUTOMOTIVE
LEA0417 LE PART
AC165610 MANDO
805447T MERCURY
805884 MERCURY
805884P MERCURY
805884T MERCURY
975.004.065.120 PSH
20193071OE REAL
2032170.1 SANDO
A12VA0612A2 SIDAT
AL01942 TMI
600087 VALEO
3856600 VOLVO
90-31-7003 WILSON
WOOALT35041 WOODAUTO
ALT35041 WOODAUTO
ALTS227 3EFFE
PRAS227 3EFFE
A136.202 PSH
401169RI KUHNER

Features

Information:

Electrical Information
Voltage 14
Amp 65
Physical Information
D Bracket hole 3/8"
G Belt. adj. bracket hole 5/16"
B Width/holder arm 50.70
E Belt. adj. brackethole pos. 60
H Pulley dia. 63.10
A Pulley dist. 72.00

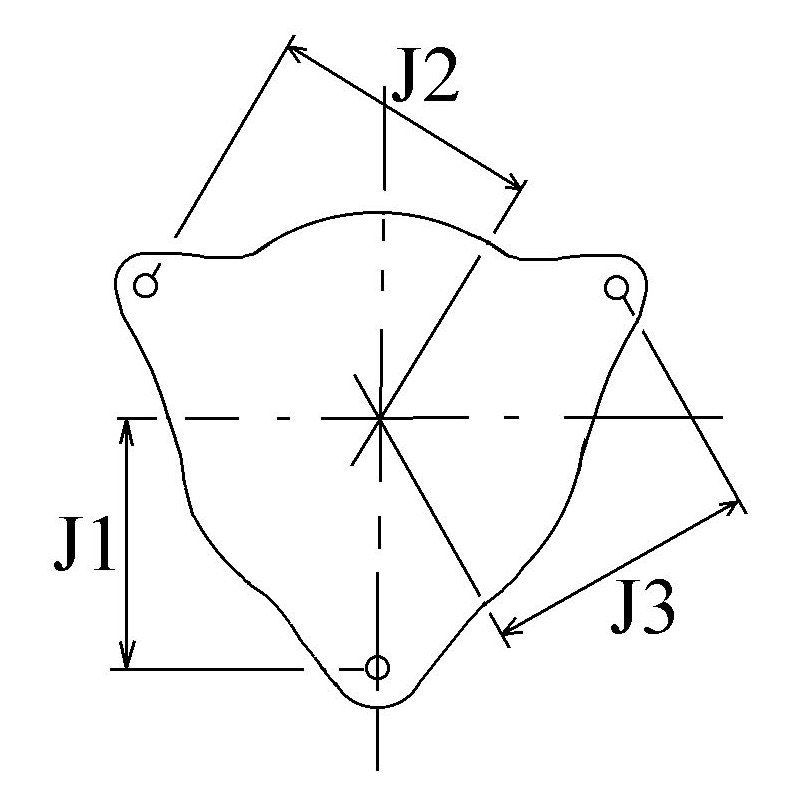

j Radius 83.00
j Radius 2 83.00
k Position B + 1/4" UNC
n Rotation CR/ACR

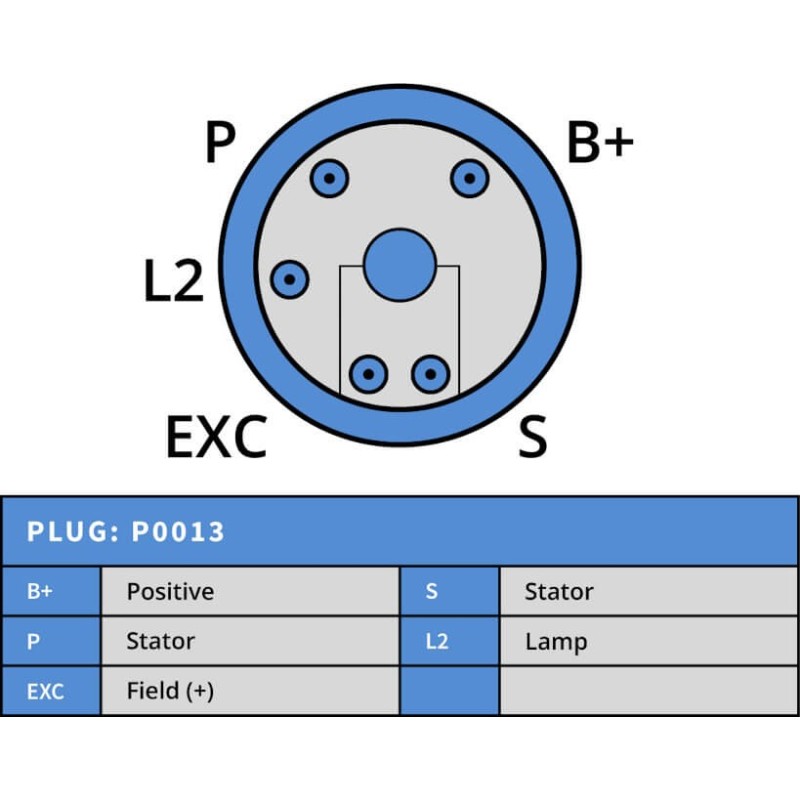

o Plug no. 1 PL_NA
R Total length mm 171.00
Replacing
60065 ARCO MARINE
805447t MERCURY MARINE
805884p MERCURY MARINE
80-5884p MERCURY MARINE
805884t MERCURY MARINE
80-5884t MERCURY MARINE
807653 MERCURY MARINE
80-7653 MERCURY MARINE
80-7653t MERCURY MARINE
ac165610 VALEO
ac165616 VALEO
893876 CUSHMAN

generic brand

Mounted on :

Brand Model Year Motor
Mercruiser Black Scorpion Ski (Gen +) 1996 GM 5.7L - 350ci - 8cyl
Mercruiser Model 350 Mag Bravo MPI (Gen +) 1996 GM 5.7L - 350ci - 8cyl
Mercruiser Model 350 Mag Bravo MPI 1995 GM 5.7L - 350ci - 8cyl
Mercruiser Model 350 Mag EFI Ski (Gen +) 1996 GM 5.7L - 350ci - 8cyl
Mercruiser Model 350 Mag EFI Ski (TBI) 1994-1996 GM 5.7L - 350ci - 8cyl
Mercruiser Model 350 Mag MPI Ski 1995-1996 GM 5.7L - 350ci - 8cyl
Mercruiser Model 454 EFI (Gen V) 1994-1996 GM 7.4L - 454ci - 8cyl
Mercruiser Model 454 EFI Ski (Gen V) 1995 GM 7.4L - 454ci - 8cyl
Mercruiser Model 454 Mag Bravo MPI (Gen VI) 1996-1999 GM 7.4L - 454ci - 8cyl
Mercruiser Model 454 Mag MPI (Gen VI) 1996-1997 GM 7.4L - 454ci - 8cyl
Mercruiser Model 454 Mag MPI Ski (Gen VI) 1996-1997 GM 7.4L - 454ci - 8cyl
Mercruiser Model 5.7L EFI (TBI) Alpha 1995 GM 5.7L - 350ci - 8cyl
Mercruiser Model 5.7L EFI (TBI) Bravo 1995 GM 5.7L - 350ci - 8cyl
Mercruiser Model 502 EFI (Gen V) 1993-1995 GM 8.2L - 502ci - 8cyl
Mercruiser Model 502 Mag MPI (Gen VI) 1996-1997 GM 8.2L - 502ci - 8cyl
Mercruiser Model 7.3L (Bravo & MIE) 1994-1998 IHC 7.3L - 444ci - 8cyl
Mercruiser Model 7.4L MIE MPI (LH) (Gen V) 1995-1996 GM 7.4L - 454ci - 8cyl
Mercruiser Model 7.4L MIE MPI (LH) (Gen VI) 1996-1997 GM 7.4L - 454ci - 8cyl
Mercruiser Model 7.4L MIE TBI (LH) (Gen VI) 1996-1997 GM 7.4L - 454ci - 8cyl
Mercruiser Model 7.4LX Bravo MPI (Gen V) 1996 GM 7.4L - 454ci - 8cyl
Mercruiser Model 7.4LX Bravo MPI (Gen VI) 1996-1997 GM 7.4L - 454ci - 8cyl
Mercruiser Model 7.4LX Bravo TBI (Gen VI) 1996-1997 GM 7.4L - 454ci - 8cyl
Mercruiser Model 7.4LX MPI (Gen V) 1996 GM 7.4L - 454ci - 8cyl
Mercruiser Model 7.4LX MPI (Gen VI) 1996-1997 GM 7.4L - 454ci - 8cyl
Mercruiser Model 7.4LX TBI (Gen VI) 1996-1997 GM 7.4L - 454ci - 8cyl
Mercruiser Model 8.2L MIE MPI (LH) (Gen VI) 1996-1997 GM 8.2L - 502ci - 8cyl
Mercruiser Model D2.8L D-Tronic (Bravo & MIE) 1997-1999 VM 2.8L - 169ci - 4cyl
Mercruiser Model D3.0L Bravo 1994-1997 VM 3.0L - 183ci - 5cyl
Mercruiser Model D3.0L MIE 1994-1995 VM 3.0L - 183ci - 5cyl
Mercruiser Model D3.6L Bravo 1994-1996 VM 3.6L - 219ci - 6cyl
Mercruiser Model D3.6L MIE 1994-1996 VM 3.6L - 219ci - 6cyl
Mercruiser Model D4.2L Bravo 1994-1995 VM 4.2L - 254ci - 6cyl
Mercruiser Model D4.2L MIE 1994-1995 VM 4.2L - 254ci - 6cyl
Mercruiser Model D4.2L/250 D-Tronic 1997-1999 VM 4.2L - 254ci - 6cyl

Mounting on

Brand Model Typ Year Brand Model Typ Year
CUMMINS Engine 2.8 EI165 01.2004 - 12.2005 MERCRUISER Engine 7.4 454 Mag MPi Horizon 454ci-8cyl 01.2001 - 12.2011
CUMMINS Engine 2.8 ES165 01.2004 - 12.2005 MERCRUISER Engine 7.4 454 Mag MPi Horizon (Gen VI) 454ci-8cyl 01.1998 - 12.2008
CUMMINS Engine 4.2 EI250 01.2004 - 12.2005 MERCRUISER Engine 7.4 454 Mag MPi Ski (Gen VI) 454ci-8cyl 01.1996 - 12.1997
CUMMINS Engine 4.2 EI300 01.2004 - 12.2005 MERCRUISER Engine 7.4 EFi MPi Magnum SD 454ci-8cyl 01.1993 - 12.1996
CUMMINS Engine 4.2 ES250 01.2004 - 12.2005 MERCRUISER Engine 7.4 EFi MPi Ski (Gen.V) IB 454ci-8cyl 01.1995 - 12.1997
CUMMINS Engine 4.2 ES300 01.2004 - 12.2005 MERCRUISER Engine 7.4 IB 454ci-8cyl 01.1989 - 12.1992
CUSHMAN Engine   01.1995 - 12.2005 MERCRUISER Engine 7.4 Magnum (Gen.V) SD 454ci-8cyl 01.1992 - 12.1994
MERCRUISER Engine 2.8 D-Tronic (Bravo & MIE) 169ci-4cyl 01.1997 - 12.1999 MERCRUISER Engine 7.4 Magnum (Gen.VI) 454ci-8cyl 01.1996 - 12.1997
MERCRUISER Engine 2.8 D2.8 D-Tronic SD 169ci-4cyl 01.1997 - 12.2004 MERCRUISER Engine 7.4 Magnum (Gen.VThunderbolt V) 454ci-8cyl 01.1995 - 12.1996
MERCRUISER Engine 3.0 3.0X SD 181ci-4cyl 01.1990 - 12.1995 MERCRUISER Engine 7.4 Magnum SD 454ci-8cyl 01.1988 - 12.1992
MERCRUISER Engine 3.0 Bravo 183ci-5cyl 01.1994 - 12.1997 MERCRUISER Engine 7.4 MIE MPi (L29) (Gen VI) 454ci-8cyl 01.1998 - 12.2000
MERCRUISER Engine 3.0 D3.0/150 183ci-5cyl 01.1994 - 12.1997 MERCRUISER Engine 7.4 MIE MPi (LH) (Gen V) 454ci-8cyl 01.1995 - 12.1996
MERCRUISER Engine 3.0 MIE 183ci-5cyl 01.1994 - 12.1995 MERCRUISER Engine 7.4 MIE MPi (LH) (Gen VI) 454ci-8cyl 01.1996 - 12.1997
MERCRUISER Engine 3.6 Bravo 219ci-6cyl 01.1994 - 12.1996 MERCRUISER Engine 7.4 MIE TBi (LH) (Gen VI) 454ci-8cyl 01.1996 - 12.1997
MERCRUISER Engine 3.6 D3.6/189 219ci-6cyl 01.1994 - 12.2004 MERCRUISER Engine 7.4 MPi (Gen VI) 454ci-8cyl 01.1998 - 12.1998
MERCRUISER Engine 3.6 MIE 219ci-6cyl 01.1994 - 12.1996 MERCRUISER Engine 7.4 MPi (Gen.V) IB 454ci-8cyl 01.1995 - 12.1996
MERCRUISER Engine 3.6 W Bravo (Export) 219ci-6cyl 01.1996 - 12.2006 MERCRUISER Engine 7.4 MPi (Gen.V) SD 454ci-8cyl 01.1996 - 12.1996
MERCRUISER Engine 4.2 250 D-Tronic 254ci-6cyl 01.1997 - 12.1999 MERCRUISER Engine 7.4 MPi EFi TBi (Gen.VVI) SD 454ci-8cyl 01.1996 - 12.2000
MERCRUISER Engine 4.2 Bravo 254ci-6cyl 01.1994 - 12.1995 MERCRUISER Engine 7.4 MPi Magnum (Gen.VI) IB SD 454ci-8cyl 01.1996 - 12.2004
MERCRUISER Engine 4.2 D4.2/220250300 D-Tronic SD 254ci-6cyl 01.1994 - 12.2004 MERCRUISER Engine 7.4 MPi Magnum Ski (Gen.VI) IB 454ci-8cyl 01.1996 - 12.1997
MERCRUISER Engine 4.2 D4.2D SD 254ci-6cyl 01.1994 - 12.2004 MERCRUISER Engine 7.4 MPi TBi (Gen.VI) IB 454ci-8cyl 01.1996 - 12.1997
MERCRUISER Engine 4.2 MIE 254ci-6cyl 01.1994 - 12.1995 MERCRUISER Engine 7.4 X Bravo MPi (Gen V) 454ci-8cyl 01.1996 - 12.1996
MERCRUISER Engine 4.3 175 SD 262ci-6cyl 01.1987 - 12.1992 MERCRUISER Engine 7.4 X Bravo MPi (Gen VI) 454ci-8cyl 01.1996 - 12.1997
MERCRUISER Engine 4.3 262 Mag (Gen +) (TBi) 262ci-6cyl 01.1996 - 12.1997 MERCRUISER Engine 7.4 X Bravo TBi (Gen VI) 454ci-8cyl 01.1996 - 12.1997
MERCRUISER Engine 4.3 EFi 262ci-6cyl 01.1999 - 12.1999 MERCRUISER Engine 7.4 X MPi (Gen V) 454ci-8cyl 01.1996 - 12.1996
MERCRUISER Engine 4.3 EFi (Gen +) TBi 262ci-6cyl 01.1998 - 12.2000 MERCRUISER Engine 7.4 X MPi (Gen VI) 454ci-8cyl 01.1996 - 12.1997
MERCRUISER Engine 4.3 SD 262ci-6cyl 01.1996 - 12.1997 MERCRUISER Engine 7.4 X MPi (Gen VI) (L29) 454ci-8cyl 01.1998 - 12.2000
MERCRUISER Engine 4.3 X LXH 262ci-6cyl 01.1992 - 12.1997 MERCRUISER Engine 7.4 X TBi (Gen VI) 454ci-8cyl 01.1996 - 12.1997
MERCRUISER Engine 5.0 (200) 2Bbl IB 305ci-8cyl 01.1985 - 12.1987 MERCRUISER Engine 8.2 (465) SD 502ci-8cyl 01.1990 - 12.1994
MERCRUISER Engine 5.0 (230) 4Bbl IB 305ci-8cyl 01.1987 - 12.1997 MERCRUISER Engine 8.2 (500) SD 502ci-8cyl 01.1994 - 12.1996
MERCRUISER Engine 5.0 EFi (Gen +) 305ci-8cyl 01.1998 - 12.2001 MERCRUISER Engine 8.2 (600SC) SD 502ci-8cyl 01.1991 - 12.1996
MERCRUISER Engine 5.0 EFi SD 305ci-8cyl 01.1998 - 12.2004 MERCRUISER Engine 8.2 (Gen.V) IB 502ci-8cyl 01.1993 - 12.1996
MERCRUISER Engine 5.7 (260) 4Bbl IB 350ci-8cyl 01.1987 - 12.1995 MERCRUISER Engine 8.2 502 EFi (Gen V) 502ci-8cyl 01.1993 - 12.1995
MERCRUISER Engine 5.7 350 Mag Alpha EFi (Gen +) 350ci-8cyl 01.1996 - 12.1997 MERCRUISER Engine 8.2 502 Mag MPi (Gen VI) 502ci-8cyl 01.1996 - 12.2008
MERCRUISER Engine 5.7 350 Mag Bravo MPi 350ci-8cyl 01.1995 - 12.1995 MERCRUISER Engine 8.2 502 Mag MPi Bravo (Gen VI) 502ci-8cyl 01.1998 - 12.1999
MERCRUISER Engine 5.7 350 Mag Bravo MPi (Gen +) 350ci-8cyl 01.1996 - 12.1997 MERCRUISER Engine 8.2 EFi MPi Magnum SD 502ci-8cyl 01.1993 - 12.1996
MERCRUISER Engine 5.7 350 Mag EFi Ski (Gen +) 350ci-8cyl 01.1996 - 12.1997 MERCRUISER Engine 8.2 IB 502ci-8cyl 01.1990 - 12.1992
MERCRUISER Engine 5.7 350 Mag EFi Ski (TBi) 350ci-8cyl 01.1994 - 12.1996 MERCRUISER Engine 8.2 Magnum SD 502ci-8cyl 01.1990 - 12.1992
MERCRUISER Engine 5.7 350 Mag MPi (Gen +) 350ci-8cyl 01.1998 - 12.2009 MERCRUISER Engine 8.2 MIE MPi (LH) (Gen VI) 502ci-8cyl 01.1996 - 12.2010
MERCRUISER Engine 5.7 350 Mag MPi Alpha & Bravo 350ci-8cyl 01.1998 - 12.2000 MERCRUISER Engine 8.2 MPi (Gen.VI) IB 502ci-8cyl 01.1996 - 12.1999
MERCRUISER Engine 5.7 350 Mag MPi Horizon 350ci-8cyl 01.1999 - 12.2009 MERCRUISER Engine 8.2 MPi Magnum (Gen.VI) SD 502ci-8cyl 01.1996 - 12.2004
MERCRUISER Engine 5.7 350 Mag MPi MIE (Gen +) 350ci-8cyl 01.1998 - 12.1999 MERCRUISER Engine 8.9 (500) Bulldog SD 540ci-8cyl 01.1990 - 12.1996
MERCRUISER Engine 5.7 350 Mag MPi Ski 350ci-8cyl 01.1995 - 12.1996 MERCRUISER Engine 9.4 (800SC) SD 572ci-8cyl 01.1993 - 12.1996
MERCRUISER Engine 5.7 350 Mag MPi Ski (Gen +) 350ci-8cyl 01.1998 - 12.2008 OMC Engine 262HP-8cyl 01.1987 - 12.1989
MERCRUISER Engine 5.7 4Bbl. Magnum SD 350ci-8cyl 01.1996 - 12.1996 OMC Engine 3.0 181ci-4cyl 01.1985 - 12.1993
MERCRUISER Engine 5.7 Black Scorpion Ski (Gen +) 350ci-8cyl 01.1996 - 12.2007 OMC Engine 4.3 262ci-6cyl 01.1985 - 12.1998
MERCRUISER Engine 5.7 Black Scorpion Ski IB 350ci-8cyl 01.1996 - 12.2001 OMC Engine 5.7 350ci-8cyl 01.1994 - 12.1998
MERCRUISER Engine 5.7 Competitive Ski IB 350ci-8cyl 01.1987 - 12.1997 OMC Engine 5.8 351ci-8cyl 01.1994 - 12.1996
MERCRUISER Engine 5.7 EFI (Gen +) 350ci-8cyl 01.1998 - 12.2008 OMC Engine 7.4 454ci-8cyl 01.1985 - 12.1996
MERCRUISER Engine 5.7 EFi (Gen +) MIE 350ci-8cyl 01.1997 - 12.2007 OMC Engine 8.2 502ci-8cyl 01.1992 - 12.1993
MERCRUISER Engine 5.7 EFi (TBi) (2-BBL) 350ci-8cyl 01.1996 - 12.1997
MERCRUISER Engine 5.7 EFi (TBi) Alpha 350ci-8cyl 01.1995 - 12.1995
MERCRUISER Engine 5.7 EFi (TBi) Bravo 350ci-8cyl 01.1995 - 12.1995
MERCRUISER Engine 5.7 EFi IB SD 350ci-8cyl 01.1995 - 12.1997
MERCRUISER Engine 5.7 EFi MPi Magnum IB SD 350ci-8cyl 01.1995 - 12.2001
MERCRUISER Engine 5.7 EFi MPi TBi Magnum Ski IB 350ci-8cyl 01.1994 - 12.2003
MERCRUISER Engine 5.7 EFi TBi SD 350ci-8cyl 01.1996 - 12.2001
MERCRUISER Engine 5.7 IB 350ci-8cyl 01.1994 - 12.1996
MERCRUISER Engine 5.7 Magnum Ski IB 350ci-8cyl 01.1991 - 12.1996
MERCRUISER Engine 5.7 SD 350ci-8cyl 01.1996 - 12.1996
MERCRUISER Engine 5.7 X Bravo EFi (Gen +) 350ci-8cyl 01.1996 - 12.1997
MERCRUISER Engine 5.7 X EFi (TBi) (2-BBL) 350ci-8cyl 01.1997 - 12.1997
MERCRUISER Engine 5.7 X EFi (TBi) (4-BBL) 350ci-8cyl 01.1996 - 12.1997
MERCRUISER Engine 6.2 377 Scorpion (Gen+) (Ski) 377ci-8cyl 01.1997 - 12.2007
MERCRUISER Engine 6.2 377 Scorpion Sterndrive 377ci-8cyl 01.2000 - 12.2010
MERCRUISER Engine 6.2 Scorpion 377 Ski (Gen.+) SD 377ci-8cyl 01.1997 - 12.2004
MERCRUISER Engine 7.3 444ci-8cyl 01.1994 - 12.2004
MERCRUISER Engine 7.3 (Bravo & MIE) 444ci-8cyl 01.1994 - 12.1998
MERCRUISER Engine 7.4 (Gen.V) IB 454ci-8cyl 01.1992 - 12.1996
MERCRUISER Engine 7.4 (Gen.V) SD 454ci-8cyl 01.1992 - 12.1996
MERCRUISER Engine 7.4 454 EFi (Gen V) 454ci-8cyl 01.1994 - 12.1996
MERCRUISER Engine 7.4 454 EFi Ski (Gen V) 454ci-8cyl 01.1995 - 12.1995
MERCRUISER Engine 7.4 454 Mag Bravo MPi (Gen VI) 454ci-8cyl 01.1996 - 12.1999
MERCRUISER Engine 7.4 454 Mag MPi (Gen VI) 454ci-8cyl 01.1996 - 12.2011

Fiche technique

Poulie
serpentine
Connecteur régulateur
PL6
Ampérage
140
Voltage
14

Customer reviews

Alternator NEW replacing MERCURY MARINE 805447T / 805884 / 805884P / 805884T
Reviews about this product
Logo Société des Avis Garantis Show attestation

Reviews subject to control

0
1★
0
2★
0
3★
0
4★
3
5★
10/10


Based on 3 reviews

  • 5

    Price, quality, speed, seriousness. (Translated review)

  • 5

    Fast and efficient (Translated review)

  • 5

    VERY GOOD (Translated review)



Customers who bought this product also bought:

Previous
Next

16 other products in the same category:

Previous
Next
Do you have any questions?

Do you have any questions?

See our FAQ Contact us
Wagendass is committed to the durability of your vehicle

Wagendass is committed to the durability of your vehicle

New parts, no deposit, 2-year guarantee

Read more

Spare parts warranties with Wagendass

  • New parts
  • No deposits
  • 2-year warranty for all vehicle types

How to find your replacement part on the Wagendass website?

The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.

The part number can be numeric or alphanumeric, and can be found on your part.

Once you've found the part number, enter it in the search bar at the top center of our site.

The result will be the replacement part matching your part number.

Spare parts warranties with Wagendass
New parts

Original and adaptable
No deposits

No return of the old
Secure payments

Amex,CB,Visa,MasterCard in 3D Secure and PayPal
Fast delivery

France and International
