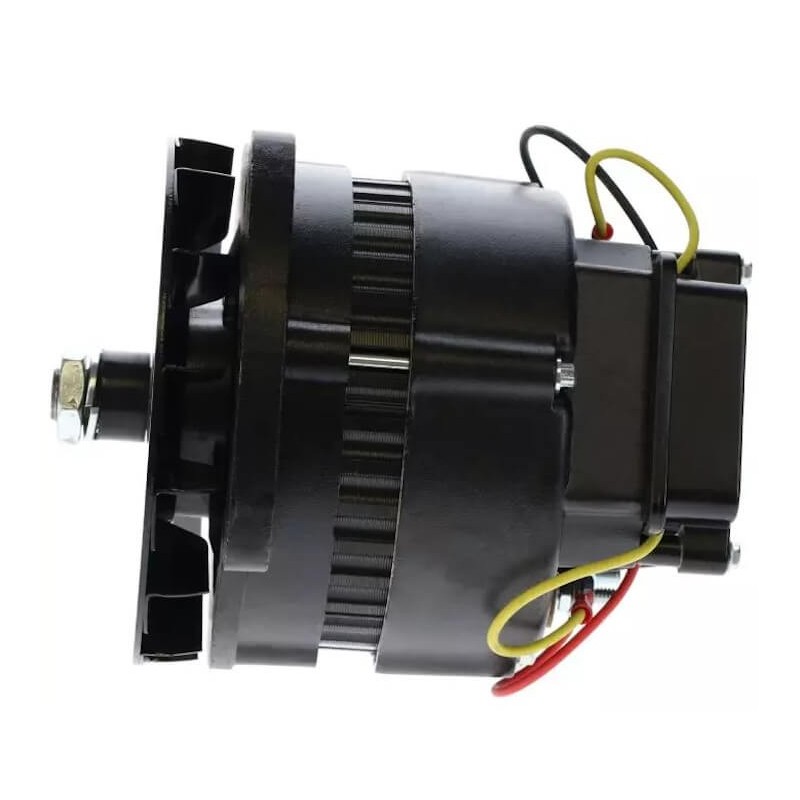

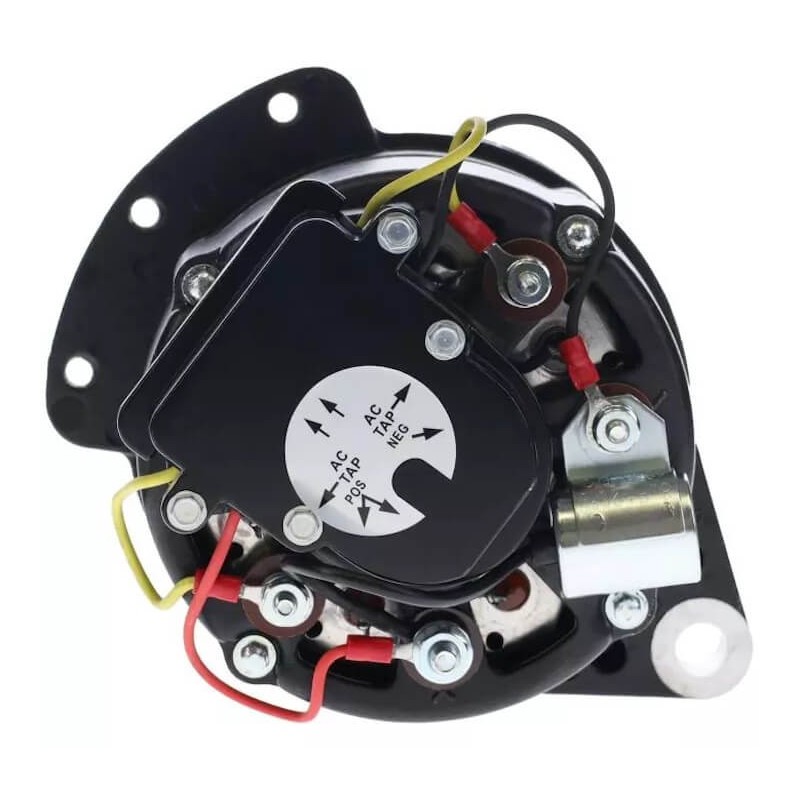

Alternator NEW für CATERPILLAR marine / industrial
28V - 35 Ampere
without pulley
CATERPILLAR 6P1395, 6T1395
Halliburton Services 0106000047, 010600047
MOTOROLA 10-285, 8HC3022F, 8HC3022FS
PRESTOLITE 110-285
Sachin 68098639
NO CORE EXCHANGE NEEDED
| Voltage | 28 | |
| Amp | 35 | |
| Insulated return | Oui | |
Physical Information | ||
|---|---|---|

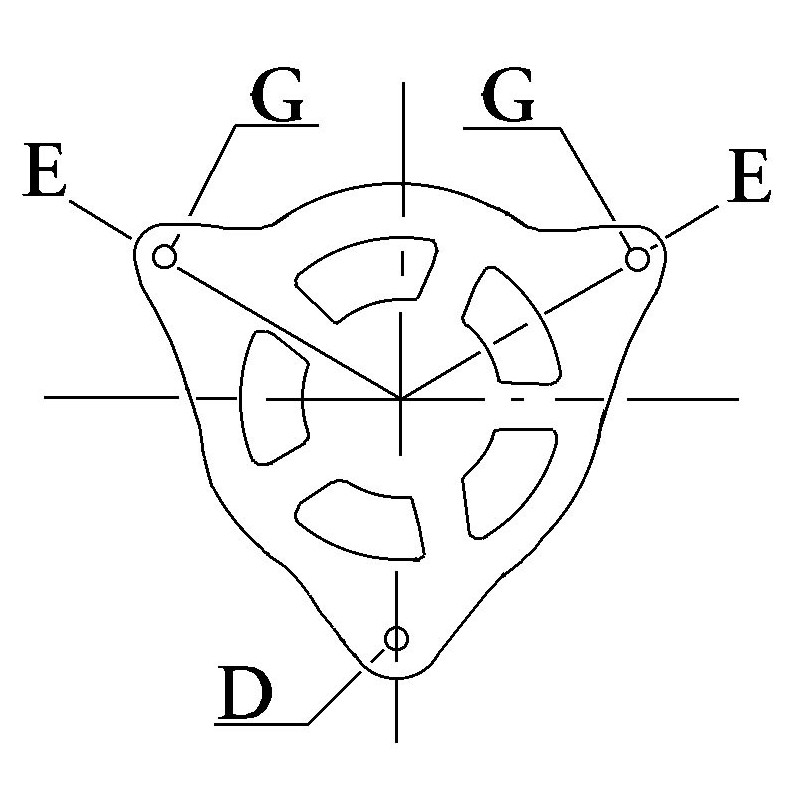

| D | Bracket hole | 13.00 |
| G | Belt. adj. bracket hole | 5/16UNC |

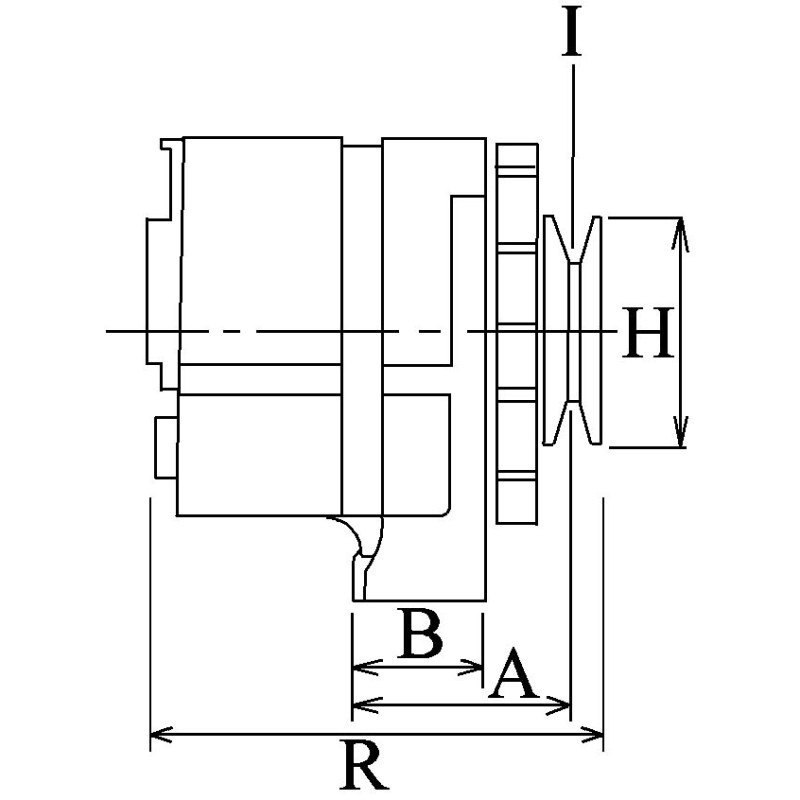

| B | Width/holder arm | 27.20 |
| E | Belt. adj. brackethole pos. | 55 |
| E | Ceinture from soutien réglable/ pos. 2 | 60 |

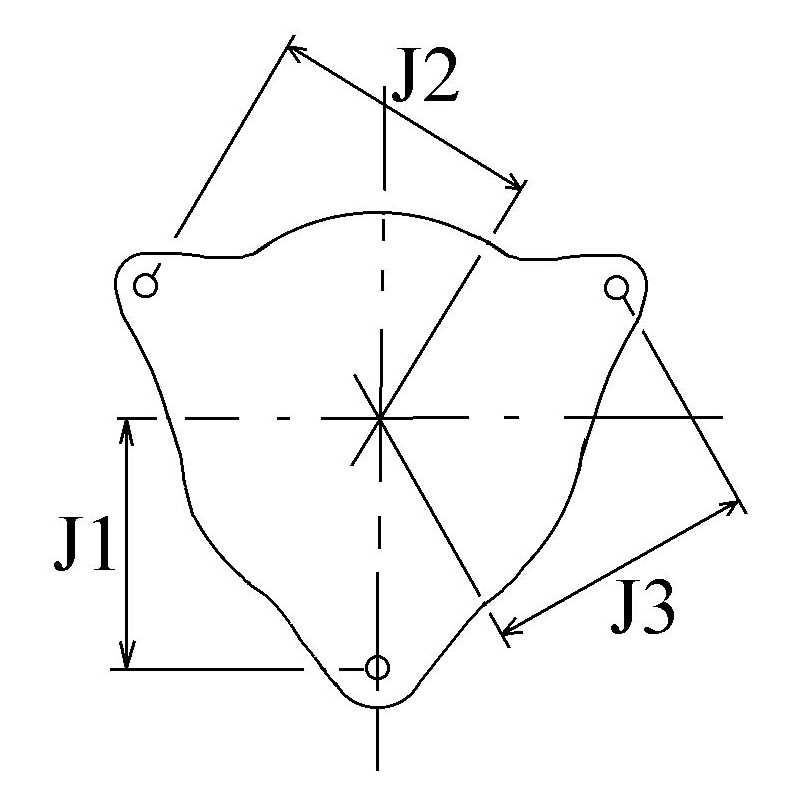

| j | Radius | 83.50 |
| j | Radius 2 | 83.00 |
| j | Radius 3 | 82.00 |
| j | Radius 4 | 83.00 |
| k | Position B + | 1/4" UNC |
| n | Rotation | Cr |
| o | Plug no. 1 | PL_NA |
| G | Belt. adj. bracket hole 2 2 | 5/16UNC |
| Q | Tipo prise W | 3/16"UNF |
| R | Total length mm | 186.00 |
| E | Belt. adj. brackethole pos. 3 | 5 |
| G | Belt. adj. bracket hole 3 | 5/16UNC |
| Un fil from branchement: (auto-excitation) | Oui | |
More information | ||
|---|---|---|
| Fan | Ef | |
| Pulley | Without | |
| Tipo regulator | Ir | |
| Remarks | D+ = 3/16 W. | |
Reference replacinge :
| 0R3653 | CATERPILLAR |
| 110-285 | MOTOROLA USA |
| 110-313 | MOTOROLA |
| 6T1395 | CATERPILLAR |
| 7T2095 | CATERPILLAR |
| 8hc3022f | MOTOROLA USA |
| 8HC3022FS | MOTOROLA USA |
| 8hc3025f | MOTOROLA USA |
| 010600047 | HALLIBURTON SERVICES |
| 68098639 | SACHIN |
fits:
1997-On CATERPILLAR 3304
1997-On CATERPILLAR 3306
1997-92 CATERPILLAR 3406
1997-92 CATERPILLAR 3408
1997-92 CATERPILLAR 3412
generic brand
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
