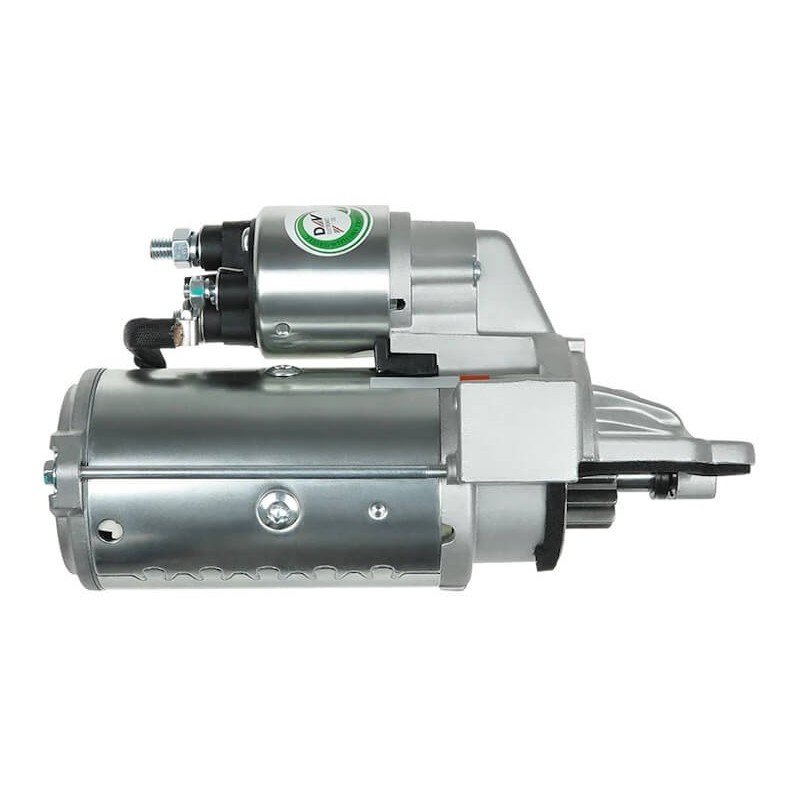

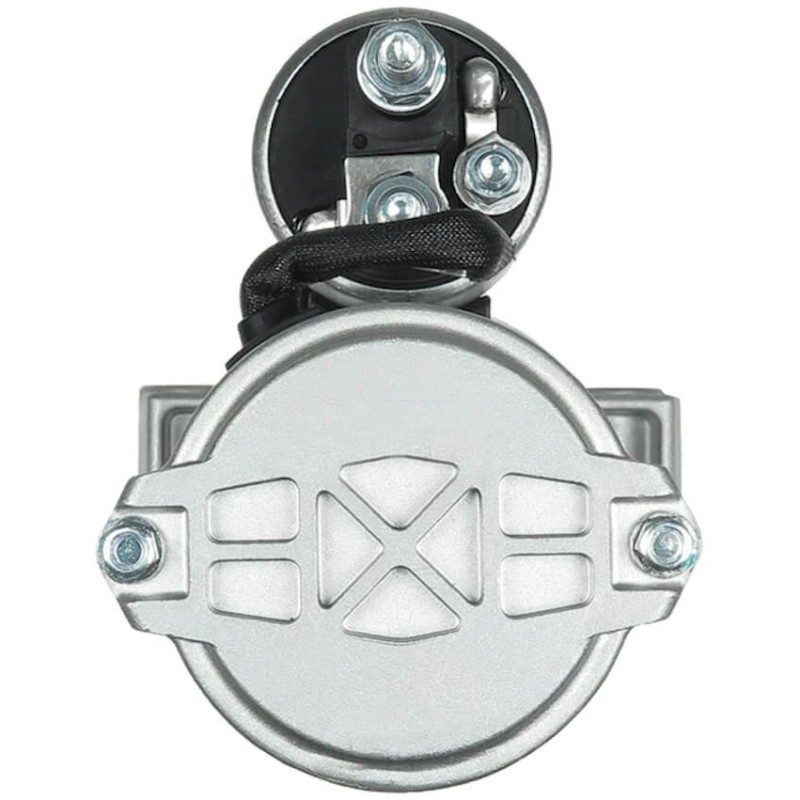

Starter replacing TS2229 / TS22-29 / 1880119 / BK3T11000FA
CST15306 | Casco |
|---|---|
CST15306AS | Casco |
CST15306GS | Casco |
DRS1173 | Remy |
DS2283 | Remy |
IR1082 | Protech |
LRS04049 | Lucas |
LRS4049 | Lucas |
MSN8101 | Magneti Marelli |
More info
Electrical information | |
|---|---|
| Voltage | 12 |
| Kw | 2.2 |
IT IS IMPORTANT TO THOROUGHLY CLEAN THE BELL AND REMOVE ALL IRON FILINGS BEFORE FITTING THE NEW STARTER.

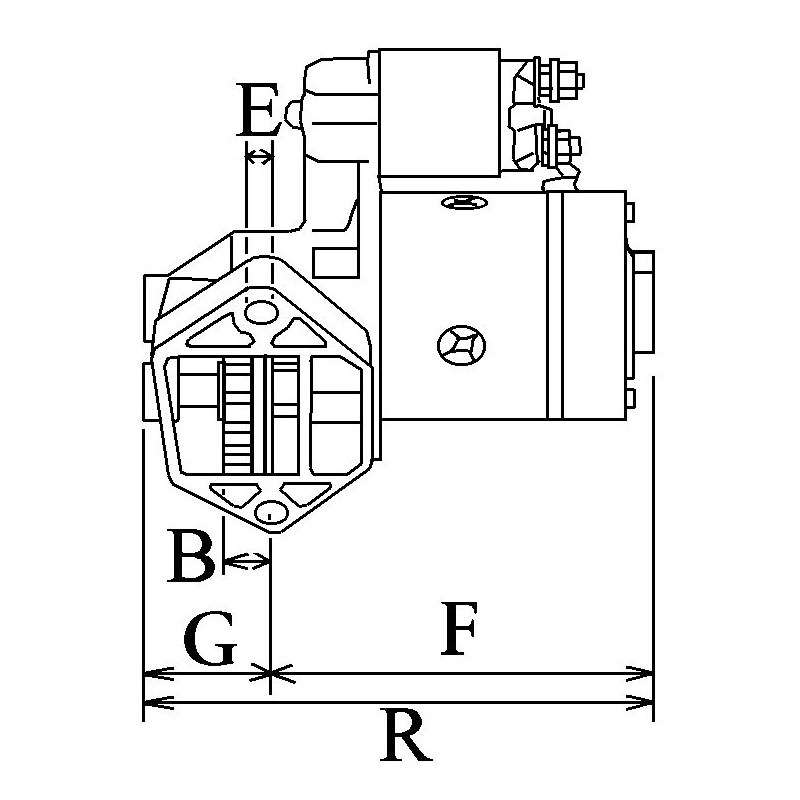

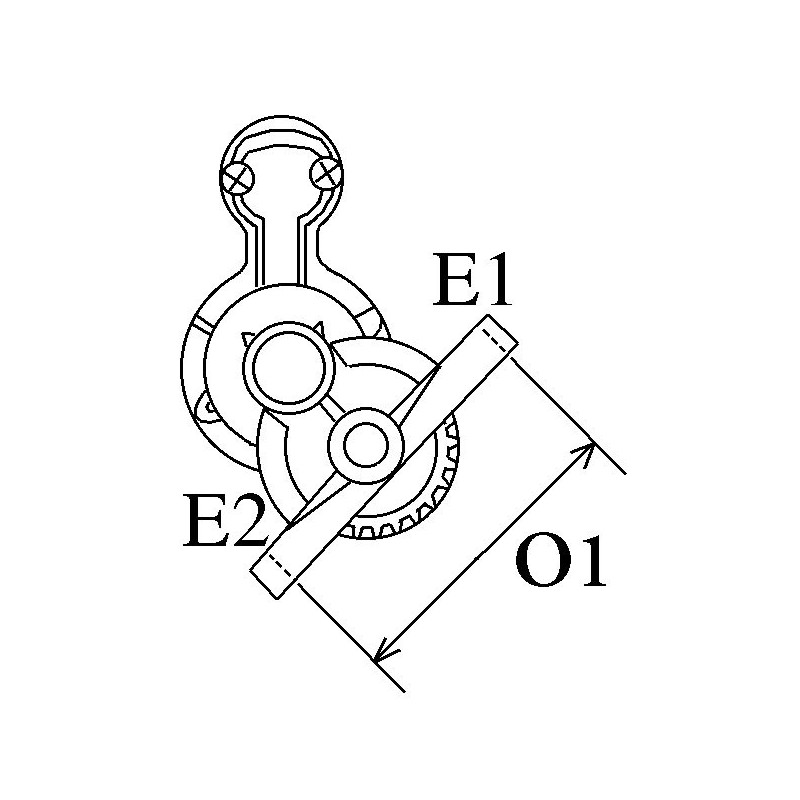

Physical information
| H | No./teeth | 12 |
| P | Rotation | CW |
| N | Gear type | GR |
| I | B+ | M8 |
| No./mount. holes | 2 (0) | |
| B | Drive dist. | 35.00 |
| E | Mount. holes | 10/13mm |
| E | Mount. hole 2 | 10/13mm |
| F | Dist./back | 152.00 |
| G | Dist./front | 84.00 |
| O | Dist. mm | 89.00 |
| R | Total length mm | 236.00 |
replacing
| 210626 | VALEO | LRS4049 | LUCAS |
| 438321 | VALEO | IR1082 | PROTECH |
| 458749 | VALEO | 332048M | MEC DIESEL |
| STR00329 | ELECTROLOG | 255696V | KUHNER |
| TS22-29 | VALEO | 30353-OS | WAI / TRANSPO |
| 255696 | KUHNER | 3672 | CEVAM |
| A92900 | ATL AUTOTECHNIK | 30353N | WAI / TRANSPO |
| SVA306 | AUTOTEAM | 88214913 | POWERMAX |
| SVA306A | AUTOTEAM | S1409V | PRESTOLITE |
| 0986026590 | BOSCH | FO9101 | SNRA |
| 590.599.122.000 | PSH | 447ST21 | STARTCAR |
| 590.599.122.008 | PSH | ST02171 | TMI |
| 590.599.122.500 | PSH | WG2151001 | WILMINK GROUP |
| 590.599.122.505 | PSH | 5015874 | MEAT & DORIA |
| CST15306AS | CASCO | VAL438321 | WOODAUTO |
| CST15306GS | CASCO | VALTS22-29 | WOODAUTO |
| 6015306.0 | SANDO | RNLTS22-29 | RNL |
| 6015306.1 | SANDO | STM1351 | ROLLCO |
| 20479603BN | REAL | STR54200 | WOODAUTO |
| 20479603OE | REAL | DRS1173 | DELCO |
| DSN3050 | DENSO | DS2283 | DELCO |
| 319202122 | DRI | BK3T-11000-FA | FORD |
| 12447 | EAI | 1880119 | FORD |
| 25-5212 | ELSTOCK | MSN8101 | MAGNETI MARELLI |
| EZ0233 | ELTA AUTOMOTIVE | 63280101010 | MAGNETI MARELLI |
| 221032 | ERA | WOOSTR54200 | WOODAUTO |
| 11090397 | EUROTEC | CGB-21173 | AINDE |
| 108653 | FARCOM | UD90367S | AS-PL |
| S12VA0482A2 | SIDAT | S3218S | AS-PL |
| SG2133 | GHIBAUDI | 331707 | LOGISTIK |
| 116516 | CARGO | 1741087 | FORD |
| 8EA011612-851 | HELLA | 2242412 | FORD |
| 3122979 | HENKEL PARTS | CC1T-11000-BA | FORD |
| 10015306AV | ITAB AUTOMOTIVE | CC1T-11000-BB | FORD |
| 10015306OV | ITAB AUTOMOTIVE | CC1T11000BA | FORD |
| LRS04049 | LUCAS | CC1T11000BB | FORD |
| REBK3T-11000-FA | FORD |
Fits :
| Brand | Model | Typ | Year |
| FORD | Transit 2.2 TDCi 4x4 | [CV24] | 01/08/13 |
| FORD | Transit 2.2 TDCi 4x4 | [CV24] | 01/08/15 |
| FORD | Transit 2.2 TDCi 4x4 | [CVR5] | 01/08/13 |
| FORD | Transit 2.2 TDCi 4x4 | [CVR5] | 01/08/15 |
| FORD | Transit 2.2 TDCi 4x4 | [CY24] | 01/08/13 |
| FORD | Transit 2.2 TDCi 4x4 | [CYR5] | 01/08/13 |
| FORD | Transit 2.2 TDCi RWD | [CV24] | 01/08/13 |
| FORD | Transit 2.2 TDCi RWD | [CVR5] | 01/08/13 |
| FORD | Transit 2.2 TDCi RWD | [CYR5] | 01/08/13 |
| FORD | Transit 2.2 TDCi RWD | [DRR5] | 01/08/13 |
| FORD | Transit 2.2 TDCi RWD | [USR6] | 01/08/13 |
| FORD | Transit 2.2 TDCi RWD | [UYR6] | 01/08/13 |
