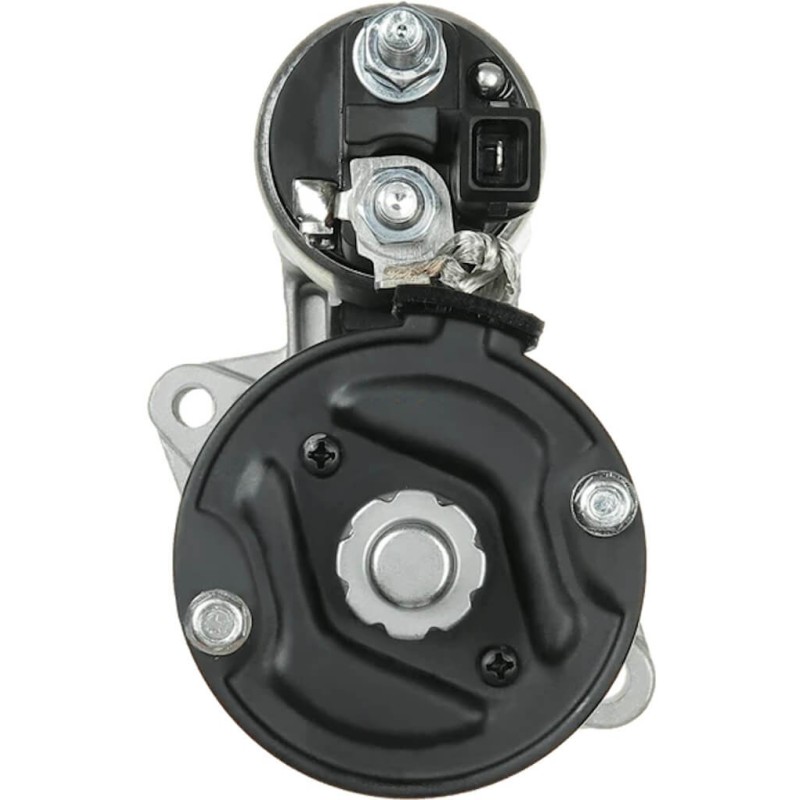

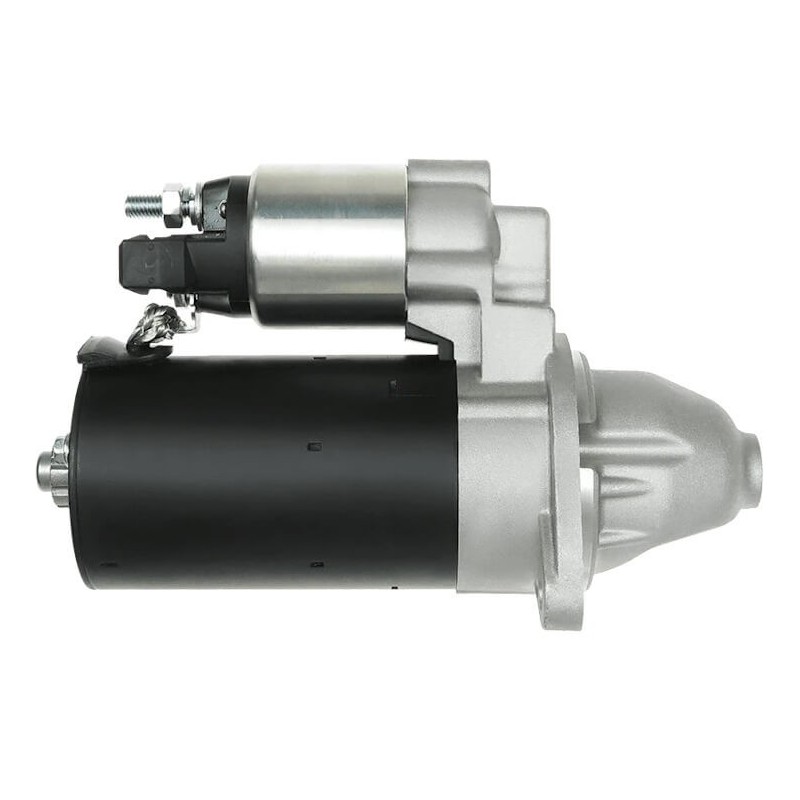

Starter replacing 0001138049 / 0001138050 / 0001138057 / 0001138058 for BMW
Starter replacing 0001138049 / 0001138050 / 0001138057 / 0001138058 / 12417626546 / 12417631054 / 124176381940986023940 / DRS0686 / DRS0797
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical information | ||
|---|---|---|
| Voltage | 12 | |
| Kw | 1.7 | |
Physical information | ||
|---|---|---|
| H | No./teeth | 9 |
| P | Rotation | CW |
| N | Gear type | GR |
| A | Mount. flange | 76.20 |
| I | B+ | M8 |
| No./mount. holes | 2 (1) | |
| B | Drive dist. | 26.00 |
| E | Mount. holes | M10 |
| E | Mount. hole 2 | 11.00 |
| F | Dist./back | 154.00 |
| G | Dist./front | 61.00 |
| M | Mount. bracket | No |
| O | Dist. mm | 105.00 |
generic brand
replacing
| 0001138001 | BOSCH | AEY2325 | AUTOELECTRO |
| 0001138002 | BOSCH | BOS0001138057 | WOODAUTO |
| 0001138043 | BOSCH | CS1419 | HC PARTS |
| 0001138044 | BOSCH | DRS0686 | DELCO |
| 0001138049 | BOSCH | LRS02325 | LUCAS |
| 0001138050 | BOSCH | LRS2325 | LUCAS |
| 0001138054 | BOSCH | RNL2201 | RNL |
| 0001138057 | BOSCH | RNL2394 | RNL |
| 0001138058 | BOSCH | STR50634 | WOODAUTO |
| 0001138059 | BOSCH | STRE261 | 3EFFE |
| 0001138060 | BOSCH | STRF143 | 3EFFE |
| 0986023940 | BOSCH | UD01737S | AS-PL |
| 101419 | KUHNER | UD12074S | AS-PL |
| 101419B | KUHNER | S12BH0609 | SIDAT |
| 115398 | CARGO | S12BH0609A2 | SIDAT |
| 115562 | CARGO | CST10407AS | CASCO |
| 12417550975 | BMW | 20401704BN | REAL |
| 12417589350 | BMW | 6010407.0 | SANDO |
| 12417610342 | BMW | CST10407GS | CASCO |
| 12417610349 | BMW | 20401704OE | REAL |
| 12417626546 | BMW | 6010407.1 | SANDO |
| 12417626547 | BMW | S0478 | AS-PL |
| 12417631054 | BMW | STR1828 | ELECTROLOG |
| 12417638194 | BMW | STR1915 | ELECTROLOG |
| 12417638195 | BMW | STR1975 | ELECTROLOG |
| 12417638196 | BMW | 12417562498 | BMW |
| 12417638197 | BMW | 12417589351 | BMW |
| 25-3497 | ELSTOCK | 12417589352 | BMW |
| 254782 | KUHNER | 12417589353 | BMW |
| 255212B | KUHNER | ||
| 3188 | CEVAM | ||
| 33329N | WAI / TRANSPO | ||
| 7610342 | BMW | ||
| 7638194 | BMW | ||
| 88213113 | POWERMAX |
Used on :
| BMW | 1 Serie | 125 i | 08/11 | / |
| BMW | 3 Serie | 320 i | 02/12 | / |
| BMW | 5 Serie | 428 i | 10/13 | / |
| BMW | 6 Serie | 640 i | 03/11 | / |
| BMW | X1 | 20 i | 09/11 | / |
| BMW | X3 | 20 i | 09/11 | / |
| BMW | Z4 | 20 i | 09/11 | / |
