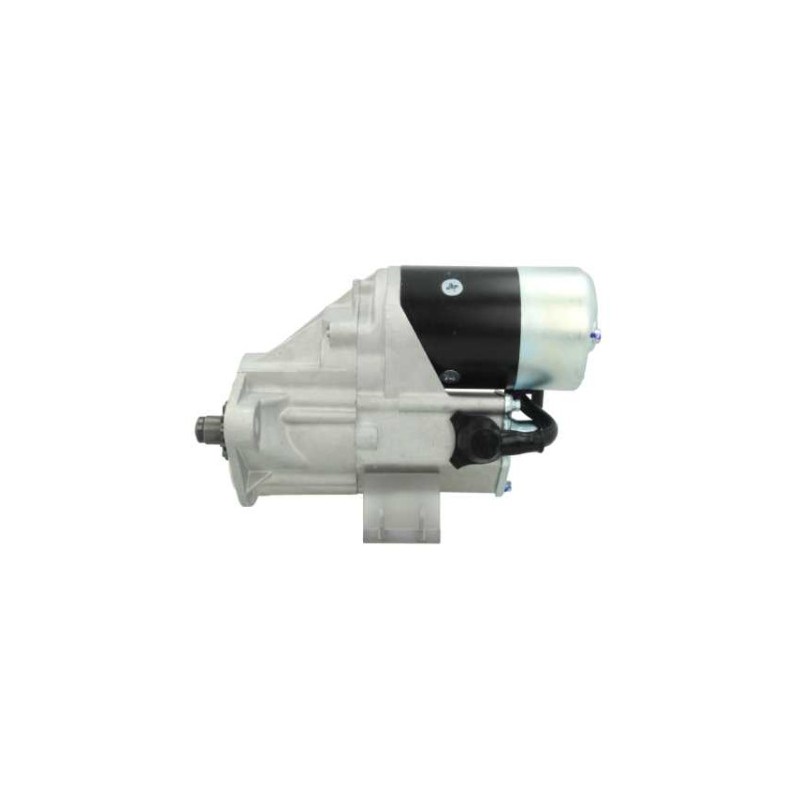

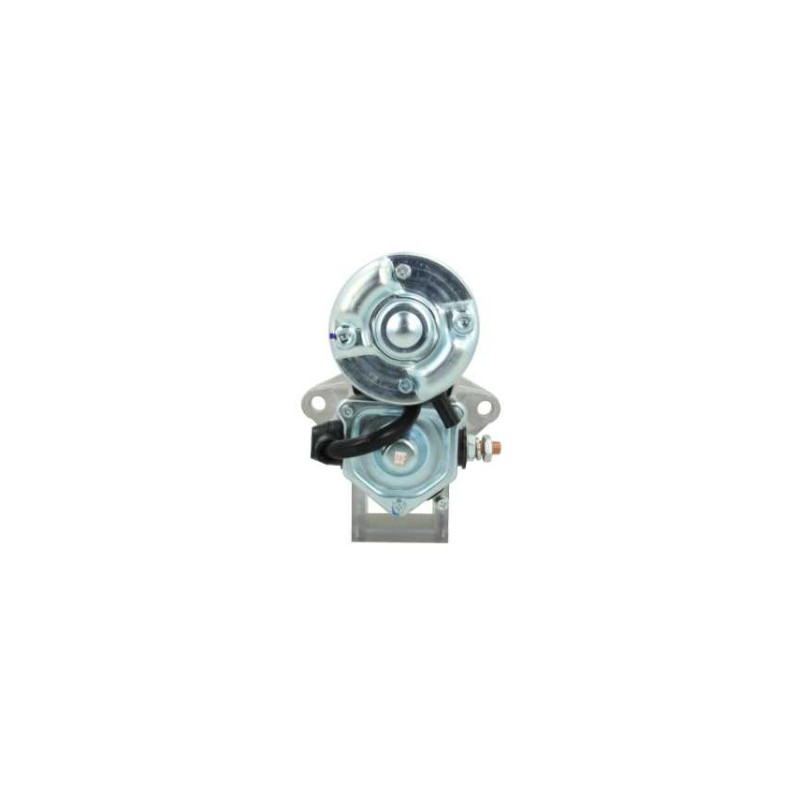

Starter replacing 128000-8620 / 128000-8621 / 228000-1600 / 228000-1601 / 28100-17030 / 28100-17020
Starter replacing:
DENSO 128000-8620 / 128000-8621 / 228000-1600 / 228000-1601
TOYOTA 28100-17030 / 28100-17020
0986019171 / 458587 / DRS3304 / J5212076 / KTR383010244 / LRS01893
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 24 | |
| KW | 4.5 | |
Physical Information | ||
|---|---|---|
| A | Mount flange | 91.00 |
| E | Mounting holes | 13.00 |
| E | Mounting holes 2 | 13.00 |
| B | Drive distance | 16.00 |
| F | Distance / Back | 197.00 |
| G | Distance / Front | 38.50 |
| H | Nbr of teeth | 12 |
| I | B+ | M10 |
| N | Gear type | Gr |
| O | Distance mm | 142.50 |
| P | Rotation | CW |
| R | Total length mm | 292.00 |
Replacing | |
|---|---|
| 128000-8620 | DENSO |
| 128000-8621 | DENSO |
| 228000-1600 | DENSO |
| 228000-1601 | DENSO |
| 28100-17020 | TOYOTA |
| 28100-17030 | TOYOTA |
generic brand
Mounted on :
TOYOTA
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Land Cruiser | Land Cruiser | 4.2 | Diesel | 1990 01 | 1997 12 | 1HD-T | TD | 123 | 167 | 4164 | 6 | HJD80 | |||
| Land Cruiser | Land Cruiser | 4.2 | Diesel | 1992 10 | 1997 12 | 1HD-T | TD | 118 | 160 | 4164 | 6 | HJD80 | |||
| Land Cruiser | Land Cruiser | 4.2 | Diesel | 1990 01 | 1996 05 | 1H-Z | Diesel | 123 | 167 | Hard top | 4164 | 6 | _J7_ | ||
| Land Cruiser | Land Cruiser | 4.2 | Diesel | 1990 01 | 1997 12 | 1H-Z | Diesel | 99 | 135 | 4164 | 6 | HZJ80_ | |||
| Land Cruiser | Land Cruiser | 4.2 | Diesel | 1995 03 | 1997 12 | 1HD-FT | TD | 125 | 170 | 4164 | 6 | HDJ80 | |||
| Land Cruiser | Land Cruiser | 4.2 | Diesel | 1990 01 | - | 1H-Z | TD | 96 | 131 | 4164 | 6 | HZJ7_V |
generic brand
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
