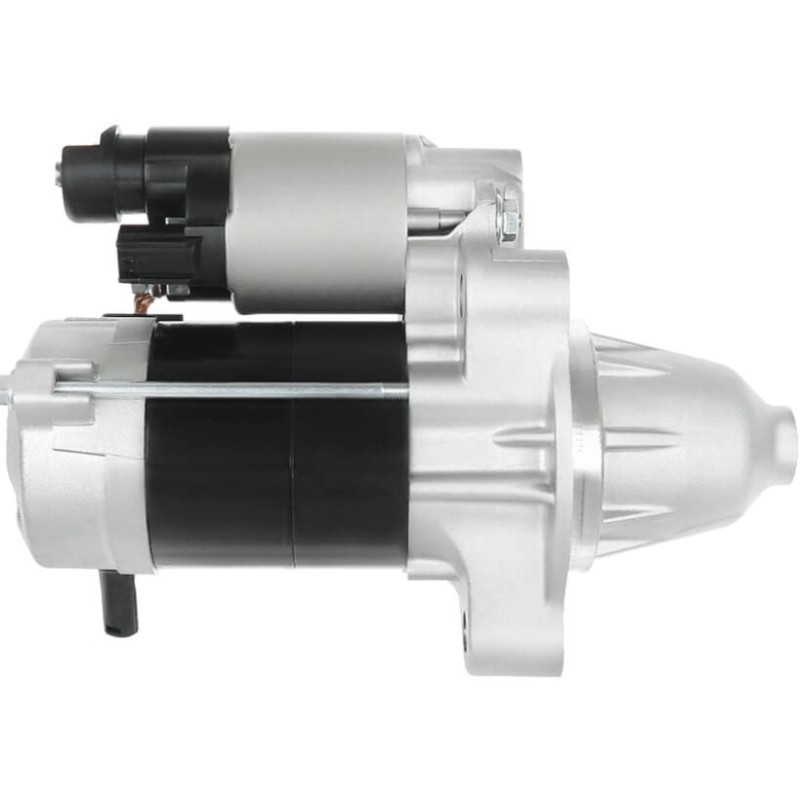

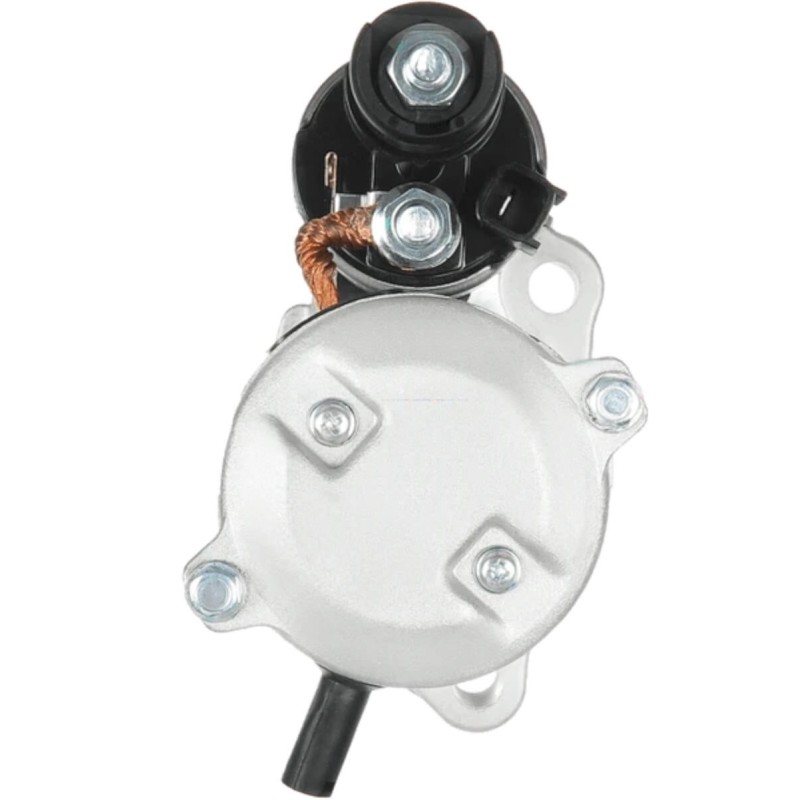

Starter replacing DENSO 428000-5410
0986027060 / 0986UR1529 / 428000-3390 / 428000-4090
HONDA DSKEW / 31200-RB1-013 / 31200/RB1-003
DRS0673 / DSN1385 / LRS02768
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 1 | |

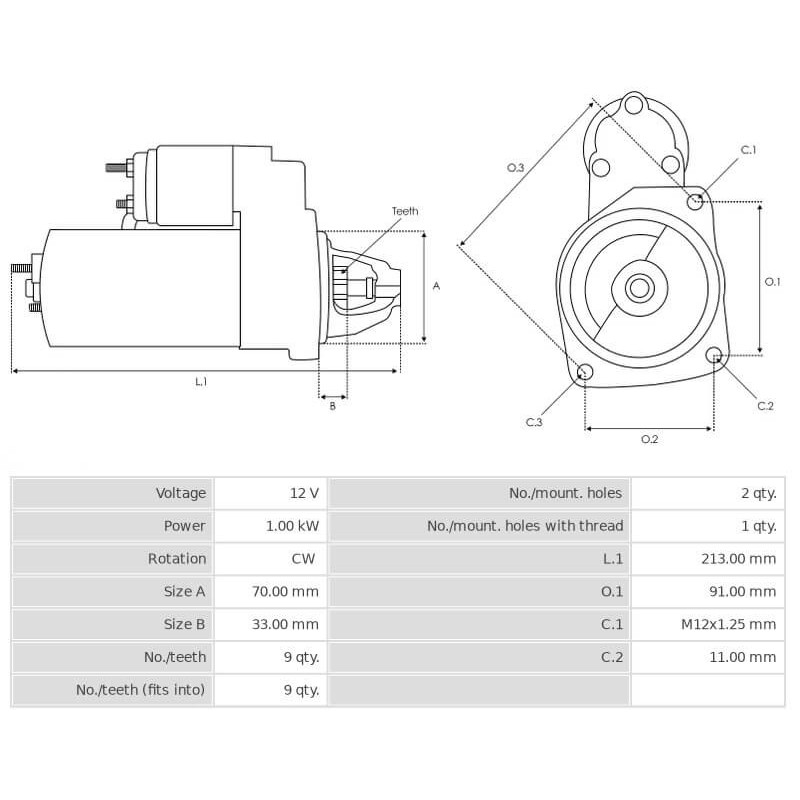

Physical Information | ||
|---|---|---|
| A | Mount flange | 70.00 |
| E | Mounting holes | M12x1.25 |
| E | Mounting holes 2 | 11.00 |
| B | Drive distance | 33.00 |
| F | Distance / Back | 147.00 |
| G | Distance / Front | 66.50 |
| H | Nbr of teeth | 9 |
| I | B+ | M8 |
| N | Gear type | Gr |
| O | Distance mm | 91.30 |
| P | Rotation | CW |
generic brand
replacing
|
040735 |
Da Silva |
|---|---|
|
0986027060 |
Bosch Exchange |
|
0986UR1529 |
Bosch Exchange |
|
10438214 |
Alanko |
|
11040865 |
EuroTec |
|
116256 |
Cargo |
|
120577092 |
PSH |
|
12468 |
EAI |
|
17998 |
Lester |
|
17998N |
WAI |
|
19013 |
Lester |
|
19013N |
WAI |
|
1906146 |
PIC |
|
1906246 |
PIC |
|
1986S00593 |
Bosch |
|
20130111 |
AES |
|
220998 |
Messmer |
|
23140ND |
WAI old |
|
254441 |
Elstock |
|
255315 |
DAS |
|
31200PWA901 |
Honda |
|
31200R3RE01 |
Honda |
|
31200RB1003 |
Honda |
|
31200RB1013 |
Honda |
|
322071092 |
DRI |
|
3359 |
CEVAM |
|
4280003390 |
Denso |
|
4280004090 |
Denso |
|
4280005410 |
Denso |
|
4280005410SEL |
+line |
|
4280805410 |
Denso |
|
438214 |
Alanko |
|
6040417 |
Sando |
|
88214662 |
PowerMax |
|
8EA011612321 |
Hella |
|
910673 |
EDR |
|
AEY2768 |
Auto Electro |
|
AS2005 |
Auto Charge |
|
AS2005AC |
Auto Charge |
|
CGB54441 |
Ainde |
|
CST40417 |
Casco |
|
CST40417AS |
Casco |
|
DENDSN1385 |
Wood Auto |
|
DRS0673 |
Remy |
|
DSKEF |
Honda |
|
DSKEW |
Honda |
|
DSN1385 |
Denso |
|
F042200500 |
Bosch |
|
IR1021 |
Protech |
|
J5214060 |
Herth Buss |
|
LRS02768 |
Lucas |
|
LRS2768 |
Lucas |
|
RNL4280004090 |
RNL |
|
RNL4280005410 |
RNL |
|
RNL4280005410NB |
RNL |
|
S1201D |
Prestolite |
|
S129630 |
Short code |
|
S144020 |
Short code |
|
S163476 |
Short code |
|
S6215 |
AS-PL |
|
S6215S |
AS-PL |
|
SDE1356 |
Everkraft |
|
SND1194 |
Quasar |
|
SR1342X |
Bosch (USA) |
|
ST01918 |
TMI |
|
STM1356 |
Rolling Components |
|
STR70418 |
Wood Auto |
|
WOOSTR70418 |
Wood Auto |
Mounted on :
HONDA
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Jazz | Jazz | 1.4 | Unleaded | 2008 07 | - | L13Z1 | 73 | 100 | Hayon | 1339 | 4 | GE/GG | |||||
| Jazz | Jazz | 1.5 | Bi-Fuel | 2008 07 | - | L15A3 | 88 | 120 | Hayon | Flexfuel | 1497 | 4 | GE | ||||
| Jazz | Jazz Shuttle | 1.5 | Unleaded | 2011 03 | 2014 03 | L15A | 88 | 120 | Break | 1497 | 4 | GG8, GG7, GP2 | |||||
| Jazz | Jazz | 1.2 | Unleaded | 2008 07 | - | L12B1 | 66 | 90 | Hayon | 1198 | 4 | GE/GG |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
