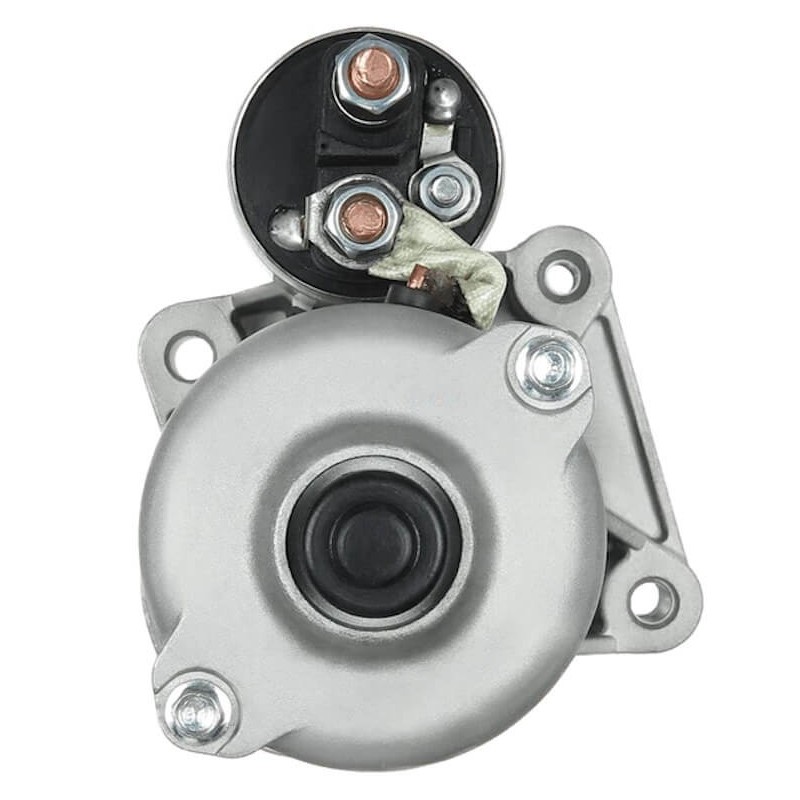

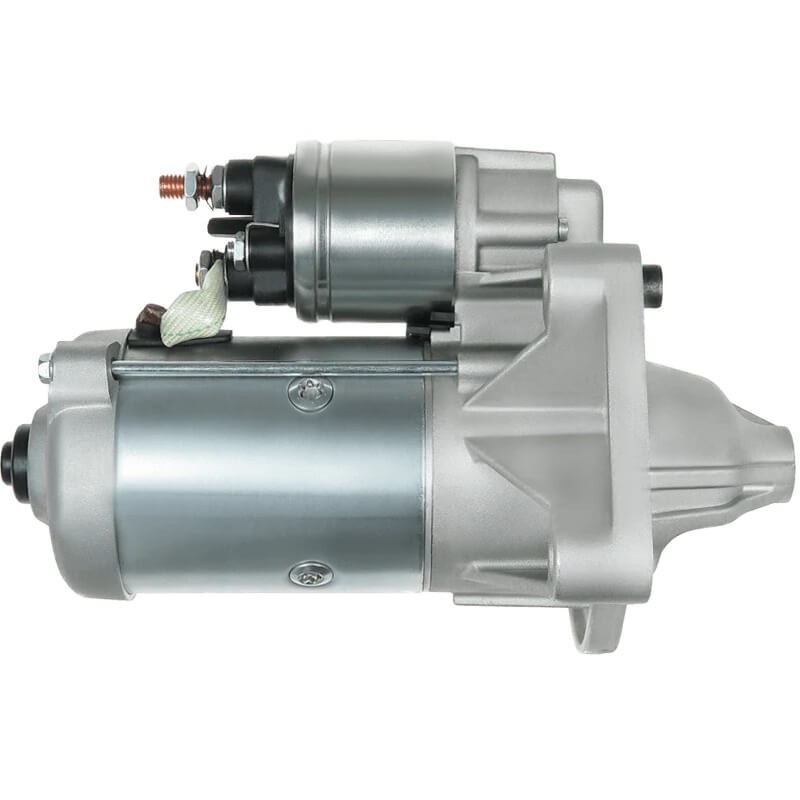

Starter replacing FORD AV6N11000GA / AV6N11000GB / AV6N11000GC / AV6N11000GD / AV6N11000GE
Starter replacing VALEO ESW20E11 / ESW2022 / FORD 1715211 / 1778016 / 1898356 / 20233247
| 1715211 | Ford | |
| 1778016 | Ford | |
| 1893556 | Ford | |
| 1898356 | Ford | |
| 1986S00982 | Bosch | |
| 2033247 | Ford | |
| 214745 | Valeo | |
| 2269109 | Ford | |
| 254377 | Elstock | |
| 31324544 | Ford | |
| 438299 | Valeo | |
| 458706 | Valeo |
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 2.0 | |

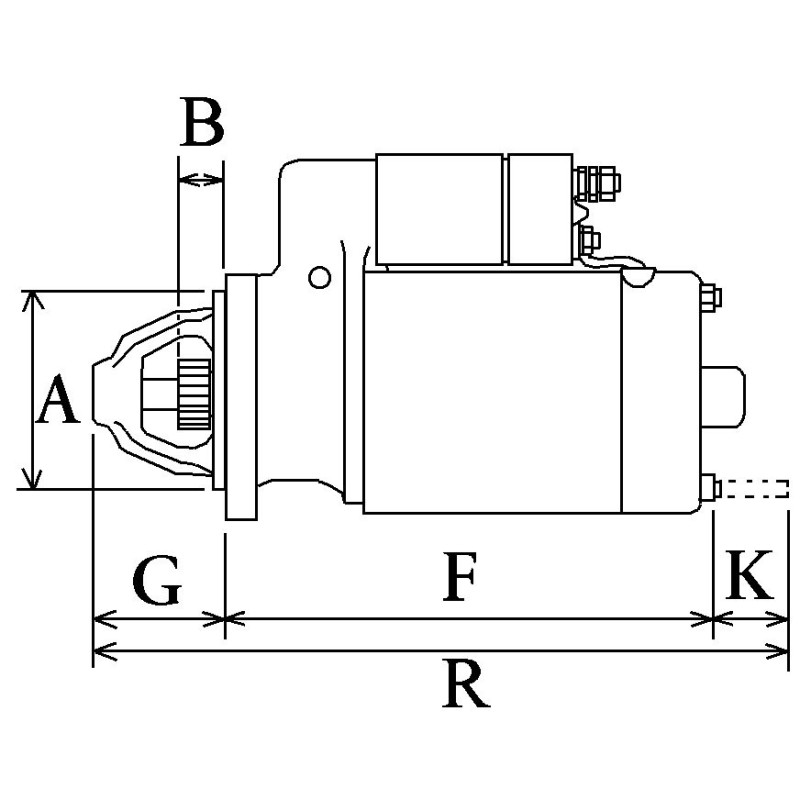

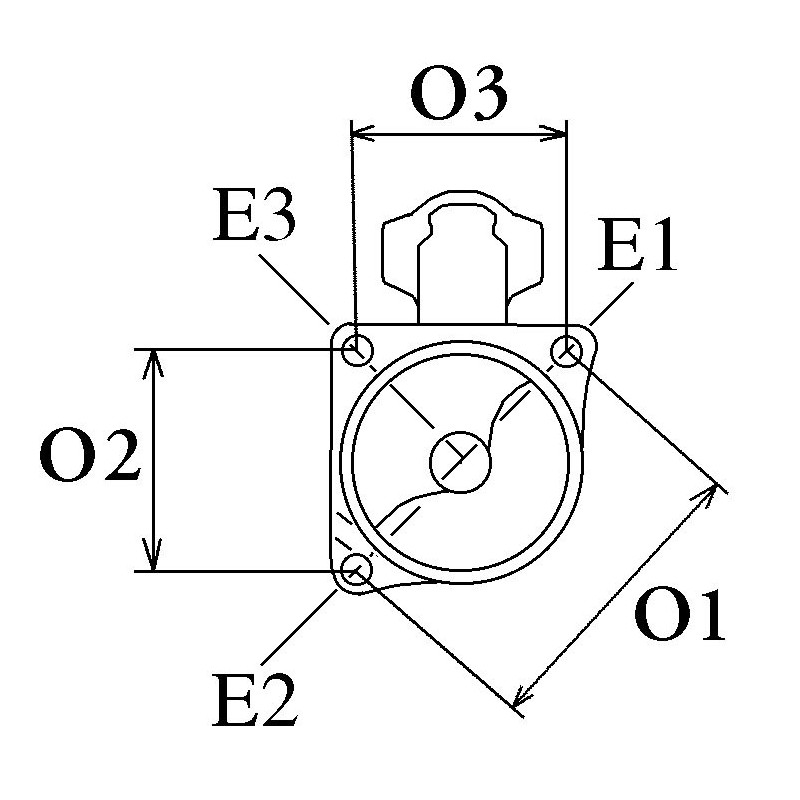

Physical Information | ||
|---|---|---|
| E | Mounting holes | 9.00 |
| E | Mounting holes 2 | M10x1.5 |
| E | Mounting holes 3 | M8x1.25 |
| B | Drive distance | 14.00 |
| F | Distance / Back | 166.50 |
| G | Distance / Front | 52.50 |
| H | Nbr of teeth | 11 |
| I | B+ | M8 |
| N | Gear type | Gr |
| O | Distance mm | 116.50 |
| O | Distance 2 | 75.00 |
| O | Distance 3 | 84.00 |
| P | Rotation | Cr |
| R | Total length mm | 235.00 |
generic brand
replacing
| 11090318 | EUROTEC |
| 115684 | CARGO |
| 116316 | CARGO |
| 12281 | EAI |
| 1778016 | FORD |
| 1893556 | FORD |
| 2033247 | FORD |
| 20479272OE | REAL |
| 25-4377 | ELSTOCK |
| 254845 | KUHNER |
| 254845V | KUHNER |
| 31324544 | FORD |
| 3219 | CEVAM |
| 438299 | VALEO |
| 458706 | VALEO |
| 6015272.1 | SANDO |
| 88214620 | POWERMAX |
| 8EA011611-591 | HELLA |
| AV6N-11000-GA | FORD |
| AV6N-11000-GB | FORD |
| AV6N-11000-GC | FORD |
| AV6N-11000-GD | FORD |
| AV6N-11000-GE | FORD |
| CST15272GS | CASCO |
| DRS0751 | DELCO |
| DS1861 | DELCO |
| EAA-123083 | EAA |
| ESW2022 | VALEO |
| ESW20E11 | VALEO |
| LRS02705 | LUCAS |
| LRS2705 | LUCAS |
| RNLESW20E11 | RNL |
| STM1326 | ROLLCO |
| STRF604 | 3EFFE |
| UD16959S | AS-PL |
| VAL438299 | WOODAUTO |
| 220715 | ERA |
| STR00176 | ELECTROLOG |
| S12VA0285A2 | SIDAT |
| S3193S | AS-PL |
| PRSF604 | 3EFFE |
| CGB-54377 | AINDE |
| 590.576.113.500 | PSH |
| 590.576.113.000 | PSH |
| 590.576.113.505 | PSH |
| 590.576.113.008 | PSH |
| 590.576.113.501 | PSH |
| 438303 | VALEO |
| 30368N | WAI / TRANSPO |
Fits :
| Brand | Model | Typ | Year | Remarks |
| FORD | Grand C-Max 1.6 TDCi | [T1DA] | 01/12/10 | ST |
| FORD | Grand C-Max 1.6 TDCi | [T1DB] | 01/12/10 | ST |
| FORD | Grand C-Max 1.6 TDCi | [T3DA] | 01/12/10 | ST |
| FORD | Grand C-Max 1.6 TDCi | [T3DB] | 01/12/10 | ST |
| FORD | Tourneo Connect 1.5 TDCi | [XUGA] | 01/05/15 | ST |
| FORD | Tourneo Connect 1.5 TDCi | [XVGA] | 01/05/15 | ST |
| FORD | Tourneo Connect 1.5 TDCi | [XVGB] | 01/05/15 | ST |
| FORD | Galaxy 1.6 TDCi | [T1WA] | 01/02/11 | ST |
| FORD | Tourneo Connect 1.5 TDCi | [XVGC] | 01/05/15 | ST |
| FORD | C-Max 1.5 TDCi | [XWDA] | 01/03/15 | ST |
| FORD | Galaxy 1.6 TDCi | [T1WB] | 01/02/11 | ST |
| FORD | Mondeo 1.5 TDCi | [UGCC] | 01/03/15 | ST |
| FORD | Tourneo Connect 1.5 TDCi | [XWGA] | 01/05/15 | ST |
| FORD | C-Max 1.5 TDCi | [XWDB] | 01/03/15 | ST |
| FORD | Mondeo 1.5 TDCi | [XUCA] | 01/03/15 | ST |
| FORD | C-Max 1.5 TDCi | [XXDA] | 01/03/15 | ST |
| FORD | Tourneo Connect 1.5 TDCi | [XWGB] | 01/05/15 | ST |
| FORD | Focus 1.6 TDCi | [T1DA] | 01/04/11 | ST |
| FORD | Focus 1.6 TDCi | [T1DA] | 01/05/11 | ST |
| FORD | Focus 1.6 TDCi | [T1DA] | 01/02/12 | ST |
| FORD | Tourneo Connect 1.6 TDCi | [T1GA] | 01/09/13 | ST |
| FORD | C-Max 1.5 TDCi ECOnetic | [AEDA] | 01/03/15 | ST |
| FORD | Focus 1.6 TDCi | [T1DB] | 01/04/11 | ST |
| FORD | Tourneo Connect 1.6 TDCi | [TZGA] | 01/09/13 | ST |
| FORD | Focus 1.6 TDCi | [T1DB] | 01/05/11 | ST |
| FORD | Tourneo Connect 1.6 TDCi | [TZGB] | 01/09/13 | ST |
| FORD | Focus 1.6 TDCi | [T1DB] | 01/02/12 | ST |
| FORD | Tourneo Connect 1.6 TDCi | [UBGA] | 01/09/13 | ST |
| FORD | Focus 1.6 TDCi | [T3DA] | 01/01/11 | ST |
| FORD | Focus 1.6 TDCi | [T3DA] | 01/04/11 | ST |
| FORD | Focus 1.6 TDCi | [T3DA] | 01/05/11 | ST |
| FORD | Focus 1.6 TDCi | [T3DB] | 01/01/11 | ST |
| FORD | Focus 1.6 TDCi | [T3DB] | 01/04/11 | ST |
| FORD | Focus 1.6 TDCi | [T3DB] | 01/05/11 | ST |
| FORD | Focus 1.5 TDCi | [XWDA] | 01/09/14 | ST |
| FORD | Focus 1.5 TDCi | [XWDA] | 01/11/14 | ST |
| FORD | Focus 1.5 TDCi | [XWDB] | 01/09/14 | ST |
| FORD | Focus 1.6 TDCi ECOnetic | [NGDA] | 01/05/12 | ST |
| FORD | Focus 1.5 TDCi | [XWDB] | 01/11/14 | ST |
| FORD | Focus 1.5 TDCi | [XWDC] | 01/09/14 | ST |
| FORD | Focus 1.5 TDCi | [XWDC] | 01/11/14 | ST |
| FORD | S-Max 1.6 TDCi | [T1WA] | 01/02/11 | ST |
| FORD | S-Max 1.6 TDCi | [T1WB] | 01/02/11 | ST |
| FORD | Focus 1.5 TDCi | [XWDD] | 01/09/14 | ST |
| FORD | Focus 1.5 TDCi | [XWDD] | 01/11/14 | ST |
| FORD | Focus 1.5 TDCi | [XXDA] | 01/09/14 | ST |
| FORD | Focus 1.5 TDCi | [XXDA] | 01/11/14 | ST |
| FORD | Focus 1.5 TDCi | [XXDC] | 01/09/14 | ST |
| FORD | Focus 1.5 TDCi | [XXDC] | 01/11/14 | ST |
| FORD | Transit Connect 1.5 TDCi | [XUGA] | 01/08/15 | ST |
| FORD | Transit Connect 1.5 TDCi | [XVGA] | 01/05/15 | ST |
| FORD | Transit Connect 1.5 TDCi | [XVGB] | 01/05/15 | ST |
| FORD | Transit Connect 1.5 TDCi | [XVGC] | 01/05/15 | ST |
| FORD | Transit Connect 1.5 TDCi | [XWGA] | 01/05/15 | ST |
| FORD | Focus 1.5 TDCi ECOnetic | [XXDB] | 01/09/14 | ST |
| FORD | Transit Connect 1.5 TDCi | [XWGB] | 01/05/15 | ST |
| FORD | Kuga 1.5 TDCi | 01/07/16 | ST | |
| FORD | Focus 1.5 TDCi ECOnetic | [XXDB] | 01/11/14 | ST |
| FORD | C-Max 1.6 TDCi | [T1DA] | 01/12/10 | ST |
| FORD | Transit Connect 1.6 TDCi | [TZGA] | 01/09/13 | ST |
| FORD | C-Max 1.6 TDCi | [T1DB] | 01/12/10 | ST |
| FORD | Transit Connect 1.6 TDCi | [TZGB] | 01/09/13 | ST |
| FORD | C-Max 1.6 TDCi | [T3DA] | 01/12/10 | ST |
| FORD | Mondeo 1.6 TDCi | [T1BA] | 01/02/11 | ST |
| FORD | Transit Connect 1.6 TDCi | [UBGA] | 01/09/13 | ST |
| FORD | C-Max 1.6 TDCi | [T3DB] | 01/12/10 | ST |
| FORD | Grand C-Max 1.5 TDCi | [XWDA] | 01/03/15 | ST |
| FORD | Mondeo 1.6 TDCi | [T1BB] | 01/02/11 | ST |
| FORD | Grand C-Max 1.5 TDCi | [XWDB] | 01/03/15 | ST |
| FORD | Mondeo 1.6 TDCi | [T1BC] | 01/02/11 | ST |
