Alternator replacing DELCO REMY 10480252 / 10480190 / 10480189

Information:

Voltage 14

Amp 105

D = Bracket hole 10.10

G = Belt. adj. bracket hole M8

B = Width/holder arm 51.00

E = Belt. adj. brackethole pos. 50

H = Pulley dia. 56.50

A = Pulley dist. 73.00

Grooves/pulley 6

J = Radius 80.00

J = Radius 76.00

Position B + M8

Rotation Cr

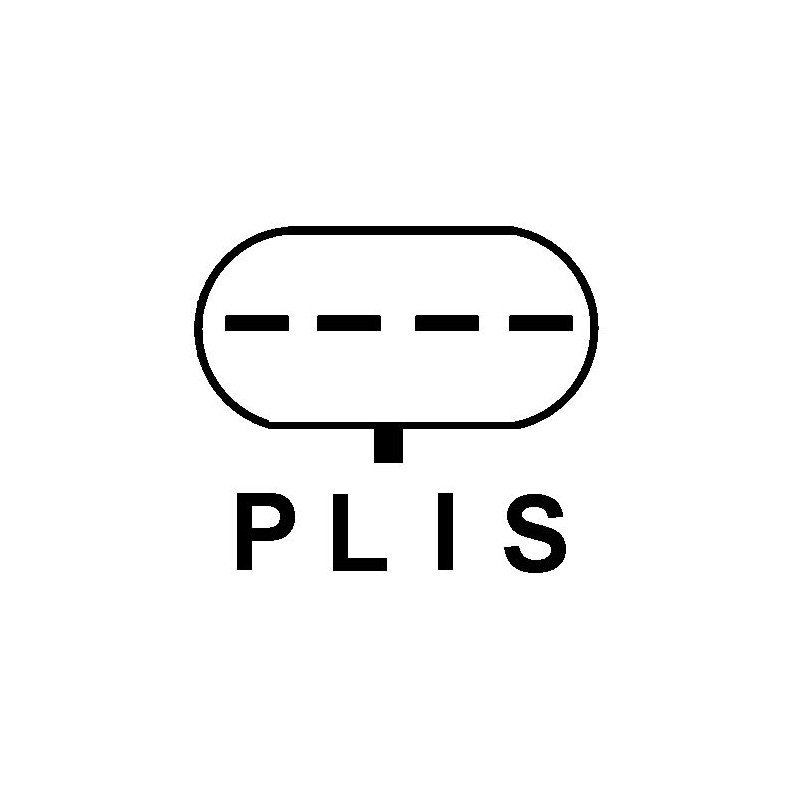

Plug no. 1 PL118

Fan If

Pulley Serpentine Pulley

Remarks Replacing: CS130D.

Total length mm 175.00

= DELCO REMY 10480072 / 10480017 / 10479991

10463443 / 10463408

             NO CORE EXCHANGE NEEDED

                                  TWO YEARS WARRANTY

Retrouvez also toute notre gamme from pièces détachées

régulateur, pont from diode, brush-set, pulley.
