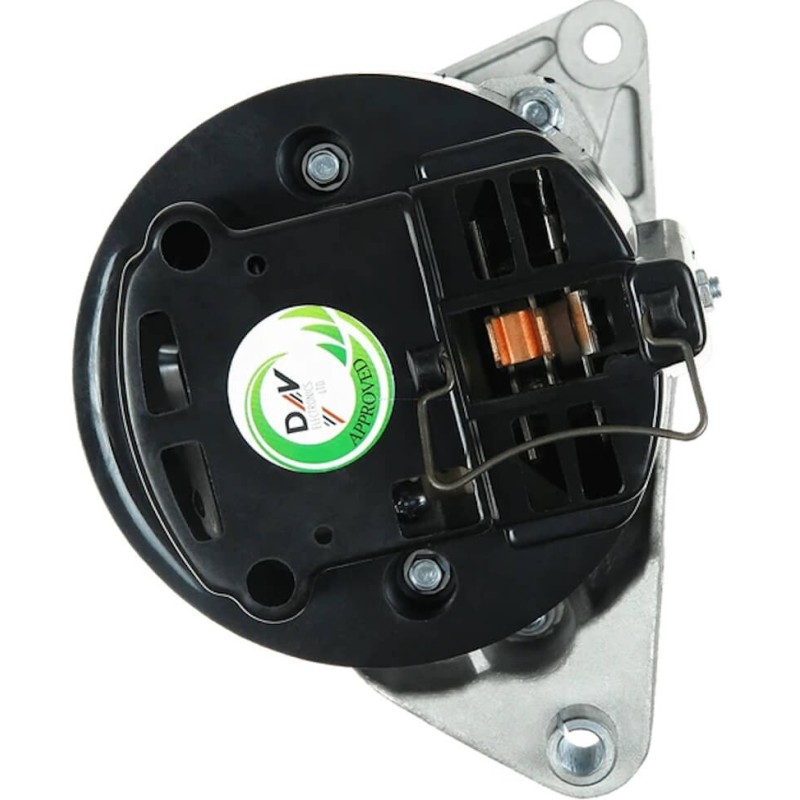

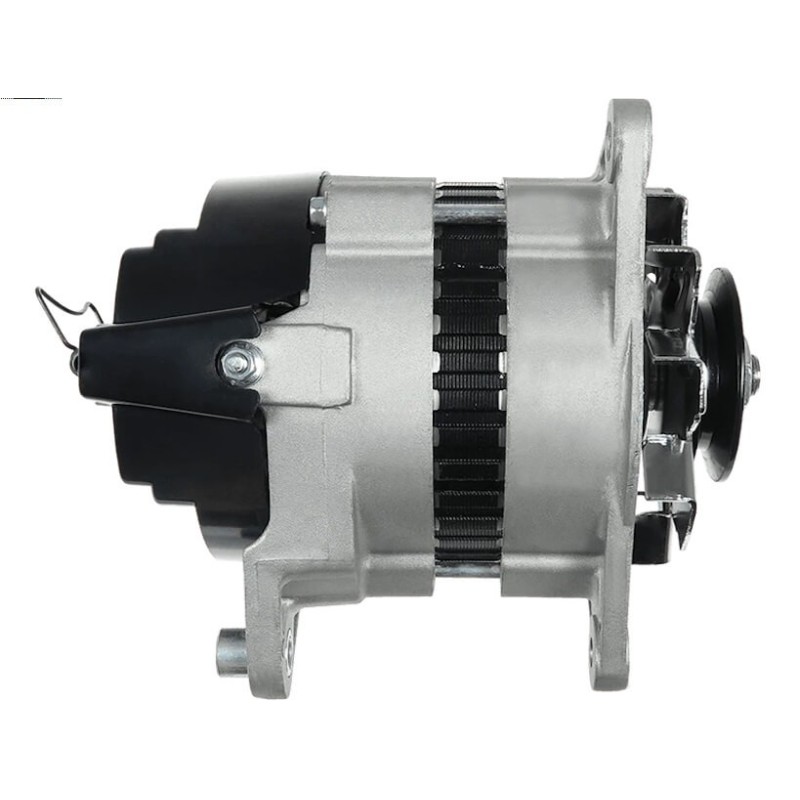

Alternator replacing BOSCH 0120389503 / 0120389502 / 0120339510 / 0120339509

for Austin, Bedford, Case, FORD, Jensen,LAND ROVER, Lotus MASSEY FERGUSON, MG, Morris, NEW HOLLAND, PLYMOUTH, Talbot

Information:

Voltage 14

Amp 36

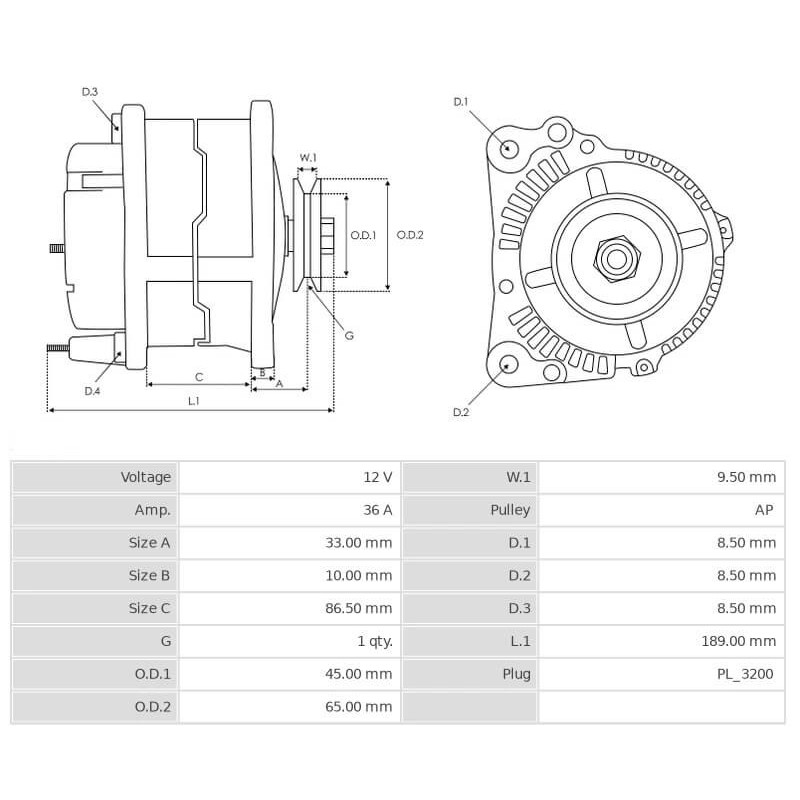

D = Bracket hole M8

G = Belt. adj. bracket hole M8

B = Width/holder arm 10.00

E = Belt. adj. brackethole pos. 50

C = Mount. bracket dist 87.00

J = Radius 82.50

J = Radius 82.00

Position B + 9.40

Rotation Cr

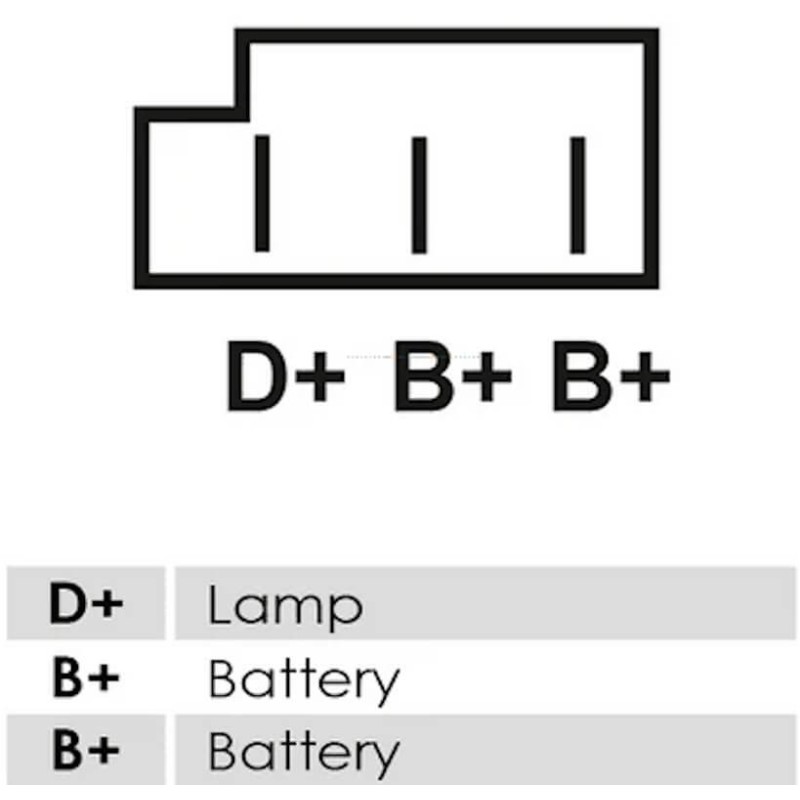

Plug no. 1 PL22

Fan Ef

Pulley Without

R = Total length mm 164.00

= BOSCH 0120389503 / 0120389502 / 0120339510 / 0120339509 / 0120339506

= DUCELLIER 516011

= FEMSA alp12n-2 / alt12n-11 / alt12n-14 / alt12n-39

= FORD 1504563 / 1537179 / 5003897 / 69eb10346ad / 74db10436a / 76BB10300EA / 76bb10300ed / 77fb10300fa / 77fb10300fb

= ISKRA 11.201.067 / 11.201.272 / aag1111 / AAK4116 / IA0067 / IA0676

= LUCAS 16ACR / 23544 / 23548 / 23548a / 23548d / 23548e / 23554 / 23562 / 23565 / 23565a / 23566 / 23566a / 23569 / 23570 / 23570a / 23570b / 23573 / 23575  / 23581 / 23584 / 23590 / 23593 / 23595 / 23597 / 23598 / 23602 / 23603 / 23605 / 23606 / 23610 / 23612 / 23614 / 23620 / 23621 / 23623 / 23625 / 23627 / 23630 / 23634 / 23635 / 23636 / 23637 / 23640 / 23642 / 23643 / 23647 / 23648 / 23649 / 23650 / 23651 / 23658 / 23660 / 23661 / 23662 / 23664 / 23666 / 23668  / 23674 / 23676 / 23678 / 23679 / 23685 / 23694 / 23695 / 23699 / 23700 / 23703 / 23706 / 23708 / 23711 / 23713 / 23714 / 23715 / 23716 / 23717 / 23718 / 23724 / 23726 / 23728 / 23730 / 23731 / 23734 / 23735 / 23741 / 23742 / 23743  / 23745 / 23747 / 23748 / 23750 / 23753 / 23755 / 23761 / 23762 / 23769 / 23772 / 23774 / 23777 / 23778 / 23782 / 23795 / 23796 / 23797 / 23799 / 23802 / 23804  / 23805 /  23813 /  23816 /  23821 / 23823 / 23825 / 23827 / 23831 / 23837 / 23838 / 23840 / 23843 / 23844 / 23845 / 23847 / 23850 / 23851 / 23853 / 23855 / 23874 / 23878 / 23886 / 23889 / 23895 / 23903 / 23904 / 23909 / 23911 / 23914 / 23915 / 23918 / 23919 / 23920 / 23942 / 23944  /  23959 /  23962 / 23973 / 23974 / 23974a / 23989 / 23990 / 24026 / 24051 / 24052 / 24058 / 24058a / 24059a / 24061 / 24061a / 24061b / 24082 / 24094 / 24095 / 24103 / 24140 / 24179 / 54021491 / 54021494 / 54021813 / 54021868 / 54021898 /  54021917 / 54021918 / 54021988 / 54021993 / 54022006 / 54022017 / 54022032 / 54022083 / 54022165 / lra100

= MASSEY FERGUSON 3637261R91

= MOTOROLA 2541194 / 510-104 / 510-105 / 9ar2915f / 9AR2916 / 9ar2916f

= PERKINS 2871611 / 2871613 / 2871615 / 2871619 / 2871a103 / 2871a105 / 2871a107 / 2871a116 / 2871a118 / 2871a132 / 2871a134 / 2871a136 / 2873179

= RENAULT 6005003145 / 6005007750 / 6005700083 / 7700010614 / 7700017032 / 7701028801

= VALEO 2523234 / 29409930

USED ON :

1100 / 1300 / ALLEGRO / MARINA

BEDFORD
TJ

FORD
CAPRI 1.3 / CORTINA 1.3 - 1.6 / ESCORT 1.1 / TRANSIT 1.7

JENSEN
HEALEY

LAND ROVER
88/109 / LR 2.3

LOTUS
ECLAT / ELAN / ESPRIT / EUROPA

MG
MGB / MIDGET / MGC

MORRIS
ITAL / MARINA

PLYMOUTH
CRICKET

ROVER
MINI

TALBOT
SUNBEAM

TRIUMPH
SPITFIRE / TR250

VAUXHALL
CHEVETTE / FIRENZA / VIVA

                                             TWO YEARS WARRANTY

                         NO CORE EXCHANGE NEEDED
