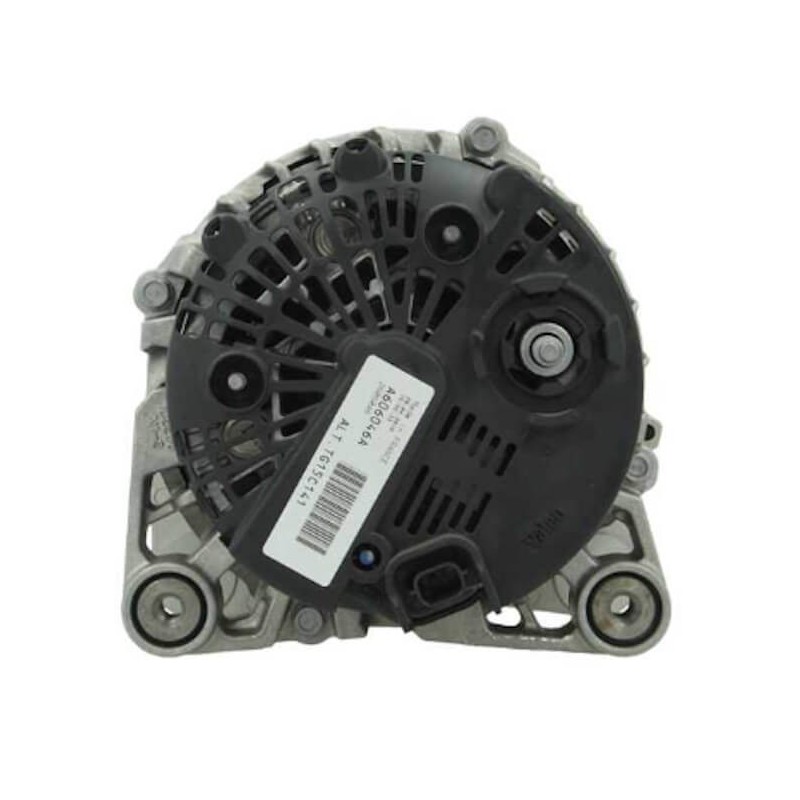

Alternator VALEO TG15C141 for RENAULT Laguna
| 2543593 | Valeo | |
| 2543593A | Valeo | |
| 2606046 | Valeo | |
| 2606046A | Valeo | |
| 286594 | Elstock | |
| 439628 | Valeo | |
| 440188 | Valeo | |
| 575912150 | PSH | |
| 606046 | Valeo | |
| 7711497186 | Renault | |
| 8200724133 | Renault | |
| 8200747041 | Renault | |
| 8200846074 | Renault |
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 150 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.50 |
| G | Belt. adj. bracket hole | 8.50 |
| B | Width/holder arm | 14.00 |
| E | Belt. adj. brackethole pos. | 15 |
| C | Mount. bracket dist | 61.00 |
| H | Pulley dia. | 61.00 |
| A | Pulley dist. | 33.00 |
| i | Grooves/pulley | 7 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | CW |
| o | Plug no. 1 | PL131 |
| R | Total length mm | 181.00 |
Replacing | ||
|---|---|---|
| 8200846074 | RENAULT | |
| TG15C124 | VALEO | |
| 2543593 |
| 2543593A |
| 439628 |
| 440188 |
| 575912150 |
| 606046 |
| 8200724133 |
| 8200846074 |
| 9090773F |
| 931027 |
| DRA1027 |
| LRA03484 |
| TG15C124 |
| TG15C141 |
fits:
| Laguna | 2.0 | Unleaded | 2007 10 | - | F4R811 | 16V Turbo | 125 | 170 | Break | 1998 | 4 | KT0/1 | |
| Laguna | 2.0 | Unleaded | 2007 10 | - | F4R811 | 16V Turbo | 125 | 170 | Hayon | 1998 | 4 | BT0/1 | |
| Laguna | 2.0 | Unleaded | 2008 03 | - | F4R800 | 150 | 204 | Coupé | GT | 1998 | 4 | ||
| Laguna | 2.0 | Unleaded | 2008 03 | - | F4R800 | 150 | 204 | Hayon | GT | 1998 | 4 | BT0/1 | |
| Laguna | 2.0 | Unleaded | 2008 03 | - | F4R800 | 150 | 204 | Break | 1998 | 4 | KT0/1 | ||
| Laguna | 2.0 | Unleaded | 2008 09 | - | F4R811 | 16V Turbo | 125 | 170 | Coupé | 1998 | 4 | DTO/1 | |
| Laguna | 2.0 | Unleaded | 2008 09 | - | F4Rt811 | 16V Turbo | 125 | 170 | Coupé | 1998 | 4 | DTO/1 |
