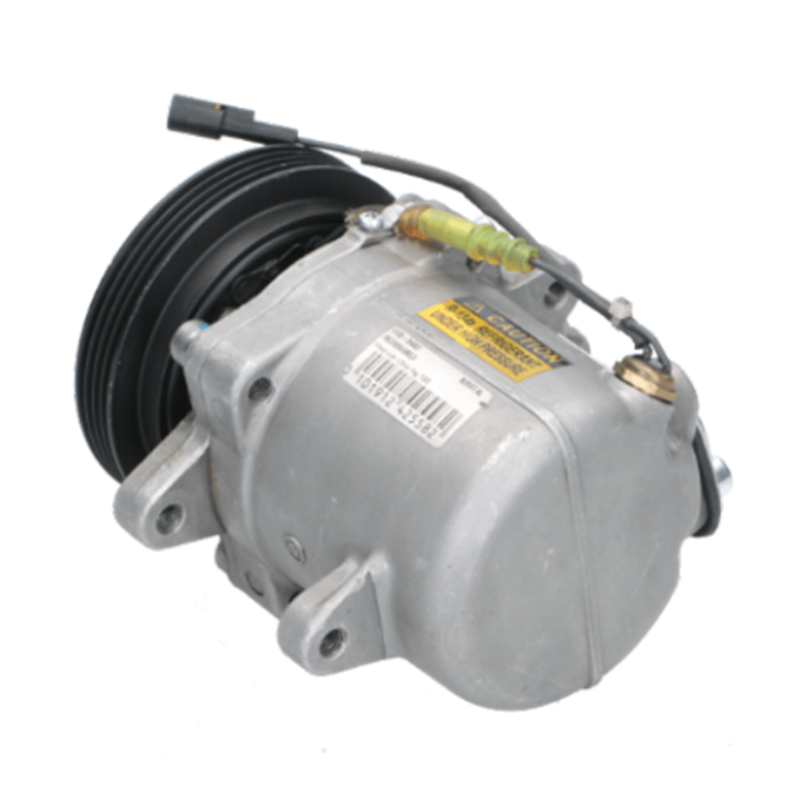

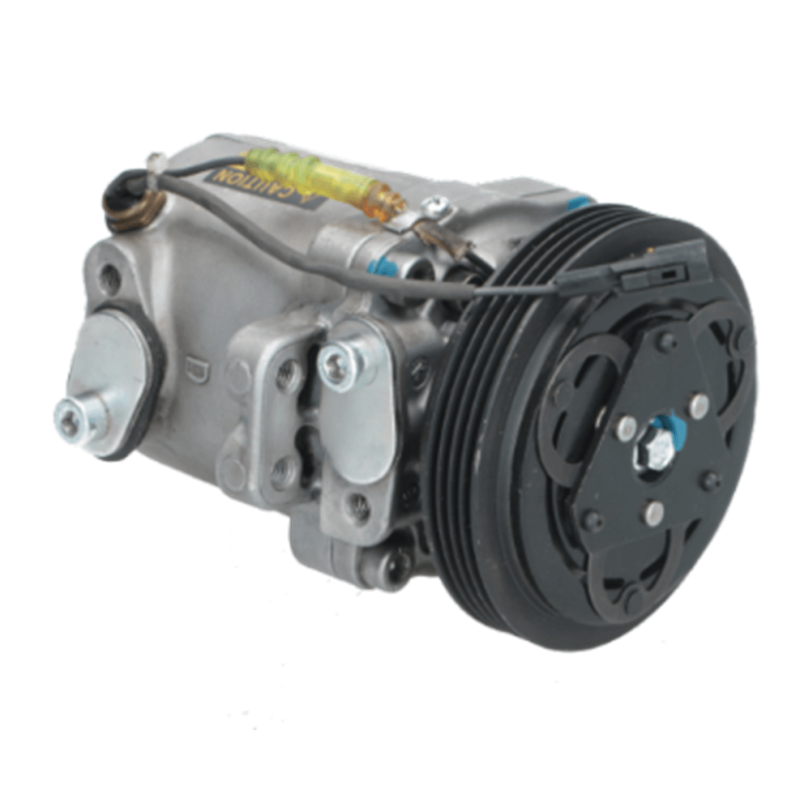

AC compressor replacing DCP47007 / 9520070CA1 for cars SUZUKI Baleno / Grand Vitara / Jimny / Swift
AC compressor replacing DCP47007 / 9520070CA1 for cars SUZUKI Baleno / Grand Vitara / Jimny / Swift
Previous
Next
AC compressor replacing DCP47007 / 9520070CA1 for cars SUZUKI Baleno / Grand Vitara / Jimny / Swift
AC compressor replacing DCP47007 / 9520070CA1 for cars SUZUKI Baleno / Grand Vitara / Jimny / Swift

AC compressor replacing DCP47007 / 9520070CA1 for cars SUZUKI Baleno / Grand Vitara / Jimny / Swift

w090185017200
Air Conditioning Compressor for cars SUZUKI Baleno / SUZUKI Baleno Estate/Wagon / SUZUKI Grand Vitara / SUZUKI Jimny / SUZUKI Swift

To find the correct replacement part, it is important to compare your part number with those listed in the product description.
Replacing:

9520070CJ0

Suzuki

9520070CJ0000

Suzuki

9520077GA0

Suzuki

9520077GA1

Suzuki

Garage documents regarding flushing and replacement of condenser, filter and dryer.

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.

Read more
€149.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Reference

090185017

PSH

9520070CA0

Suzuki

9520070CA1

Suzuki

9520070CA2

Suzuki

9520070CD0

Suzuki

9520070CD00

Suzuki

9520070CD0000

Suzuki

9520070CH0

Suzuki

9520070CJ0

Suzuki

9520070CJ0000

Suzuki

9520077GA0

Suzuki

9520077GA1

Suzuki

ACC11802

WAI

ACP461

Lucas

CMP3616

Wood Auto

DCP47007

Denso

W02I026338

Suzuki

W02I056601

Suzuki

WOOCMP3616

Wood Auto

Features

Brand +Line

Pulley information
Pulley Grooves 4
Pulley OD mm 110
Unit information
Voltage 12
Family type SS10M1

Remarks

IMPORTANT! Oil Filling.
1. Drain the oil from the compressor and measure the amount of oil.
2. Fill with the additional oil quantity and oil type ad required from the vehicle manufacturer. Please be careful not to combine the different kind of oil types.

Misc. information
Oil type PAG 100
Oil capacity 150ml
Refrigerant R134a

It is important to replace the filter drier, condenser and expansion valve and flush the circuit when fitting the new air conditioning compressor.

Compressor replacement must be done by following the information issued by the vehicle manufacturer and performed by a professional.

Catalogue information
Remarks IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.



Garage documents regarding flushing and replacement of condenser, filter and dryer,

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.

NO WARRANTY CAN BE CLAIMED IF THE FILTER/DRYER

IS NOT CHANGED WHEN INSTALLING THE NEW COMPRESSOR



Mounting on

SUZUKI Baleno

02-1995 - 04-2002

SUZUKI Baleno

03-1995 - 04-2002

SUZUKI Baleno

06-1995 - 04-2002

SUZUKI Baleno

02-1995 - 04-2002

SUZUKI Baleno

03-1995 - 04-2002

SUZUKI Baleno

06-1995 - 04-2002

SUZUKI Baleno

10-1995 - 09-1998

SUZUKI Baleno

10-1995 - 09-1998

SUZUKI Baleno

10-1995 - 09-1998

SUZUKI Baleno Estate/Wagon

07-1996 - 04-2002

SUZUKI Baleno Estate/Wagon

07-1996 - 04-2002

SUZUKI Baleno Estate/Wagon

05-1997 - 04-2002

SUZUKI Baleno Estate/Wagon

07-1996 - 04-2002

SUZUKI Baleno Estate/Wagon

07-1996 - 04-2002

SUZUKI Grand Vitara

03-1998 - 11-2001

SUZUKI Grand Vitara

03-2001 - 11-2005

SUZUKI Jimny

07-1998 - 03-2001

SUZUKI Jimny

09-1998 - 09-2008

SUZUKI Jimny

08-1998 - 03-2001

SUZUKI Swift

07-1992 - 11-2003

SUZUKI Swift

02-1989 - 04-2001

Fiche technique
