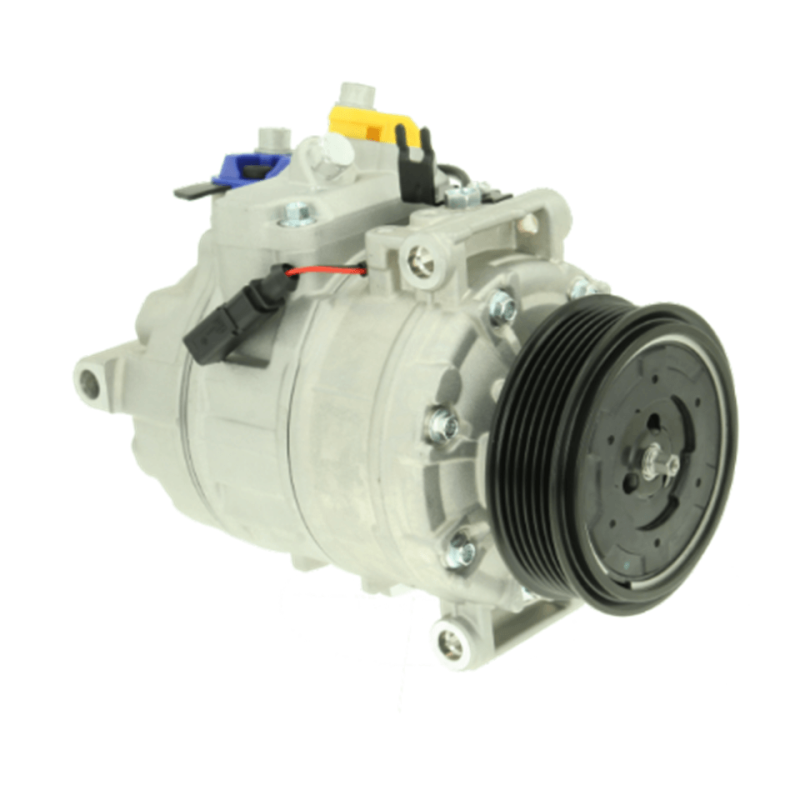

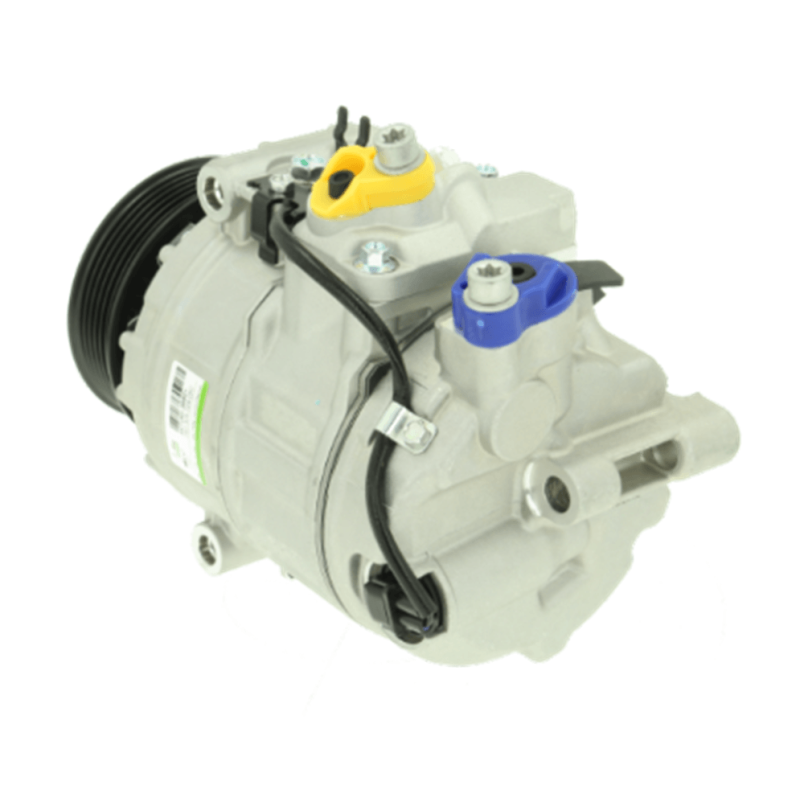

AC compressor replacing 4471503660 / DCP32021 for cars VOLKSWAGEN Phaeton

AC compressor replacing 4471503660 / DCP32021 for cars VOLKSWAGEN Phaeton

Name: AC compressor replacing 4471503660 / DCP32021 for cars VOLKSWAGEN Phaeton
SKU: w090305024050
Price: 199.9 EUR
Availability: InStock

Reference : w090305024050

Air Conditioning Compressor for cars VOLKSWAGEN Phaeton

To find the correct replacement part, it is important to compare your part number with those listed in the product description.

Replacing:

4471902110	Denso
4471904690	Denso
4471907560	Denso
4471908950	Denso
4472600340	Denso

Garage documents regarding flushing and replacement of condenser, filter and dryer.

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.

€199.90 Tax included

Price may vary according to your VAT rate

Last items in stock Fast delivery

Add product to favorites

2-year warranty

No instructions, no return of the old

Secure payments

Reference

090305024	PSH
2483000940	Denso
2483001920	Denso
3D0820803A	Volkswagen AG
3D0820803B	Volkswagen AG
3D0820803G	Volkswagen AG
3D0820803H	Volkswagen AG
3D0820803J	Volkswagen AG
3D0820803M	Volkswagen AG
3D0820803P	Volkswagen AG
3D0820803R	Volkswagen AG
3D0820803T	Volkswagen AG
3D0820805C	Volkswagen AG
4371005460	Denso
4471503660	Denso
4471902110	Denso
4471904690	Denso
4471907560	Denso
4471908950	Denso
4472600340	Denso
4472600840	Denso
4472601600	Denso
4472601970	Denso
70817141	Mahle
ACC11423	WAI
ACE32021	Edge
ACP565000P	Mahle
DCP32021	Denso
K15246	Meat & Doria
KSB246D	Meat & Doria

Features

Brand +Line

Pulley information
Pulley Grooves	6
Pulley OD mm	110

Unit information
Voltage	12
Family type	7SEU17C
Connector type	PAD

Remarks

IMPORTANT! Oil Filling.
1. Drain the oil from the compressor and measure the amount of oil.
2. Fill with the additional oil quantity and oil type ad required from the vehicle manufacturer. Please be careful not to combine the different kind of oil types.

Misc. information
Oil type	PAG 46
Oil capacity	180ml
Refrigerant	R134a

It is important to replace the filter drier, condenser and expansion valve and flush the circuit when fitting the new air conditioning compressor.

Compressor replacement must be done by following the information issued by the vehicle manufacturer and performed by a professional.

Catalogue information
Remarks	IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.

Garage documents regarding flushing and replacement of condenser, filter and dryer,

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.

NO WARRANTY CAN BE CLAIMED IF THE FILTER/DRYER

IS NOT CHANGED WHEN INSTALLING THE NEW COMPRESSOR

Mounting on

VOLKSWAGEN Phaeton	04-2002 - 04-2005
VOLKSWAGEN Phaeton	04-2003 - 02-2016
VOLKSWAGEN Phaeton	01-2004 - 10-2008
VOLKSWAGEN Phaeton	04-2004 - 04-2007
VOLKSWAGEN Phaeton	04-2005 - 02-2016
VOLKSWAGEN Phaeton	10-2008 - 02-2016
VOLKSWAGEN Phaeton	05-2008 - 02-2016
VOLKSWAGEN Phaeton	05-2007 - 10-2008
VOLKSWAGEN Phaeton	10-2013 - 02-2016

Fiche technique

Condition New

Download

FORMULAIRE GARANTIE COMPRESSEUR

FORMULAIRE GARANTIE EN ANGLAIS

GARANTIEFORMULAR AUF DEUTSCH

MODULO DI GARANZIA IN ITALIANO
