• New

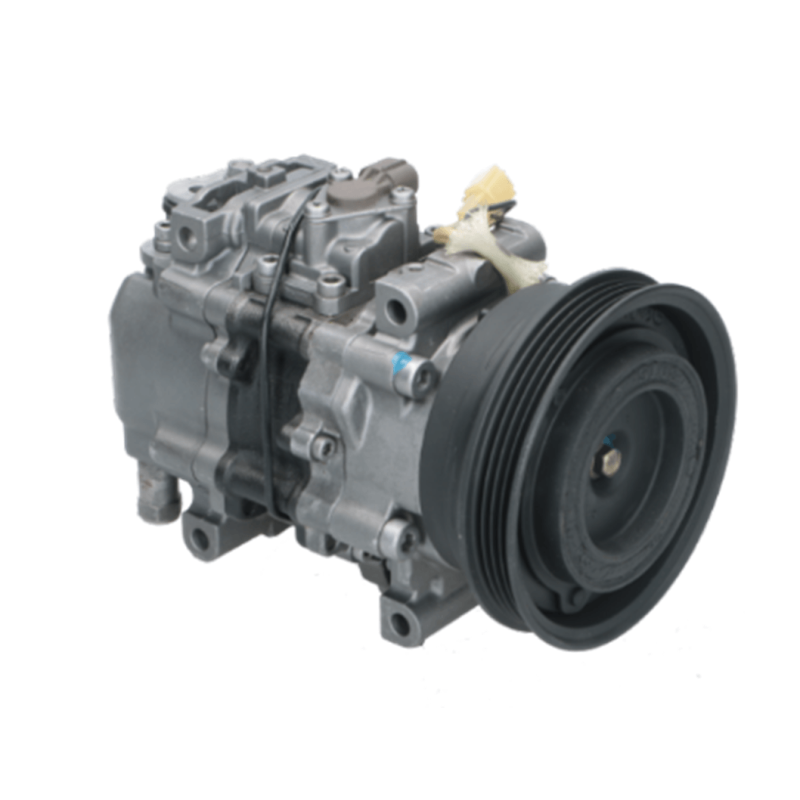

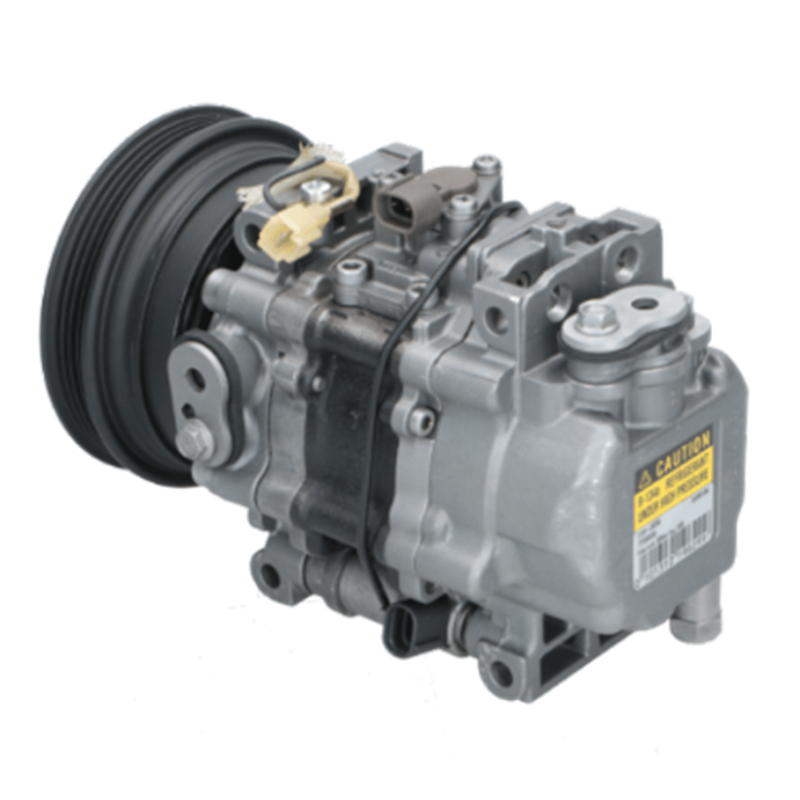

AC compressor replacing 4471000030 / DCP09015 for cars FIAT Punto / FIAT Palio Weekend / FIAT Punto Van
AC compressor replacing 4471000030 / DCP09015 for cars FIAT Punto / FIAT Palio Weekend / FIAT Punto Van
Previous
Next
AC compressor replacing 4471000030 / DCP09015 for cars FIAT Punto / FIAT Palio Weekend / FIAT Punto Van
AC compressor replacing 4471000030 / DCP09015 for cars FIAT Punto / FIAT Palio Weekend / FIAT Punto Van

AC compressor replacing 4471000030 / DCP09015 for cars FIAT Punto / FIAT Palio Weekend / FIAT Punto Van

w090505016050
Air Conditioning Compressor for cars FIAT Palio Weekend / FIAT Punto et FIAT Punto Van

To find the correct replacement part, it is important to compare your part number with those listed in the product description.
Replacing:

5077706

Fiat Group

50777060

Fiat Group

699288

Valeo

7736928

Fiat Group

Garage documents regarding flushing and replacement of condenser, filter and dryer.

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.

Read more
€328.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Reference

090505016

PSH

240707

HC-Cargo

4471000030

Denso

5077706

Fiat Group

50777060

Fiat Group

699288

Valeo

7736928

Fiat Group

CMP1093

Wood Auto

DCP09015

Denso

K15007

Meat & Doria

WOOCMP1093

Wood Auto

Features

Brand +Line

Pulley information
Pulley Grooves 4
Pulley OD mm 119
Unit information
Voltage 12
Family type TV14EC

Remarks

IMPORTANT! Oil Filling.
1. Drain the oil from the compressor and measure the amount of oil.
2. Fill with the additional oil quantity and oil type ad required from the vehicle manufacturer. Please be careful not to combine the different kind of oil types.

Misc. information
Oil type PAG 46
Oil capacity 150ml
Refrigerant R134a

It is important to replace the filter drier, condenser and expansion valve and flush the circuit when fitting the new air conditioning compressor.

Compressor replacement must be done by following the information issued by the vehicle manufacturer and performed by a professional.

Catalogue information
Remarks IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.



Garage documents regarding flushing and replacement of condenser, filter and dryer,

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.

NO WARRANTY CAN BE CLAIMED IF THE FILTER/DRYER

IS NOT CHANGED WHEN INSTALLING THE NEW COMPRESSOR



Mounting on

FIAT Palio Weekend

06-1996 - 11-2009

FIAT Punto

12-1993 - 02-1997

FIAT Punto

12-1993 - 06-1999

FIAT Punto

11-1996 - 06-1999

FIAT Punto Van

03-1996 - 01-2000

FIAT Punto Van

07-1997 - 07-2000

Fiche technique
