AC compressor replacing 6C1119497AA / TSP0155852 for utility vehicle CITROËN / FIAT / FORD PEUGEOT
AC compressor replacing 6C1119497AA / TSP0155852 for utility vehicle CITROËN / FIAT / FORD PEUGEOT
Previous
Next
AC compressor replacing 6C1119497AA / TSP0155852 for utility vehicle CITROËN / FIAT / FORD PEUGEOT
AC compressor replacing 6C1119497AA / TSP0155852 for utility vehicle CITROËN / FIAT / FORD PEUGEOT

AC compressor replacing 6C1119497AA / TSP0155852 for utility vehicle CITROËN / FIAT / FORD / PEUGEOT

w090595078020

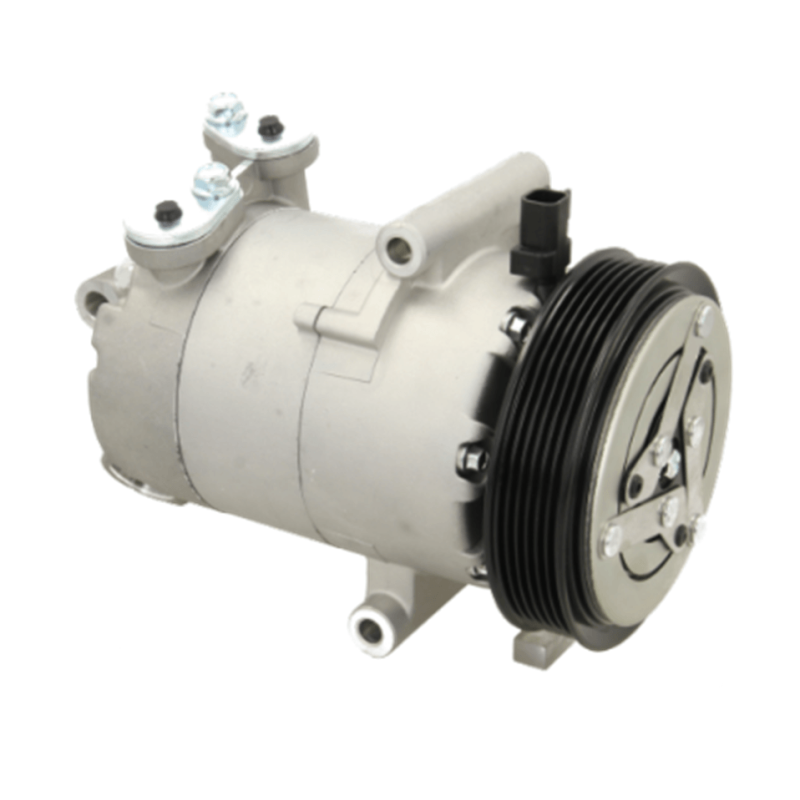

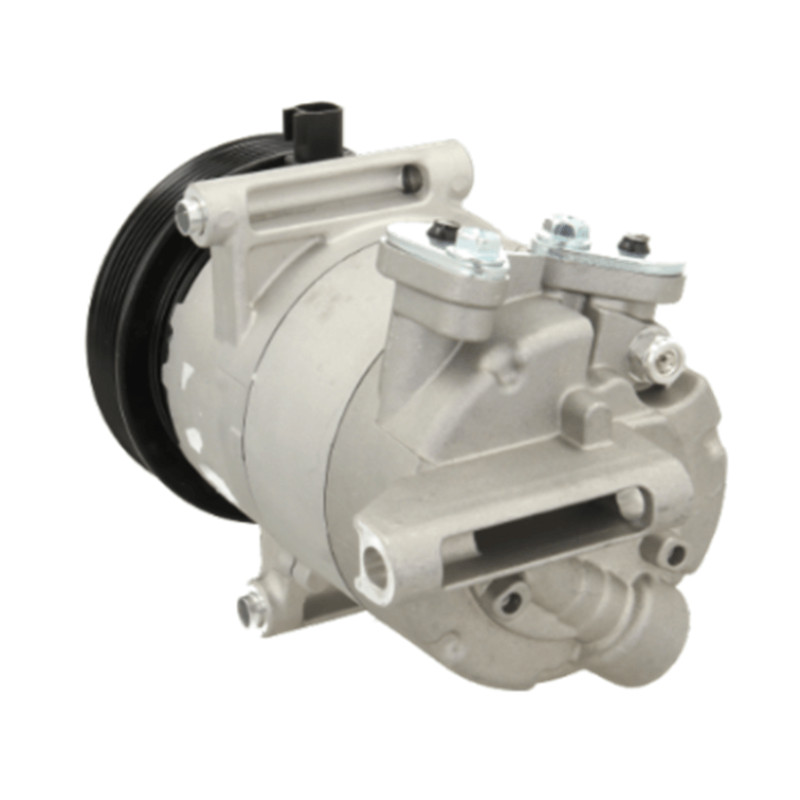

Air Conditioning Compressor for utility vehicle CITROËN Jumper / FIAT Ducato 30 / FORD Transit 260 / FORD Transit 280 / FORD Transit 300 / FORD Transit Tourneo / PEUGEOT Boxer

To find the correct replacement part, it is important to compare your part number with those listed in the product description.
Replacing:

70818016

Mahle

71789742

Fiat Group

71789744

Fiat Group

813740

Valeo

Garage documents regarding flushing and replacement of condenser, filter and dryer.

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.

Read more
€249.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Reference

00000006453SS

PSA

090595078

PSH

1016001039

Visteon

1358920

Ford

1371569

Ford

1385920

Ford

1421334

Ford

1429044

Ford

1744933

Ford

1986AD1251

Bosch

6453SR

PSA

6453SS

PSA

6C1119497AA

Ford

6C1119497AB

Ford

6C1119D629AA

Ford

6C1119D629AB

Ford

6C1119D629AC

Ford

6C1119D629AD

Ford

6C1H19D786AA

Ford

70818016

Mahle

71789742

Fiat Group

71789744

Fiat Group

813740

Valeo

9658128580

Fiat Group

ACC11662

WAI

ACP1479000S

Mahle

ACP514

Lucas

K18043

Meat & Doria

K18043A

Meat & Doria

TSP0155852

Delphi

Features

Brand +Line

Pulley information
Pulley Grooves 7
Pulley OD mm 127
Unit information
Voltage 12
Family type VS16
Connector type PAD

Remarks

IMPORTANT! Oil Filling.
1. Drain the oil from the compressor and measure the amount of oil.
2. Fill with the additional oil quantity and oil type ad required from the vehicle manufacturer. Please be careful not to combine the different kind of oil types.

Misc. information
Oil type PAG 46
Oil capacity 200ml
Refrigerant R134a

It is important to replace the filter drier, condenser and expansion valve and flush the circuit when fitting the new air conditioning compressor.

Compressor replacement must be done by following the information issued by the vehicle manufacturer and performed by a professional.

Catalogue information
Remarks IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.



Garage documents regarding flushing and replacement of condenser, filter and dryer,

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.

NO WARRANTY CAN BE CLAIMED IF THE FILTER/DRYER

IS NOT CHANGED WHEN INSTALLING THE NEW COMPRESSOR



Mounting on

CITROËN Jumper

03-2006 - Aujourd'hui

CITROËN Jumper

03-2006 - 11-2016

CITROËN Jumper

03-2006 - 11-2012

CITROËN Jumper

03-2006 - 11-2016

CITROËN Jumper

03-2006 - Aujourd'hui

CITROËN Jumper

06-2006 - 11-2016

FIAT Ducato 30

06-2006 - 04-2011

FIAT Ducato 30

07-2006 - 04-2011

FIAT Ducato 30

06-2006 - 04-2011

FORD Transit 260

03-2006 - 07-2014

FORD Transit 260

03-2006 - 07-2014

FORD Transit 260

03-2006 - 07-2014

FORD Transit 260

08-2007 - 07-2014

FORD Transit 260

09-2008 - 07-2014

FORD Transit 280

03-2006 - 07-2014

FORD Transit 280

03-2006 - 07-2014

FORD Transit 280

03-2006 - 07-2014

FORD Transit 280

08-2007 - 07-2014

FORD Transit 280

09-2008 - 07-2014

FORD Transit 300

03-2006 - 07-2014

FORD Transit 300

03-2006 - 07-2014

FORD Transit 300

03-2006 - 07-2014

FORD Transit 300

08-2007 - 07-2014

FORD Transit 300

09-2008 - 07-2014

FORD Transit Tourneo

06-2006 - 07-2014

FORD Transit Tourneo

06-2006 - 07-2014

FORD Transit Tourneo

08-2007 - 07-2014

FORD Transit Tourneo

09-2008 - 07-2014

PEUGEOT Boxer

02-2011 - 11-2020

PEUGEOT Boxer

02-2011 - Aujourd'hui

PEUGEOT Boxer

02-2011 - 11-2020

PEUGEOT Boxer

02-2011 - Aujourd'hui

PEUGEOT Boxer

02-2011 - 11-2020

PEUGEOT Boxer

03-2006 - Aujourd'hui

PEUGEOT Boxer

03-2006 - Aujourd'hui

PEUGEOT Boxer

03-2006 - 11-2016

PEUGEOT Boxer

06-2006 - Aujourd'hui

PEUGEOT Boxer

03-2006 - 11-2016

PEUGEOT Boxer

03-2006 - Aujourd'hui

PEUGEOT Boxer

03-2006 - 11-2016
