AC compressor replacing SD7V166209 / SD7V161145 van and utility vehicle VOLKSWAGEN
AC compressor replacing SD7V166209 / SD7V161145 van and utility vehicle VOLKSWAGEN

AC compressor replacing SD7V166209 / SD7V161145 van and utility vehicle VOLKSWAGEN

w090305051876

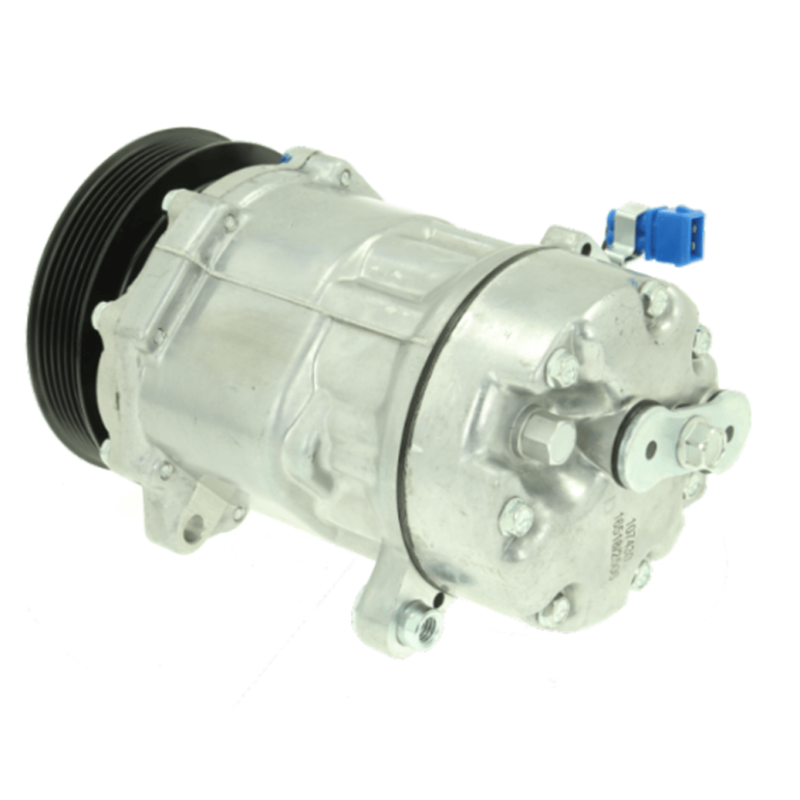

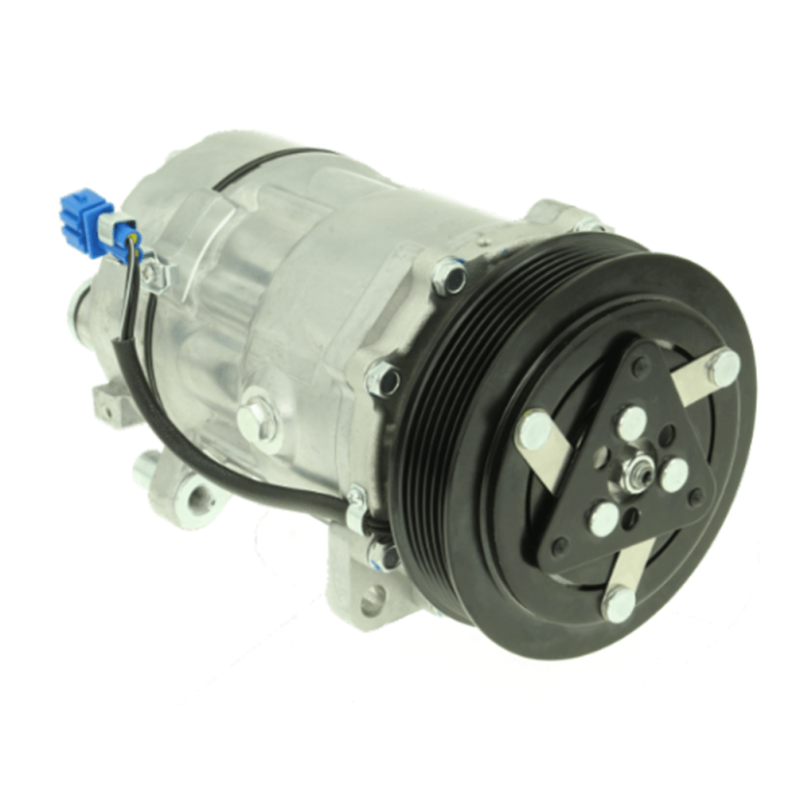

Air Conditioning Compressor for van and utility vehicle VOLKSWAGEN California / Campmobile / Caravelle / Transporter

To find the correct replacement part, it is important to compare your part number with those listed in the product description.
Replacing:

ACP1017000P

Mahle

ACP1017000S

Mahle

ACP202

Lucas

SD7V161118

Sanden

SD7V161119

Sanden

Garage documents regarding flushing and replacement of condenser, filter and dryer.

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.

Read more
€218.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Reference

090305051

PSH

1118

Sanden

1119

Sanden

1145

Sanden

240093

HC-Cargo

6205

Sanden

6209

Sanden

699117

Valeo

699617

Valeo

699652

Valeo

701820805Q

Volkswagen AG

701820805R

Volkswagen AG

70817639

Mahle

70817640

Mahle

7D0820805

Volkswagen AG

AC111

HC-Parts

ACC11431

WAI

ACP1017000P

Mahle

ACP1017000S

Mahle

ACP202

Lucas

SD7V161118

Sanden

SD7V161119

Sanden

SD7V161145

Sanden

SD7V166209

Sanden

TSP0155237

Delphi

TSP0155381

Delphi

TSP0159237

Delphi

TSP0159381

Delphi

Features

Brand +Line

Pulley information
Pulley Grooves 6
Pulley OD mm 128
Unit information
Voltage 12
Family type SD7H16
Connector type H/PAD

Remarks

IMPORTANT! Oil Filling.
1. Drain the oil from the compressor and measure the amount of oil.
2. Fill with the additional oil quantity and oil type ad required from the vehicle manufacturer. Please be careful not to combine the different kind of oil types.

Misc. information
Oil type PAG 46
Oil capacity 135ml
Refrigerant R134a

It is important to replace the filter drier, condenser and expansion valve and flush the circuit when fitting the new air conditioning compressor.

Compressor replacement must be done by following the information issued by the vehicle manufacturer and performed by a professional.

Catalogue information
Remarks IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.



Garage documents regarding flushing and replacement of condenser, filter and dryer,

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.

NO WARRANTY CAN BE CLAIMED IF THE FILTER/DRYER

IS NOT CHANGED WHEN INSTALLING THE NEW COMPRESSOR



Mounting on

VOLKSWAGEN California

08-1995 - 03-2003

VOLKSWAGEN Campmobile

08-1990 - 04-1998

VOLKSWAGEN Caravelle

07-1992 - 08-1998

VOLKSWAGEN Caravelle

10-1992 - 07-1996

VOLKSWAGEN Caravelle

12-1995 - 03-2003

VOLKSWAGEN Transporter

08-1990 - 03-1998

VOLKSWAGEN Transporter

12-1995 - 10-2001

VOLKSWAGEN Transporter

02-1992 - 04-2000

VOLKSWAGEN Transporter

08-1990 - 04-1999

VOLKSWAGEN Transporter

10-1992 - 10-2001

VOLKSWAGEN Transporter

02-1992 - 04-2000

VOLKSWAGEN Transporter

06-1994 - 03-2003

VOLKSWAGEN Transporter

07-1995 - 05-2003

VOLKSWAGEN Transporter

07-1995 - 03-2003
