Air Conditioning
AC compressor replacing 4471609060 / ACP1750000S
€279.90

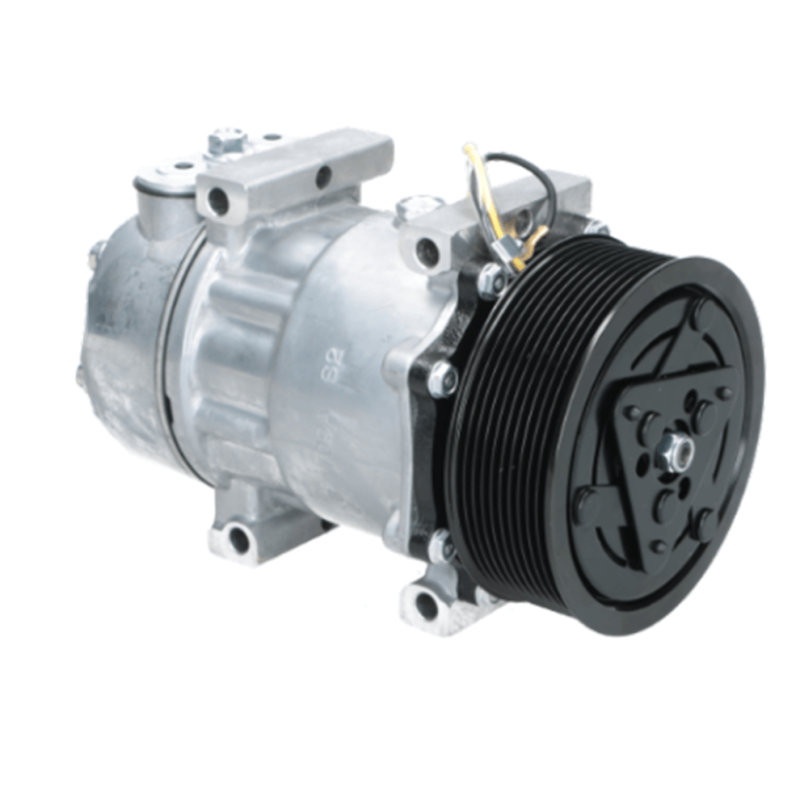

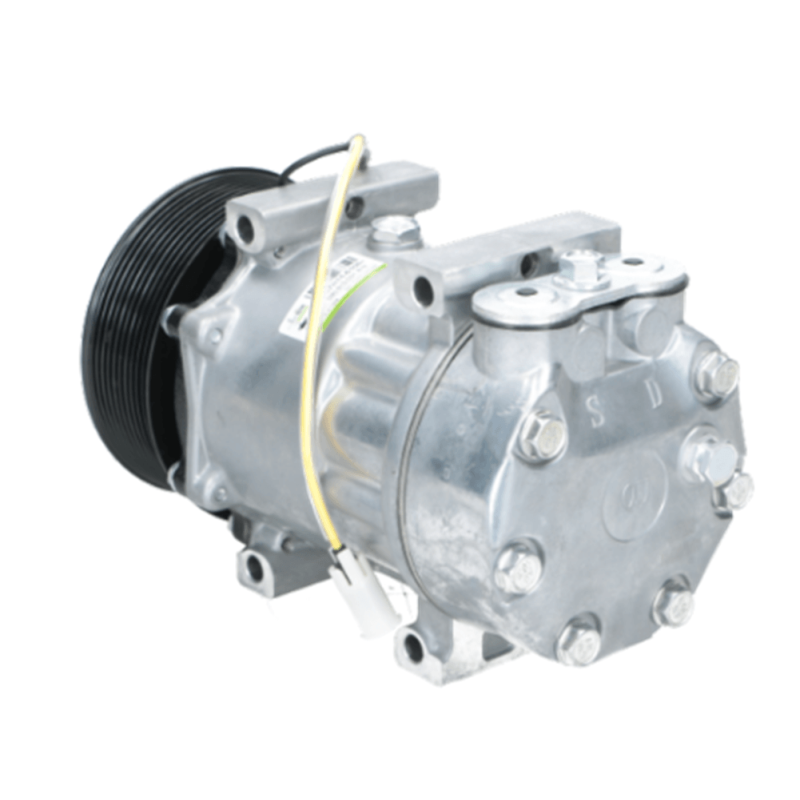

AC compressor replacing SD7H156106 / SD7H157590 for trucks RENAULT TRUCKS and VOLVO TRUCKS
w090815031876
Air Conditioning Compressor for trucks RENAULT TRUCKS C250 / C280 / C320 / D210 / D240 / D250 / D280 / D320 / et VOLVO FE 250 / FE 280 / FE 320 / FL 210 / FL 240 / FL 250 / FL 280 .
To find the correct replacement part, it is important to compare your part number with those listed in the product description.
Replacing:
|
6106 |
Sanden |
|---|---|
|
70817122 |
Mahle |
|
7482436934 |
Renault |
|
7590 |
Sanden |
Garage documents regarding flushing and replacement of condenser, filter and dryer.
Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.
Reference
|
090815031 |
PSH |
|---|---|
|
6106 |
Sanden |
|
70817122 |
Mahle |
|
7482436934 |
Renault |
|
7590 |
Sanden |
|
78522505 |
Volvo |
|
82436934 |
Volvo |
|
ACC11730 |
WAI |
|
ACP546000P |
Mahle |
|
K11528 |
Meat & Doria |
|
SD7H156106 |
Sanden |
|
SD7H157590 |
Sanden |
Features
Brand +Line
Pulley information |
|
|---|---|
| Pulley Grooves | 10 |
| Pulley OD mm | 125 |
Unit information |
|
|---|---|
| Voltage | 12 |
| Family type | SD7H15 |
| Connector type | PAD |
Remarks
IMPORTANT! Oil Filling.
1. Drain the oil from the compressor and measure the amount of oil.
2. Fill with the additional oil quantity and oil type ad required from the vehicle manufacturer. Please be careful not to combine the different kind of oil types.
Misc. information |
|
|---|---|
| Oil type | PAG 100 |
| Oil capacity | 200ml |
| Refrigerant | R134a |
It is important to replace the filter drier, condenser and expansion valve and flush the circuit when fitting the new air conditioning compressor.
Compressor replacement must be done by following the information issued by the vehicle manufacturer and performed by a professional.
Catalogue information |
|
|---|---|
| Remarks | IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types. |
Garage documents regarding flushing and replacement of condenser, filter and dryer,
Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.
NO WARRANTY CAN BE CLAIMED IF THE FILTER/DRYER
IS NOT CHANGED WHEN INSTALLING THE NEW COMPRESSOR
Mounting on
|
RENAULT TRUCKS C250 |
06-2013 - today |
|---|---|
|
RENAULT TRUCKS C250 |
06-2013 - today |
|
RENAULT TRUCKS C250 |
06-2013 - today |
|
RENAULT TRUCKS C250 |
06-2013 - today |
|
RENAULT TRUCKS C280 |
06-2013 - today |
|
RENAULT TRUCKS C280 |
06-2013 - today |
|
RENAULT TRUCKS C280 |
06-2013 - today |
|
RENAULT TRUCKS C280 |
06-2013 - today |
|
RENAULT TRUCKS C280 |
06-2013 - today |
|
RENAULT TRUCKS C280 |
06-2013 - today |
|
RENAULT TRUCKS C320 |
06-2013 - today |
|
RENAULT TRUCKS C320 |
06-2013 - today |
|
RENAULT TRUCKS C320 |
06-2013 - today |
|
RENAULT TRUCKS C320 |
06-2013 - today |
|
RENAULT TRUCKS C320 |
06-2013 - today |
|
RENAULT TRUCKS C320 |
06-2013 - today |
|
RENAULT TRUCKS D210 |
06-2013 - today |
|
RENAULT TRUCKS D210 |
06-2013 - today |
|
RENAULT TRUCKS D210 |
06-2013 - today |
|
RENAULT TRUCKS D210 |
06-2013 - today |
|
RENAULT TRUCKS D210 |
06-2013 - today |
|
RENAULT TRUCKS D210 |
06-2013 - today |
|
RENAULT TRUCKS D240 |
06-2013 - today |
|
RENAULT TRUCKS D240 |
06-2013 - today |
|
RENAULT TRUCKS D240 |
06-2013 - today |
|
RENAULT TRUCKS D240 |
06-2013 - today |
|
RENAULT TRUCKS D240 |
06-2013 -today |
|
RENAULT TRUCKS D240 |
06-2013 - today |
|
RENAULT TRUCKS D250 |
06-2013 - today |
|
RENAULT TRUCKS D250 |
06-2013 -today |
|
RENAULT TRUCKS D250 |
06-2013 - today |
|
RENAULT TRUCKS D250 |
06-2013 -today |
|
RENAULT TRUCKS D250 |
06-2013 - today |
|
RENAULT TRUCKS D250 |
06-2013 - today |
|
RENAULT TRUCKS D250 |
06-2013 - today |
|
RENAULT TRUCKS D250 |
06-2013 - today |
|
RENAULT TRUCKS D250 |
06-2013 - today |
|
RENAULT TRUCKS D250 |
06-2013 - today |
|
RENAULT TRUCKS D250 |
06-2013 - today |
|
RENAULT TRUCKS D250 |
06-2013 - today |
|
RENAULT TRUCKS D250 |
06-2013 - today |
|
RENAULT TRUCKS D250 |
06-2013 - todayi |
|
RENAULT TRUCKS D250 |
06-2013 - today |
|
RENAULT TRUCKS D250 |
06-2013 - today |
|
RENAULT TRUCKS D250 |
06-2013 - today |
|
RENAULT TRUCKS D280 |
06-2013 -today |
|
RENAULT TRUCKS D280 |
06-2013 - today |
|
RENAULT TRUCKS D280 |
06-2013 - today |
|
RENAULT TRUCKS D280 |
06-2013 - today |
|
RENAULT TRUCKS D280 |
06-2013 - Today |
|
RENAULT TRUCKS D280 |
06-2013 - Today |
|
RENAULT TRUCKS D280 |
06-2013 - Today |
|
RENAULT TRUCKS D280 |
06-2013 - Today |
|
RENAULT TRUCKS D280 |
06-2013 - Today |
|
RENAULT TRUCKS D280 |
06-2013 - Today |
|
RENAULT TRUCKS D280 |
06-2013 - Today |
|
RENAULT TRUCKS D280 |
06-2013 - Today |
|
RENAULT TRUCKS D280 |
06-2013 - Today |
|
RENAULT TRUCKS D280 |
06-2013 - Today |
|
RENAULT TRUCKS D280 |
06-2013 - Today |
|
RENAULT TRUCKS D280 |
06-2013 - Today |
|
RENAULT TRUCKS D280 |
06-2013 - Today |
|
RENAULT TRUCKS D280 |
06-2013 - Today |
|
RENAULT TRUCKS D280 |
06-2013 - Today |
|
RENAULT TRUCKS D320 |
06-2013 - Today |
|
RENAULT TRUCKS D320 |
06-2013 - Today |
|
RENAULT TRUCKS D320 |
06-2013 - Today |
|
RENAULT TRUCKS D320 |
06-2013 - Today |
|
RENAULT TRUCKS D320 |
06-2013 - Today |
|
RENAULT TRUCKS D320 |
06-2013 - Today |
|
RENAULT TRUCKS D320 |
06-2013 - Today |
|
RENAULT TRUCKS D320 |
06-2013 - Today |
|
RENAULT TRUCKS D320 |
06-2013 - Today |
|
RENAULT TRUCKS D320 |
06-2013 - Today |
|
VOLVO FE 250 |
04-2013 - Today |
|
VOLVO FE 250 |
04-2013 - Today |
|
VOLVO FE 250 |
04-2013 - Today |
|
VOLVO FE 250 |
04-2013 - Today |
|
VOLVO FE 250 |
04-2013 - Today |
|
VOLVO FE 280 |
04-2013 - Today |
|
VOLVO FE 280 |
04-2013 - Today |
|
VOLVO FE 280 |
04-2013 - Today |
|
VOLVO FE 280 |
04-2013 - Today |
|
VOLVO FE 280 |
04-2013 - Today |
|
VOLVO FE 280 |
04-2013 - Today |
|
VOLVO FE 280 |
04-2013 - Today |
|
VOLVO FE 320 |
04-2013 - Today |
|
VOLVO FE 320 |
04-2013 - Today |
|
VOLVO FE 320 |
04-2013 - Today |
|
VOLVO FE 320 |
04-2013 - Today |
|
VOLVO FE 320 |
04-2013 - Today |
|
VOLVO FE 320 |
04-2013 - Today |
|
VOLVO FE 320 |
04-2013 - Today |
|
VOLVO FL 210 |
04-2013 - Today |
|
VOLVO FL 210 |
04-2013 - Today |
|
VOLVO FL 210 |
04-2013 - Today |
|
VOLVO FL 210 |
04-2013 - Today |
|
VOLVO FL 210 |
04-2013 - Today |
|
VOLVO FL 240 |
04-2013 - Today |
|
VOLVO FL 240 |
04-2013 - Today |
|
VOLVO FL 240 |
04-2013 - Today |
|
VOLVO FL 240 |
04-2013 - Today |
|
VOLVO FL 240 |
04-2013 - Today |
|
VOLVO FL 250 |
04-2013 - Today |
|
VOLVO FL 250 |
04-2013 - Today |
|
VOLVO FL 250 |
04-2013 - Today |
|
VOLVO FL 250 |
04-2013 - Today |
|
VOLVO FL 250 |
04-2013 - Today |
|
VOLVO FL 250 |
04-2013 - Today |
|
VOLVO FL 250 |
04-2013 - Today |
|
VOLVO FL 250 |
04-2013 - Today |
|
VOLVO FL 280 |
04-2013 - Today |
|
VOLVO FL 280 |
04-2013 - Today |
|
VOLVO FL 280 |
04-2013 - Today |
|
VOLVO FL 280 |
04-2013 - Today |
|
VOLVO FL 280 |
04-2013 - Today |
|
VOLVO FL 280 |
04-2013 - Today |
|
VOLVO FL 280 |
04-2013 - Today |
|
VOLVO FL 280 |
04-2013 - Today |
Fiche technique
