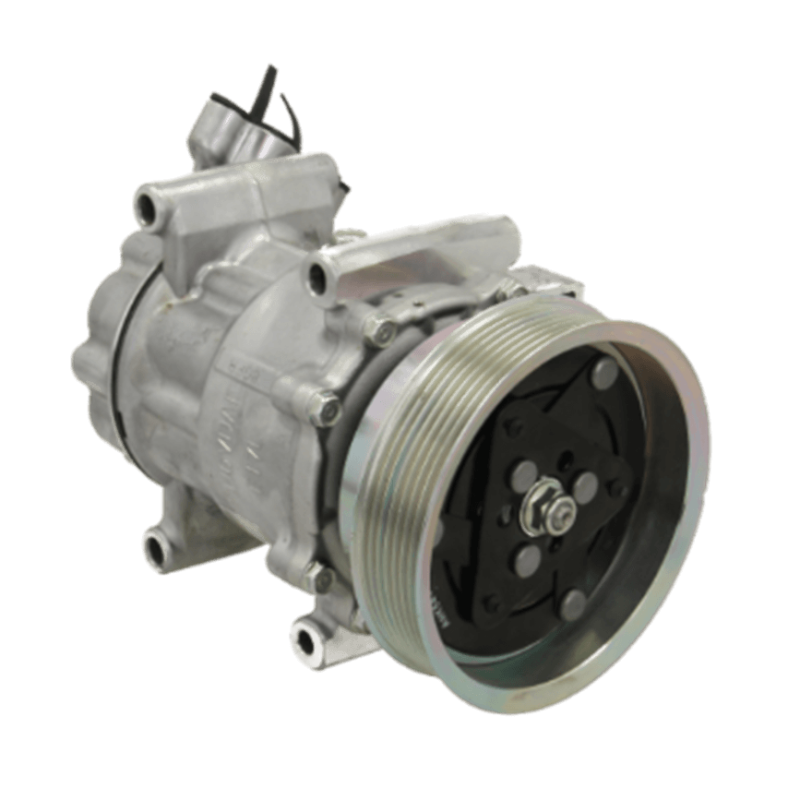

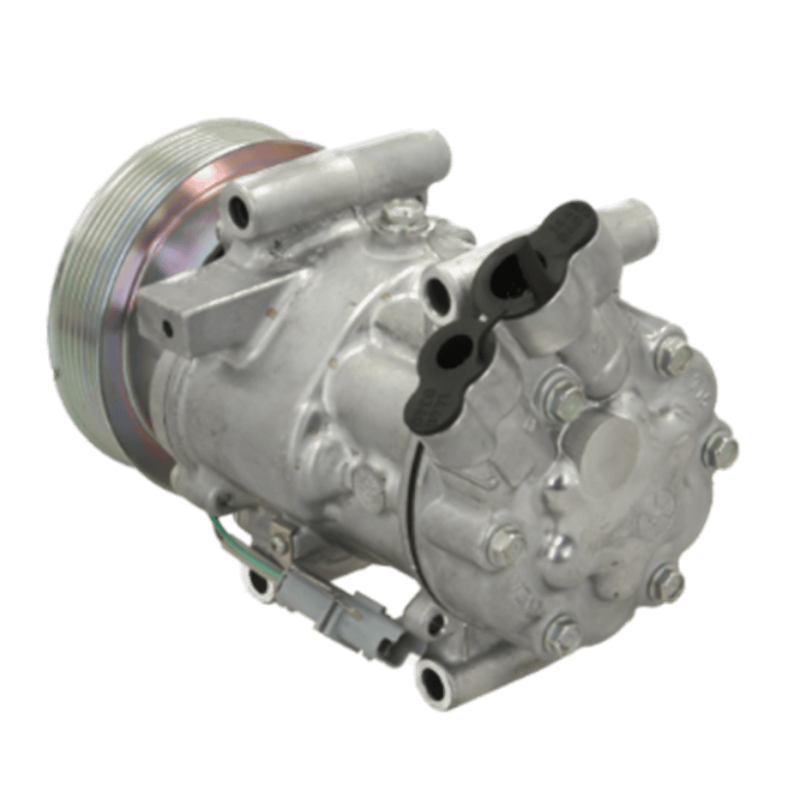

AC compressor replacing SD6V121446 / SD6V121904
AC compressor replacing SD6V121446 / SD6V121904
Previous
Next
AC compressor replacing SD6V121446 / SD6V121904
AC compressor replacing SD6V121446 / SD6V121904

AC compressor replacing SD6V121446 / SD6V121904

w090575052876
Replacing:

ACP1278000P

Mahle

ACP550

Lucas

SD6V121446

Sanden

SD6V121904

Sanden

TSP0155491

Delphi



Garage documents regarding flushing and replacement of condenser, filter and dryer.

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.

Read more
€249.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Références

090575052

PSH

1446

Sanden

1904

Sanden

240933

HC-Cargo

2763000Q1M

Nissan

70817953

Mahle

7711368902

Renault

813132

Valeo

813632

Valeo

8200357173

Renault

8200578856

Renault

8200756601

Renault

8200819568

Renault

ACP1278000P

Mahle

ACP550

Lucas

SD6V121446

Sanden

SD6V121904

Sanden

TSP0155491

Delphi

Features

Brand + Line
Pulley information
Pulley Grooves 7
Pulley OD mm 125
Unit information
Voltage 12
Family type SD6V12

Remarks

IMPORTANT! Oil Filling.
1. Drain the oil from the compressor and measure the amount of oil.
2. Fill with the additional oil quantity and oil type ad required from the vehicle manufacturer. Please be careful not to combine the different kind of oil types.

Misc. information
Oil type PAG 46
Oil capacity 135ml
Refrigerant R134a

It is important to replace the filter drier, condenser and expansion valve and flush the circuit when fitting the new air conditioning compressor.

Compressor replacement must be done by following the information issued by the vehicle manufacturer and performed by a professional.

Catalogue information
Remarks IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.



Garage documents regarding flushing and replacement of condenser, filter and dryer,

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.

NO WARRANTY CAN BE CLAIMED IF THE FILTER/DRYER

IS NOT CHANGED WHEN INSTALLING THE NEW COMPRESSOR



Fiche technique

New

Download

COMPRESSOR WARRANTY FORM

To be added: Garage documents concerning rinsing and replacement of condenser, filter and dryer. Without these documents, the manufacturer will SYSTEMATICALLY refuse the warranty claim. In the event of rejection, a basic examination fee of €85 will be charged.
