Pay in 4 installments free of charge for purchases from €30 to €2,000

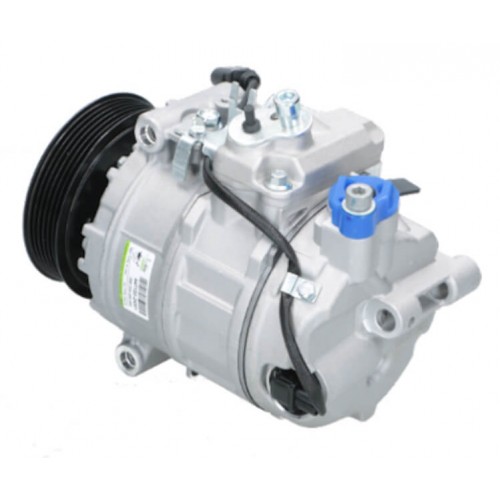

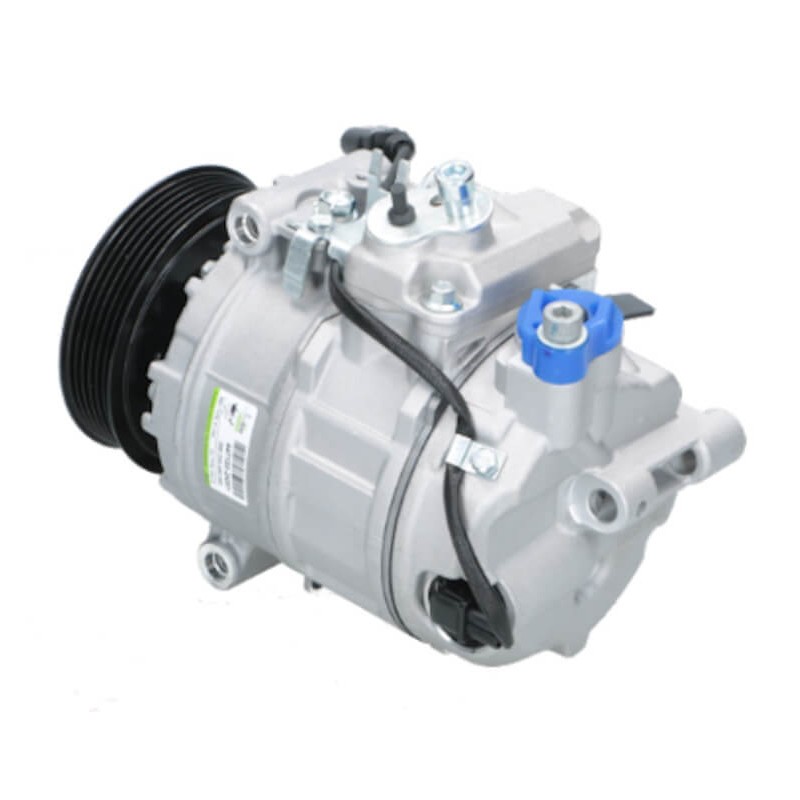

AC compressor replacing 4471502450 / DCP02096 / ACP512000P

w090205056050

New product

1 Item

Replacing:
4371007490Denso
4471502452Denso
4472604300Denso
70817088Mahle

Garage documents regarding flushing and replacement of condenser, filter and dryer.

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.

228,90 € Inc VAT

More info

Brand +Line

Pulley information
Pulley Grooves6
Pulley OD mm125
Unit information
Voltage12
Family type6SES14C

Remarks

IMPORTANT! Oil Filling.
1. Drain the oil from the compressor and measure the amount of oil.
2. Fill with the additional oil quantity and oil type ad required from the vehicle manufacturer. Please be careful not to combine the different kind of oil types.

Misc. information
Oil typePAG 46
Oil capacity110ml
RefrigerantR134a

It is important to replace the filter drier, condenser and expansion valve and flush the circuit when fitting the new air conditioning compressor.

Compressor replacement must be done by following the information issued by the vehicle manufacturer and performed by a professional.

Catalogue information
RemarksIMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.



Garage documents regarding flushing and replacement of condenser, filter and dryer,

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.



NO WARRANTY CAN BE CLAIMED IF THE FILTER/DRYER

IS NOT CHANGED WHEN INSTALLING THE NEW COMPRESSOR

Replacing:

0301K701Van Wezel
090205056PSH
320051GNRF
4371007490Denso
4471502450Denso
4471502452Denso
4472604300Denso
70817088Mahle
7L6820808Volkswagen AG
814848Valeo
8FK351003401Mahle Behr
AC154066Short code
AC154417Short code
AC171101Short code
ACP512000PMahle
AIK398AVA Quality Cooling
DCP02096Denso

Download

COMPRESSOR WARRANTY FORM

To be added: Garage documents concerning rinsing and replacement of condenser, filter and dryer. Without these documents, the manufacturer will SYSTEMATICALLY refuse the warranty claim. In the event of rejection, a basic examination fee of €85 will be charged.

Download (584.7k)
