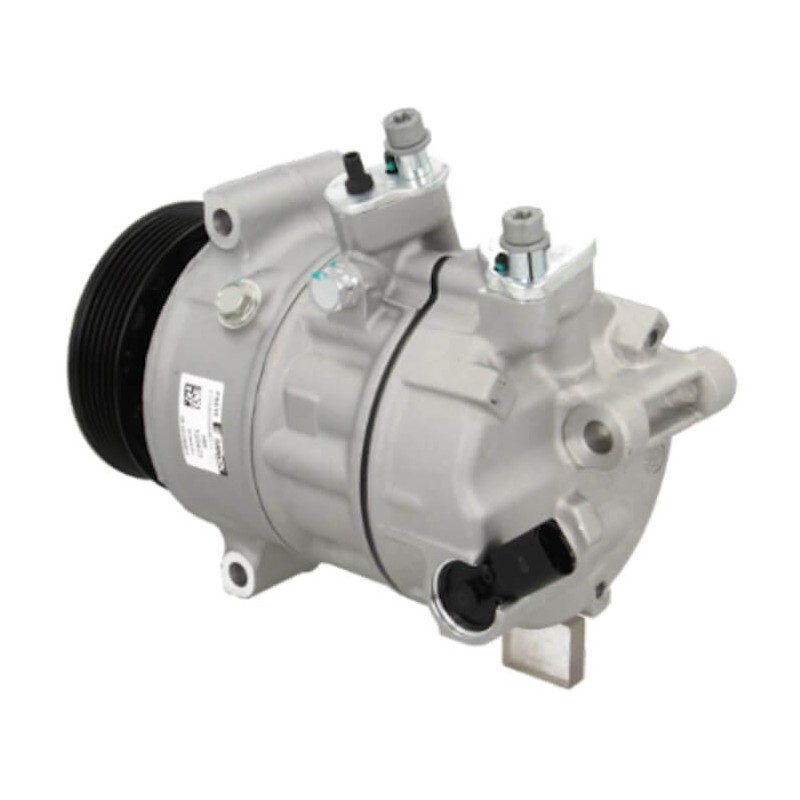

AC compressor SANDEN PXE168420 replacing ACP576000P

w090305046907

New product

1 Item

Replacing:
PXE168443PSanden
PXE168765Sanden
PXE168784Sanden

Garage documents regarding flushing and replacement of condenser, filter and dryer.

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.

369,90 € Inc VAT

More info

Brand SANDEN
Pulley information
Pulley Grooves6
Pulley OD mm110.00
Unit information
Voltage12
Family typePXE16

Remarks

IMPORTANT! Oil Filling.
1. Drain the oil from the compressor and measure the amount of oil.
2. Fill with the additional oil quantity and oil type ad required from the vehicle manufacturer. Please be careful not to combine the different kind of oil types.

Misc. information
Oil typePAG 46 SP-A2
Oil capacity60 ml
RefrigerantR 134a

It is important to replace the filter drier, condenser and expansion valve and flush the circuit when fitting the new air conditioning compressor.

Compressor replacement must be done by following the information issued by the vehicle manufacturer and performed by a professional.

Catalogue information
RemarksIMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.



Garage documents regarding flushing and replacement of condenser, filter and dryer,

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.



NO WARRANTY CAN BE CLAIMED IF THE FILTER/DRYER

IS NOT CHANGED WHEN INSTALLING THE NEW COMPRESSOR

Replacing:

090305046PSH
104221Airstal
320043GNRF
511158Elstock
700511158DRI
70817152Mahle
7E0816803BVolkswagen AG
7E0816803FVolkswagen AG
7E0816803GVolkswagen AG
7E0816803HVolkswagen AG
7E0820808AVolkswagen AG
7E0820808BVolkswagen AG
8420Sanden
8443PSanden
8765Sanden
8784Sanden
8FK351007031Mahle Behr
92020332Frigair
AC01160TMI
AC153457Short code
AC154615Short code
AC170151Short code
ACP01257Lucas
ACP576000PMahle
KTT090413Thermotec
PXE168420Sanden
PXE168443PSanden
PXE168765Sanden
PXE168784Sanden

Download

COMPRESSOR WARRANTY FORM

To be added: Garage documents concerning rinsing and replacement of condenser, filter and dryer. Without these documents, the manufacturer will SYSTEMATICALLY refuse the warranty claim. In the event of rejection, a basic examination fee of €85 will be charged.

Download (584.7k)
