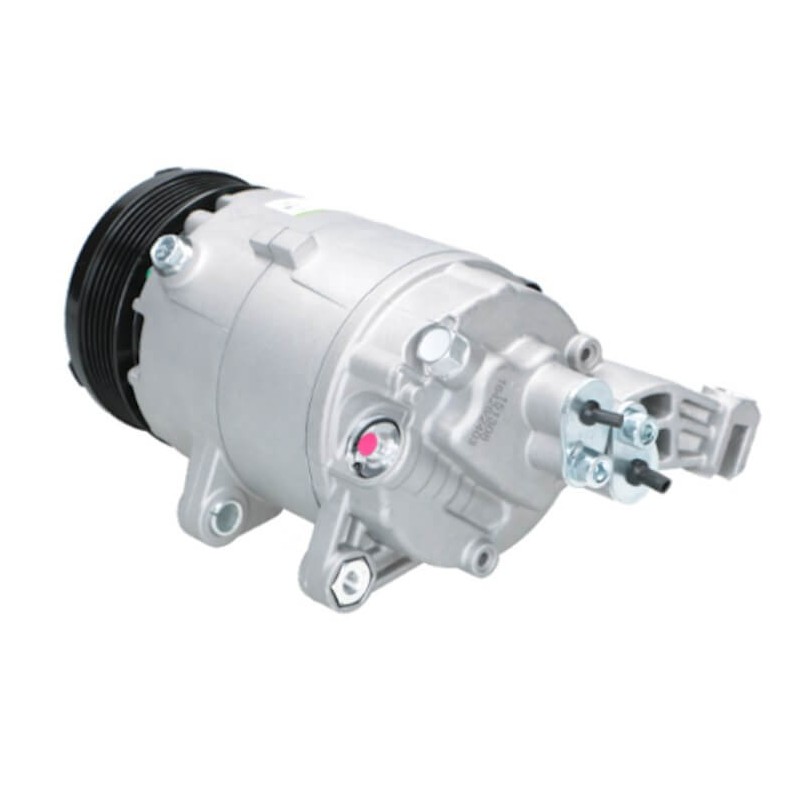

AC compressor replacing TSP0155308 / ACP32000P
| 64521171210 | BMW |
| 64521171310 | BMW |
| 64526918122 | BMW |
| 6918122 | BMW |
| 72440472 | Mahle |
Garage documents regarding flushing and replacement of condenser, filter and dryer.
Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.
More info
Pulley information | |
|---|---|
| Pulley Grooves | 6 |
| Pulley OD mm | 105.00 |
Unit information | |
|---|---|
| Voltage | 12 |
| Family type | CVC |
Remarks
IMPORTANT! Oil Filling.
1. Drain the oil from the compressor and measure the amount of oil.
2. Fill with the additional oil quantity and oil type ad required from the vehicle manufacturer. Please be careful not to combine the different kind of oil types.
Misc. information | |
|---|---|
| Oil type | PAG 46 |
| Oil capacity | 140 ml |
| Refrigerant | R134a |
It is important to replace the filter drier, condenser and expansion valve and flush the circuit when fitting the new air conditioning compressor.
Compressor replacement must be done by following the information issued by the vehicle manufacturer and performed by a professional.
Catalogue information | |
|---|---|
| Remarks | IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types. |
Garage documents regarding flushing and replacement of condenser, filter and dryer,
Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.
NO WARRANTY CAN BE CLAIMED IF THE FILTER/DRYER
IS NOT CHANGED WHEN INSTALLING THE NEW COMPRESSOR
Replacing:
| 01139014 | BMW |
| 01139015 | BMW |
| 0155308 | BMW |
| 0600K076 | Van Wezel |
| 090445001 | PSH |
| 090455029 | PSH old |
| 1139014 | BMW |
| 1139015 | BMW |
| 11645610 | BMW |
| 1171310 | BMW |
| 21000180 | LKQ |
| 240694 | Cargo |
| 32409 | NRF |
| 510242 | Elstock |
| 64521171210 | BMW |
| 64521171310 | BMW |
| 64526918122 | BMW |
| 6918122 | BMW |
| 72440472 | Mahle |
| 72440476 | Mahle |
| 89340 | Nissens |
| 8FK351135101 | Mahle Behr |
| 8FK351135601 | Mahle Behr |
| AC00244 | TMI |
| AC153157 | Short code |
| AC154487 | Short code |
| AC169589 | Short code |
| ACP32000P | Mahle |
| ACP32000S | Mahle |
| BWAK076 | AVA Quality Cooling |
| CAC75070 | Casco |
| CAC75070AS | Casco |
| CAC75070GS | Casco |
| CS20066 | Delphi |
| TSP0155308 | Delphi |
