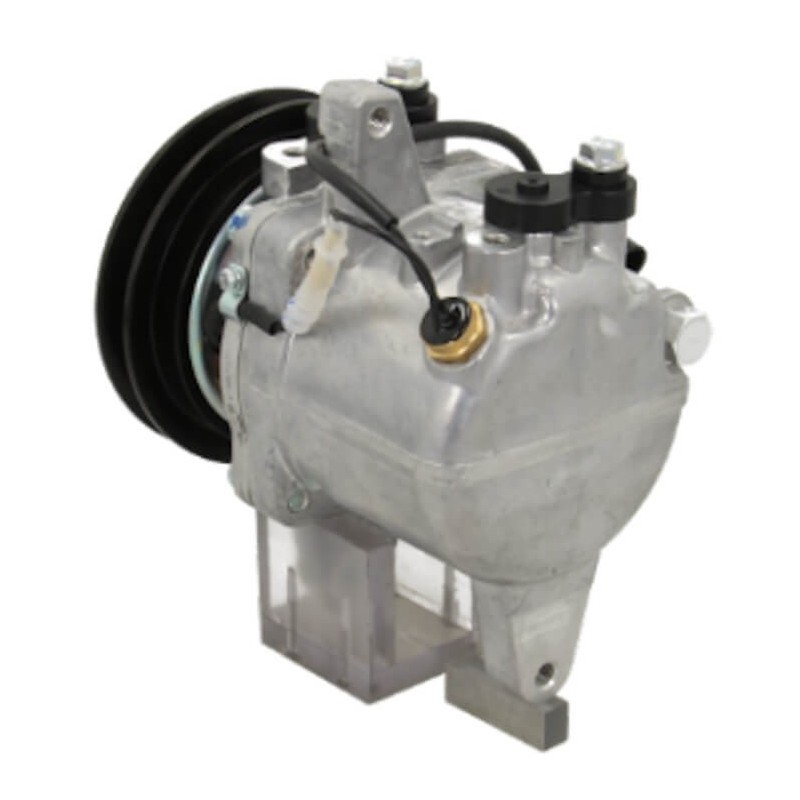

AC compressor replacing DCP99830 / ACP01331 / 511232 / 4472605781

w090995001050

New product

1 Item

Replacing:
90995001PSH
2473004980Denso
3C58150062Kubota
4471906270Denso
4471906271Denso
4471906280Denso

Garage documents regarding flushing and replacement of condenser, filter and dryer.

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.

319,90 € Inc VAT

More info

Brand +Line

Pulley information
Pulley Grooves1
Pulley OD mm112.00

Remarks

IMPORTANT! Oil Filling.
1. Drain the oil from the compressor and measure the amount of oil.
2. Fill with the additional oil quantity and oil type ad required from the vehicle manufacturer. Please be careful not to combine the different kind of oil types.

Unit information
Voltage12
Family typeSV07E

Misc. information
Oil typePAG 46
RefrigerantR134a

It is important to replace the filter drier, condenser and expansion valve and flush the circuit when fitting the new air conditioning compressor.

Compressor replacement must be done by following the information issued by the vehicle manufacturer and performed by a professional.

Catalogue information
RemarksIMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.



Garage documents regarding flushing and replacement of condenser, filter and dryer,

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.



NO WARRANTY CAN BE CLAIMED IF THE FILTER/DRYER

IS NOT CHANGED WHEN INSTALLING THE NEW COMPRESSOR

Replacing:

090995001PSH
103476Airstal
15409Krios
2473004980Denso
3C58150062Kubota
4471906270Denso
4471906271Denso
4471906280Denso
4472605780Denso
4472605781Denso
511232Elstock
700511232DRI
AC01234TMI
AC153992Short code
AC154383Short code
AC170976Short code
ACP01331Lucas
CAC52041Casco
CAC52041ASCasco
CAC52041GSCasco
DCP99830Denso
EKL36264Euro Klima
KBK004AVA Quality Cooling

Download

COMPRESSOR WARRANTY FORM

To be added: Garage documents concerning rinsing and replacement of condenser, filter and dryer. Without these documents, the manufacturer will SYSTEMATICALLY refuse the warranty claim. In the event of rejection, a basic examination fee of €85 will be charged.

Download (584.7k)
